Features
– Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

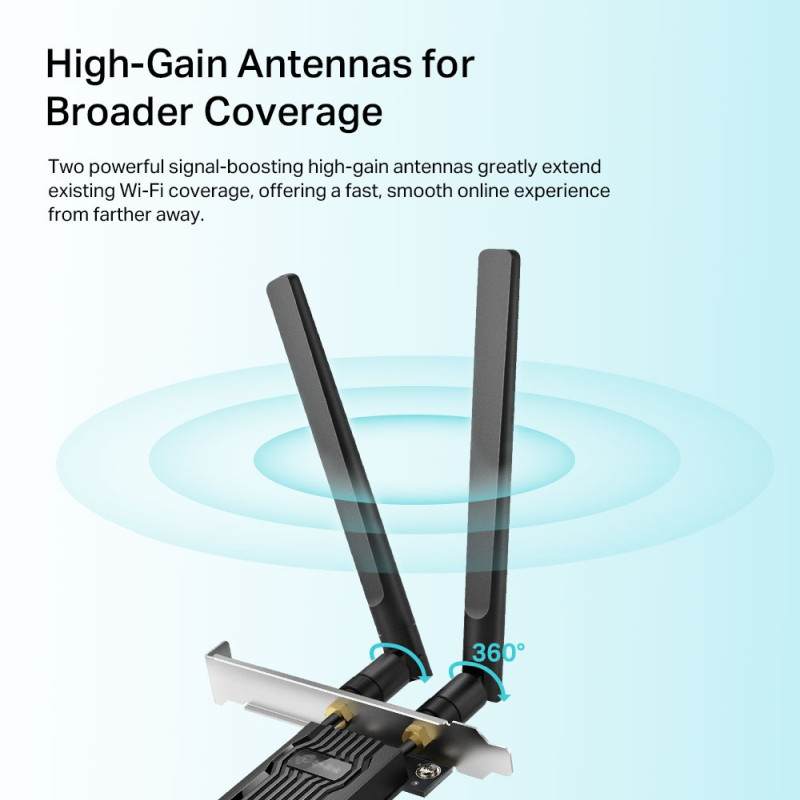

– Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
– Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
– Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
– Backward Compatibility – Full support for 802.11ax/ac/a/b/g/n standards
Specifications
HARDWARE FEATURES
– Dimensions:
* 4.76 × 3.09 × 0.82 in
* (120.8 × 78.5 × 20.9 mm)

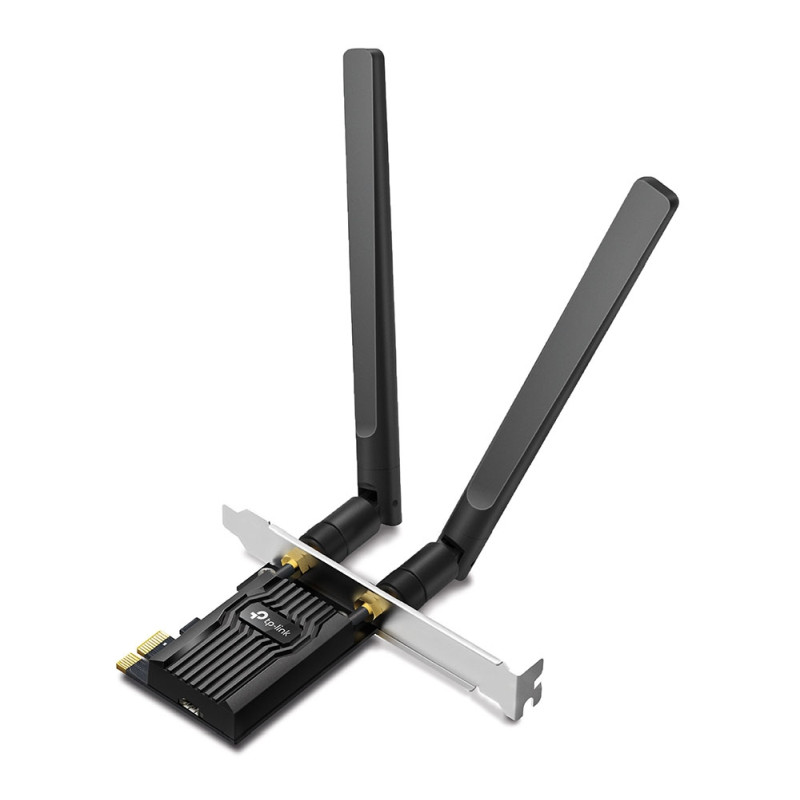

– Antenna Type: Two High-Gain Dual Band Antennas
– Chipset: Realtek Wi-Fi 6 Chipset
WIRELESS FEATURES
– Wireless Standards:
* IEEE 802.11ax/ac/n/a 5 GHz
* IEEE 802.11ax/n/g/b 2.4 GHz
* Bluetooth: 5.2
WLAN Signal Rate
– 5 GHz
* 11ax: Up to 1201 Mbps(dynamic)
* 11ac: Up to 867 Mbps(dynamic)
* 11n: Up to 300 Mbps(dynamic)
* 11a: Up to 54 Mbps(dynamic)
– 2.4 GHz
* 11ax: Up to 574 Mbps(dynamic)
* 11n: Up to 300 Mbps(dynamic)
* 11g: Up to 54 Mbps(dynamic)
* 11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity
– 5 GHz :
* 11ax HE80: -57.0dBm
* 11ax HE40: -60.0dBm
* 11ax HE20: -63.0dBm
* 11ac VHT80: -59.5dBm
* 11ac VHT40: -62.5dBm
* 11ac VHT20: -67.5dBm
* 11n HT40: -69.5dBm
* 11n HT20: -72.5dBm
* 11a 54Mbps: -74.0dBm
* 1 1a 6Mbps: -94.5dBm
– 2.4GHz :
* 11ax HE40: -60.0dBm
* 11ax HE20: -63.0dBm
* 11n HT40: -69.5dBm
* 11n HT20: -72.5dBm
* 11g 54Mbps: -74.0dBm
* 11b 11Mbps: -88.0dBm
– WLAN Transmit Power
* 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
* 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)
– WLAN Modes: Infrastructure mode
– Wireless Security: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
– Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
OTHERS
– Certification: CE, FCC, RoHS
– Package Contents
* Archer TX20E
* Two High-Gain Dual Band Antennas
* Low-Profile Bracket
* Bluetooth Header Cable
* Quick Installation Guide
* Resource CD
– System Requirements. Windows 11/10(64-bit) only
– Environment: Operating Temperature: 0?~40? (32?~104?)
– Storage Temperature: -40?~70? (-40?~158?)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
