– Expand and power your network with the UniFi PoE Switch, part of the Ubiquiti UniFi Enterprise System

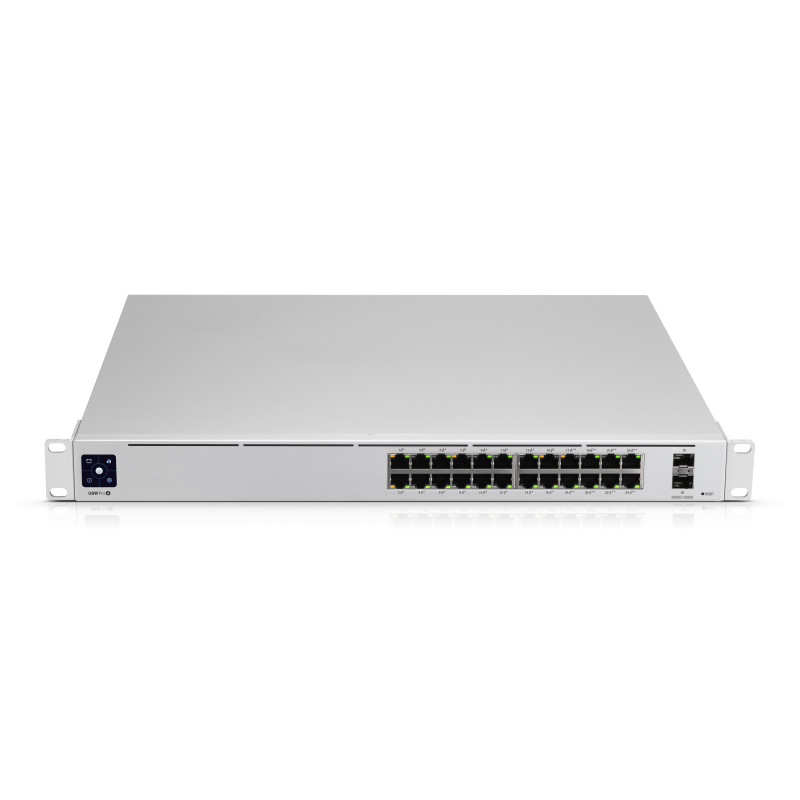

– The Switch 24 PoE (USW 24 PoE) is a fully managed switch with (24) GbE RJ45 ports, including (16) GbE, PoE+ ports, and (2) 1G SFP ports
– The versatile USW 24 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network
– The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights
FIBER CONNECTIVITY
– SFP ports enable network uplinks of up to 1 Gbps
FANLESS, SILENT COOLING
– The UniFi PoE Switch features fanless, silent thermal cooling*, so it can be deployed in areas where fan noise would be distracting
* Fanless switches must not be stacked
SWITCHING PERFORMANCE
– The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss
802.3af/at PoE
– PoE support simplifies your network infrastructure and cabling

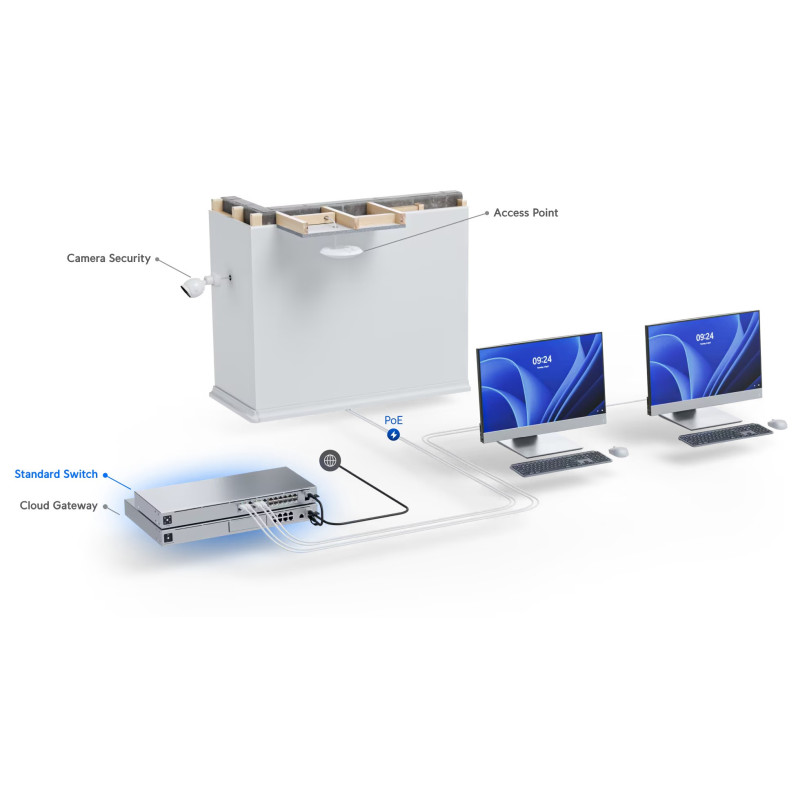

– PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras

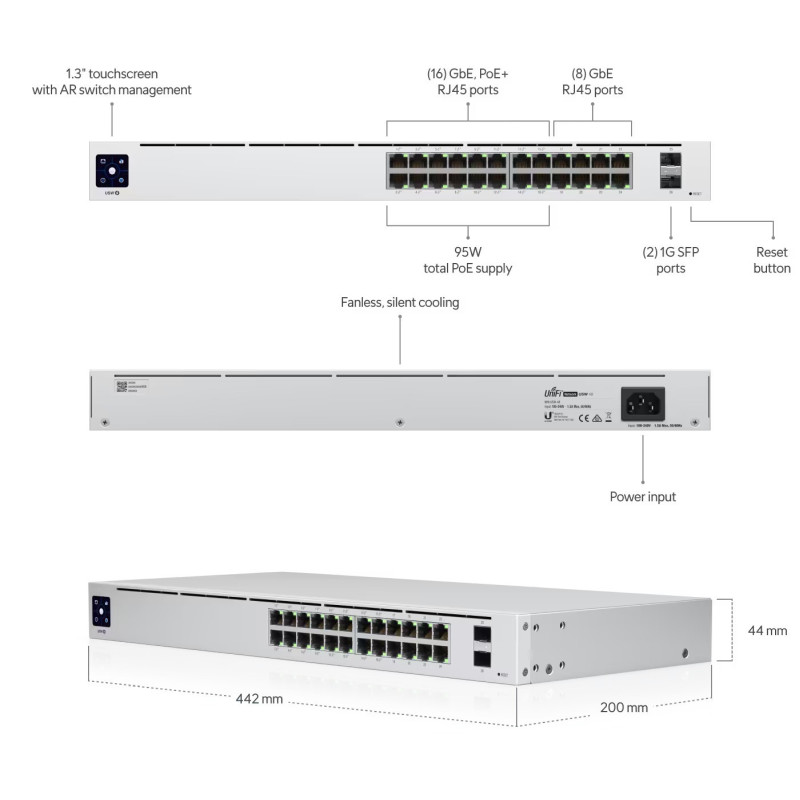

Features
– 1.3″ LCM color touchscreen with AR switch management
– 16× GbE, PoE+ RJ45 ports
– 8× GbE RJ45 ports
– 2× 1G SFP ports
– 95W total PoE supply
– Fanless, silent cooling
Specifications
– Interfaces:
* Networking:
24× 10/100/1000 RJ45 Ports
2× 1G SFP Ethernet Ports
* Management: Ethernet In-Band
– Total Non-Blocking Throughput: 26 Gbps
– Switching Capacity: 52 Gbps
– Forwarding Rate: 38.69 Mpps
– Power Method: 100-240VAC, 50/60 Hz, Universal Input
– Power Supply: AC/DC, Internal, 120W
– Voltage Range: 100 to 240VAC
– Max Power Consumption (Excluding PoE Output): 25W
– LEDs:
* RJ45 Data Ports: PoE; Speed/Link/Activity
* SFP Data Ports: Link/Activity
– ESD/EMP Protection: Air: +/-16 kV, Contact: +/-12 kV
– Shock and Vibration: ETSI300-019-1.4 Standard
– Operating Temperature: -5C to 40C (23F to 104F)
– Operating Humidity: 10% – 90% Noncondensing
– Certifications: CE, FCC, IC
– Dimensions: 442.4×200×43.7 mm
– Weight: 3.00 kg (3.09 kg with brackets)
PoE
– Total Available PoE: 95W
– PoE Interfaces Ports 1-16: PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
– Max. PoE Wattage per Port by PSE 802.3at: 32W
– Voltage Range:
* 802.3af Mode: 44-57V
* 802.3at Mode: 50-57V
