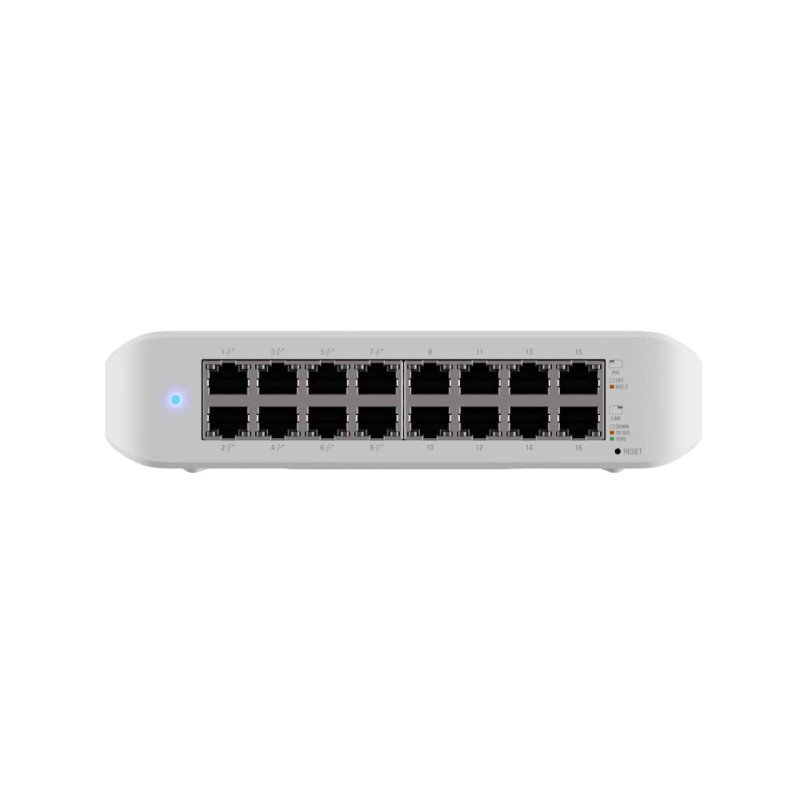

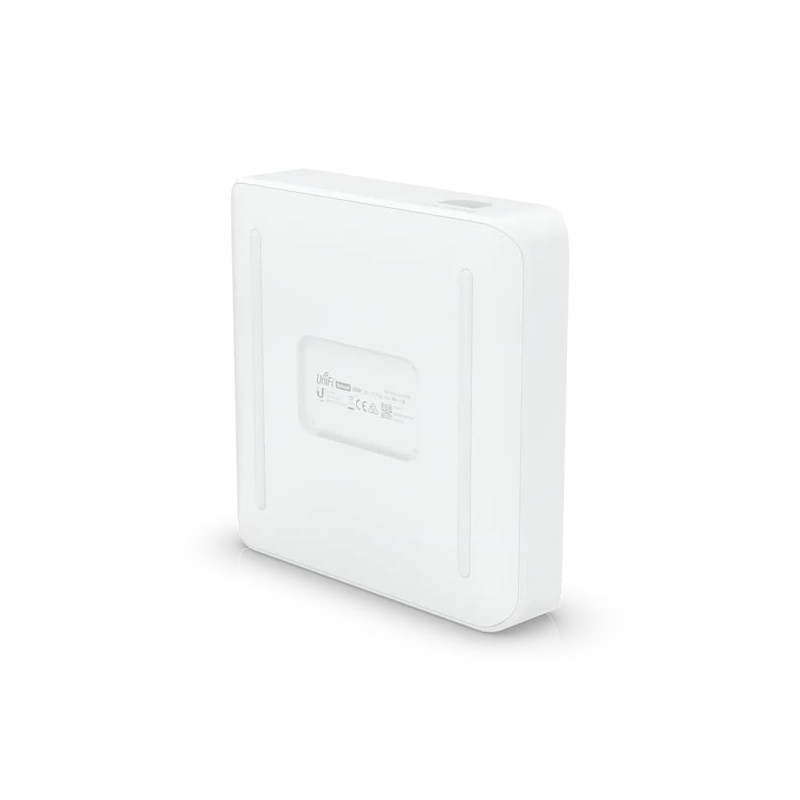

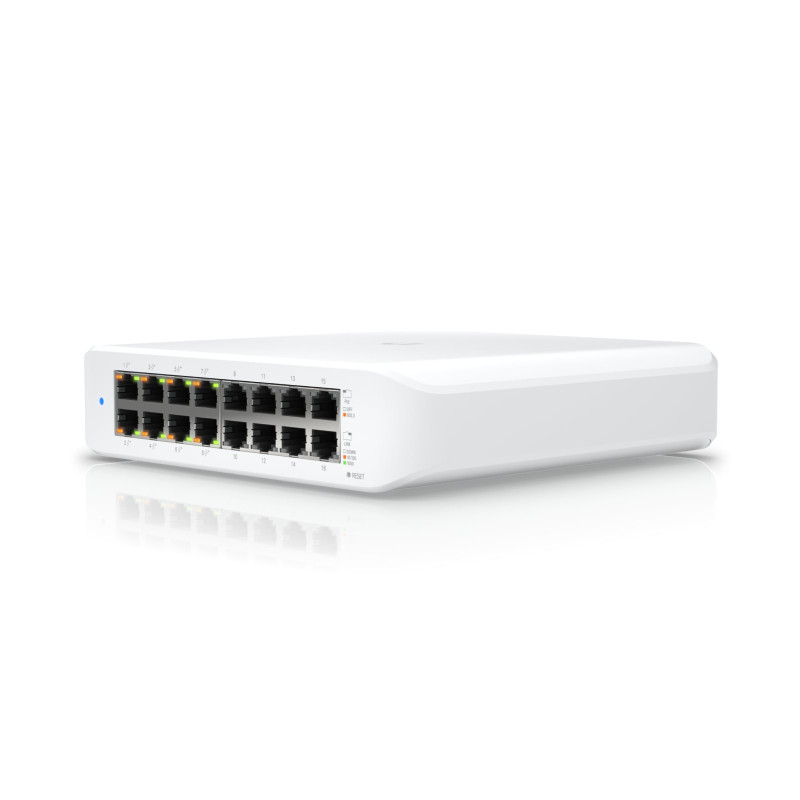

– A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.
Works with the UniFi Network Application
– Centrally manage multiple networks from an intuitive interface
– Enjoy real-time device insights and deep configuration options
– Upgrade device firmware remotely
– Manage network users and guests with ease
– Personalize the design, architecture, and privacy of guest hotspots
– Set up devices quickly and manage them on the go with a powerful mobile app
Features
– (8) GbE, PoE+ RJ45 ports
– (8) GbE RJ45 ports
– 45W total PoE availability
– Managed with the UniFi Network application: Version 7.2.94 and later
– VLAN Support
– Port Aggregation (LAG)
– Spanning Tree Protocol (STP)
– Jumbo Frames
– Quality of Service (QoS)
– Advanced Logging
Specifications
Hardware
– Networking interface: (16) 10/100/1,000 MbE RJ45
– Management interface: Ethernet In-Band
– PoE interface: (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
– Total non-blocking line rate: 16 Gbps
– Max. power consumption: 15W

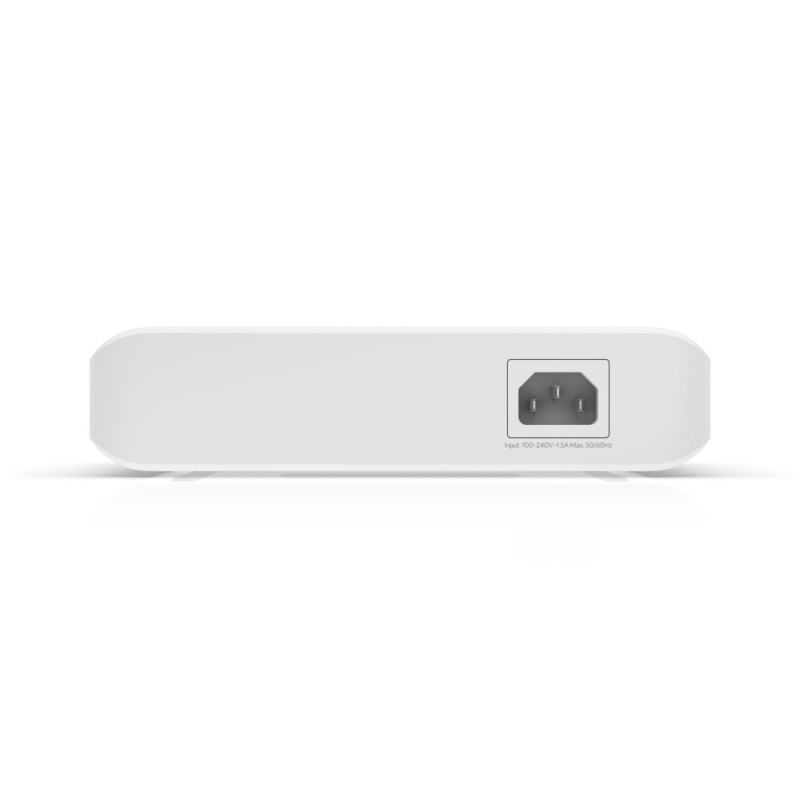

– Power method: Universal AC input: 100—240V AC
– Power supply: Internal 60W AC/DC power supply
– Supported voltage range: 100—240V AC
– Max PoE+ wattage per port by PSE: 30W
– PoE budget: 45W
– Modes: SMB Layer 2 PoE GbE switch
– Operating temperature: -15 to 40° C (5 to 104° F)
– Operating humidity: 10 to 90% noncondensing
– Certifications: CE, FCC, IC
Mechanical
– Dimensions: 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72″)
– Weight: 1.2 kg (2.65 lb)
LEDs
– System (1) Power: blue/white
– Flashing white: bootup in progress
– Flashing blue: firmware upgrading
– Steady white: factory defaults, awaiting adoption
– Steady blue: device is adopted
– Ethernet: Green: 1G
– Amber: 10/100 Mbps
– PoE: Amber: PoE/PoE+
