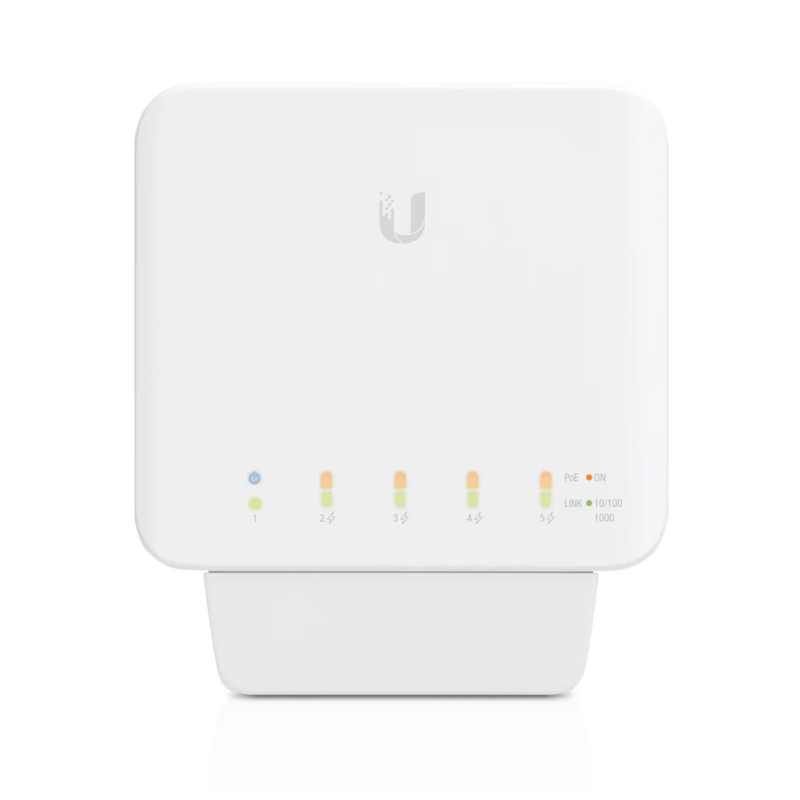

– Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
Features
– (4) GbE PoE+ ports
– (1) GbE PoE++ input port for power
– 46W PoE availability* PoE++ input
– 20W PoE availability PoE+ input
– 8W PoE availability PoE input
– Indoor/Outdoor
Specifications
Mechanical

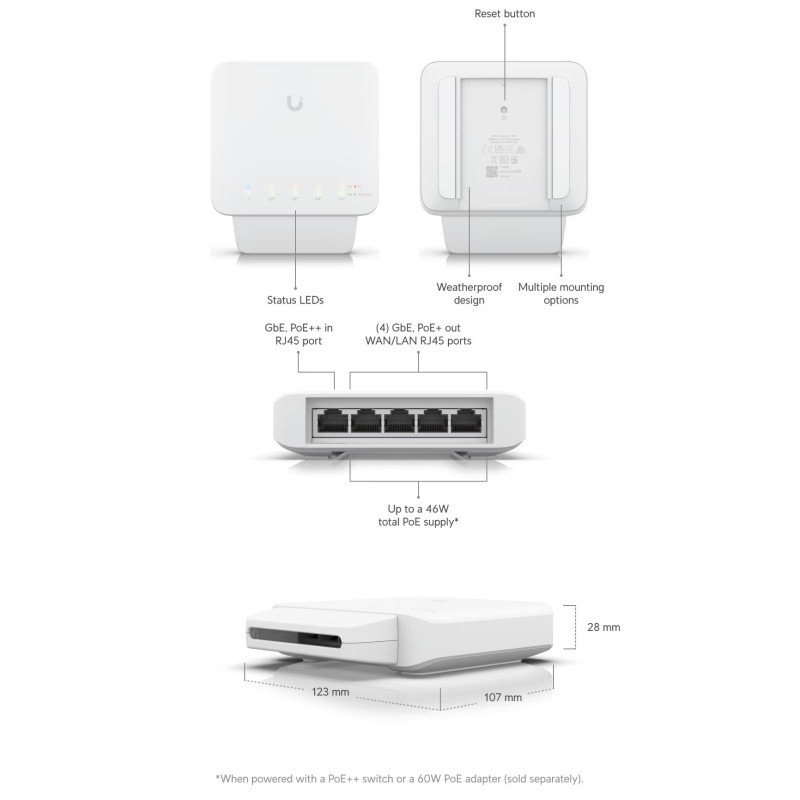

– Dimensions: 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1″)
– Weight: 230 g (8.1 oz)
Hardware
– Management interface: Ethernet In-Band
– Networking interface: (5) GbE RJ45 ports
– PoE interface: (4) PoE+ (Pins 1, 2+; 3, 6-)
– Total non-blocking throughput: 5 Gbps
– Switching capacity: 10 Gbps
– Power method: PoE++
– Power supply
• PoE/PoE+ (Pins 1, 2+; 3, 6-)
• PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 😎
• 50V/60W PoE adapter (Not included)
– Supported voltage range
• PoE: 44—57V DC
• PoE+/PoE++: 50—57V DC
– Max. power consumption: 5W (Excluding PoE output)
– Total available PoE: 46W*
*When powered with a PoE++ switch or a 60W PoE adapter (Sold separately).
– Max. PoE wattage per port by PSE: 25W
– ESD/EMP protection : Air/contact: ± 16kV
– Button: Factory reset
– Ambient operating temperature
• 46W PoE output: -40 to 55° C (-40 to 131° F)
• 25W PoE output: -40 to 65° C (-40 to 149° F)
– Ambient operating humidity: 5 to 95% noncondensing
– Certifications: CE, FCC, IC
Switching Features
– Layer 2 features:
• Port isolation
• Port mirroring
• Multicast / broadcast rate limiting
• Flow control
• Jumbo frames
• Egress rate limit
– Layer 3 features: –
LEDs
– System: Status
– Ethernet:
• PoE
• Speed/link/activity
– PoE: Link/activity
Application Requirements
– UniFi Network: Version 5.10.3 and later
