Features
– Ultra-Fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac – Wi-Fi standard
– Dual Band Wireless – 2.4GHz and 5GHz bands for flexible connectivity
– Dual High-Gain antennas – Improved range, signal quality and transmission performance
– MU-MIMO –Delivers highly efficient wireless connection
– Super Speed USB 3.0 Port – Up to 10x faster transfer speeds than USB 2.0

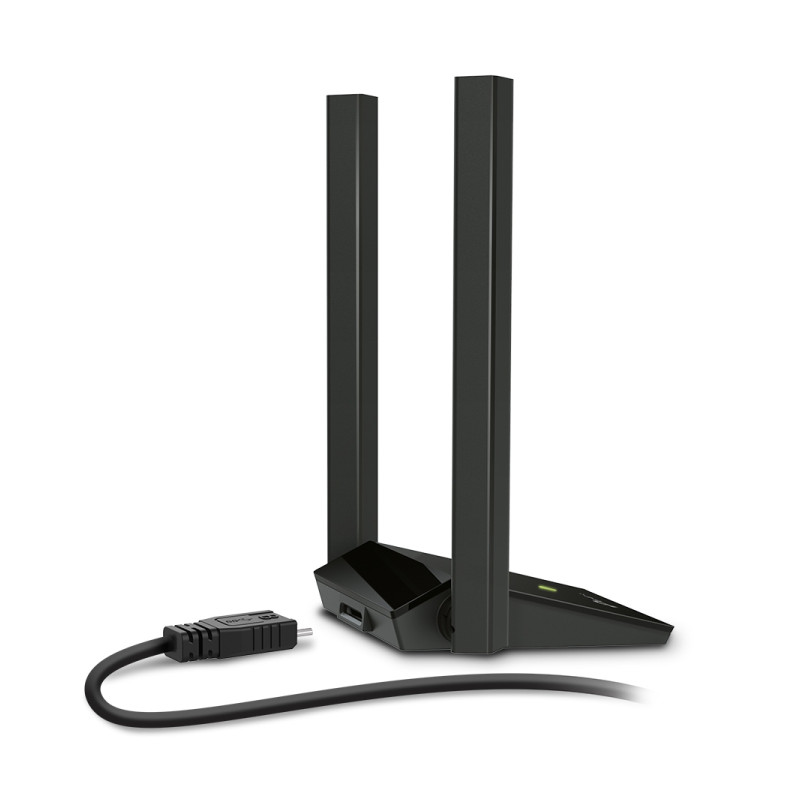

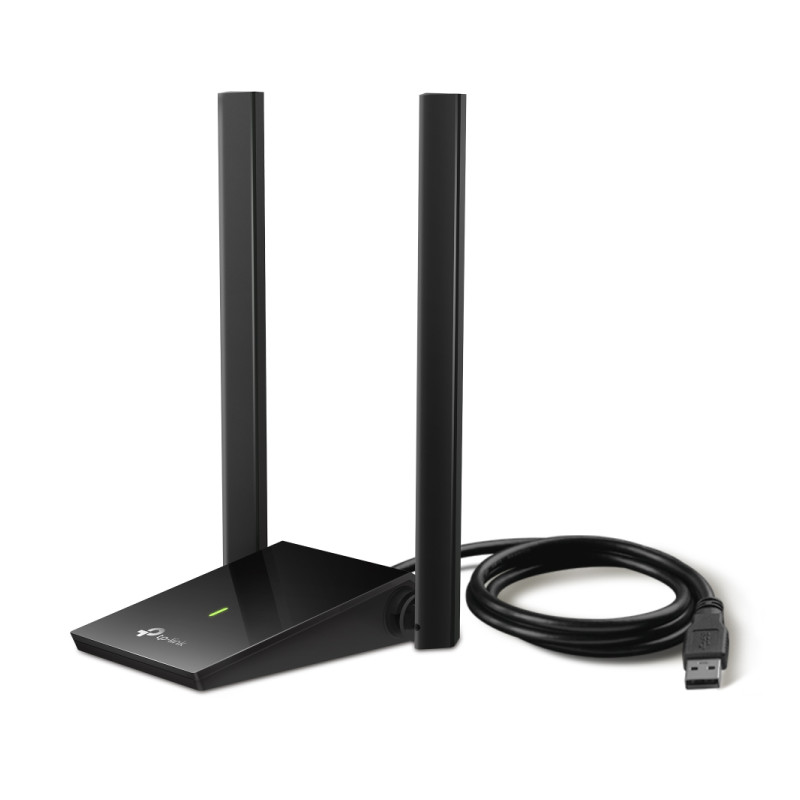

– Adjustable, Multi-Directional Antenna – Enable flexible deployment for the best reception
Specifications
HARDWARE FEATURES
– Interface: USB 3.0
– LED: Status
– Dimensions (W×D×H): 84×156.3×19.2 mm
– Antenna: 2× External 5 dBi High Gain Antennas
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
– Signal Rate:
* 5 GHz:
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
* 2.4 GHz:
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
– Reception Sensitivity:
* 5 GHz:
11ac VHT80: -62dBm
11ac VHT40: -65dBm
11ac VHT20: -69dBm
11n HT40: -71dBm
11n HT20: -74dBm
11a 54Mbps: -77dBm
* 2.4 GHz:
11n HT40: -70dBm
11n HT20: -72dBm
11g 54Mbps: -75dBm
11b 11Mbps: -87dBm
– Transmit Power:
* 5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP)
* 2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP)
– Wireless Modes: Infrastructure mode
– Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
OTHERS
– Certification: FCC, CE, RoHS

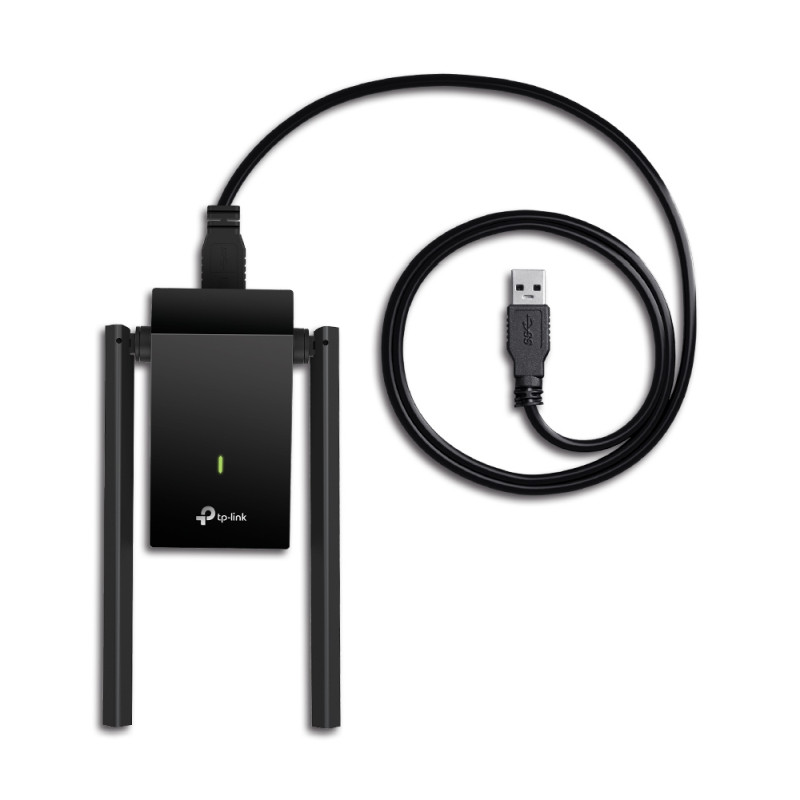

– Package Contents: AC1300 Dual Antennas High-Gain Wireless USB Adapter Archer T4U Plus, Quick Installation Guide, Resource CD, 1m USB 3.0 Cable
– System Requirements: Supported operating systems include Windows 10/8.1/8/7, macOS
– Environment:
* Operating Temperature: 0C to 40C (32F to 104F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
