– Ultimate Wi-Fi Speed – AC1300 (400 Mpbs on 2.4GHz band and 867 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi – 802.11ac
– Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity
– Mini design – Mini-sized design for convenient portability with a reliable high performance
– Super Speed USB 3.0 Port – Up to 10× faster transfer speeds than USB 2.0
– MU-MIMO – Delivers highly efficient wireless connection
– Supported Operating System – Supports Windows 10/8.1/8/7/XP, Mac OS X
Specifications
HARDWARE FEATURES
– Interface: USB 3.0
– Dimensions (W×D×H): 40.5×19.72×10.29 mm
– Antenna Type: Omni Directional
WIRELESS FEATURES
– Wireless Standards:
* IEEE 802.11ac, IEEE 802.11a,
* IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
– Frequency:
* 5GHz
* 2.4GHz
– Signal Rate:
* 5GHz
11ac: Up to 867Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
* 2.4GHz
11n: Up to 400Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
– Reception Sensitivity:
* 5GHz:
11a 6Mbps: -91dBm
11a 54Mbps: -76dBm
11n HT20:-71dBm
11n HT40:-70dBm
11ac HT20: -68dBm
11ac HT40: -64dBm
11ac HT80: -62dBm
* 2.4GHz:
11b 11Mbps: -86dBm
11g 54Mbps: -73dBm
11n HT20: -71dBm
11n HT40: -70dBm
– Transmit Power: <23dBm (EIRP)
– Wireless Modes: Ad-Hoc / Infrastructure Mode
– Wireless Security: Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
– Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
– Certification: CE, FCC, RoHS
– Package Contents:

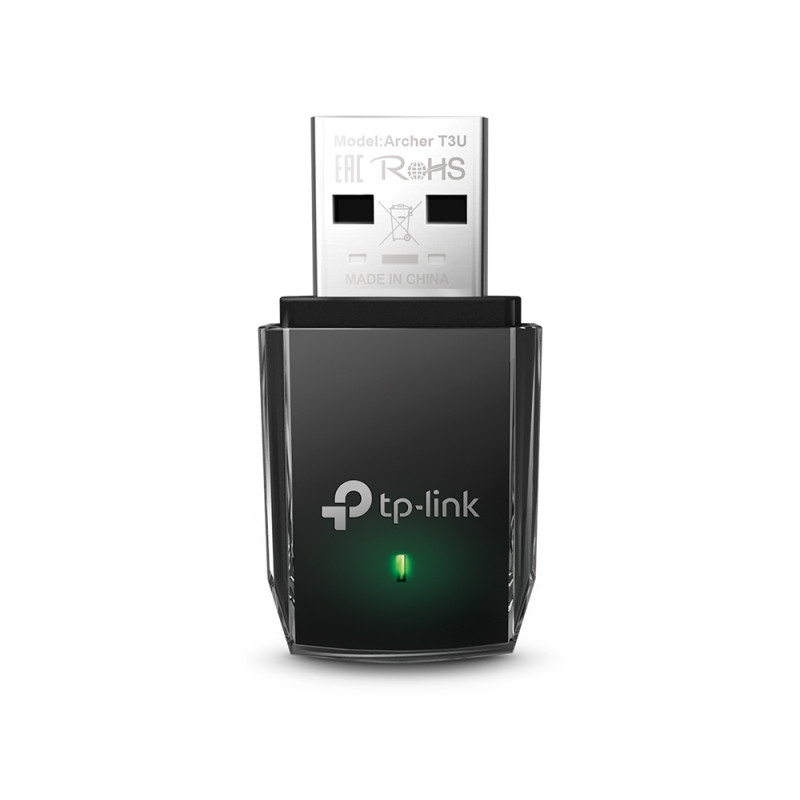

* AC1300 Mini Wireless MU-MIMO USB Adapter Archer T3U
* Quick Installation Guide
* Resource CD
– System Requirements: Windows10/8.1/8/7/XP, Mac OS X 10.9-10.13
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
