– Easy-to-deploy WiFi 6 coverage extender that fits a standard wall outlet.
Features
– WiFi 6
– 6 spatial streams
– 115 m2 (1,250 ft2) coverage
– 300+ connected devices
– Powered with standard AC wall outlet*

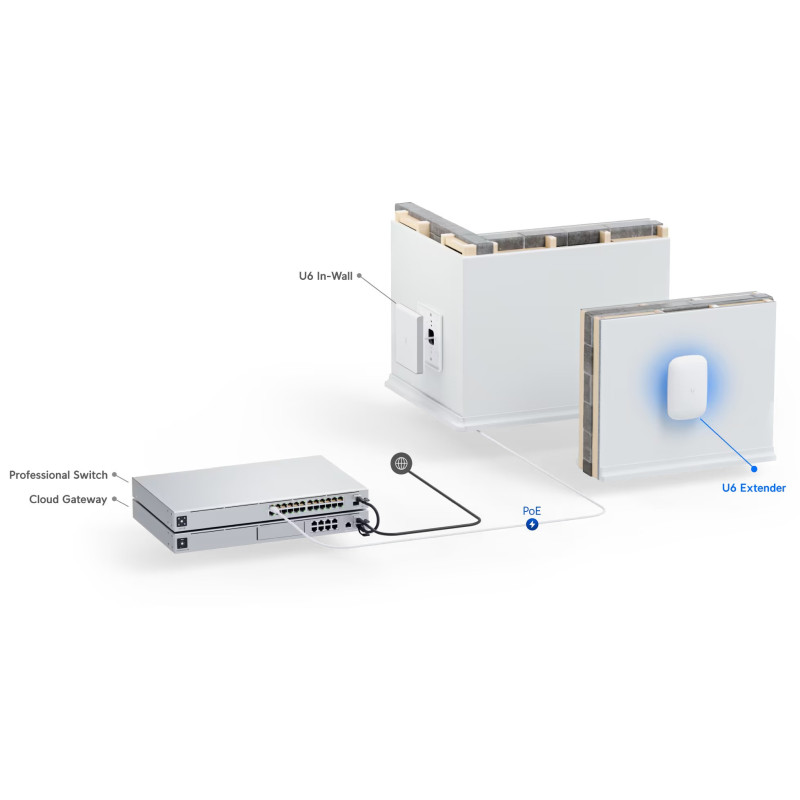

– Wireless uplink to UniFi WiF
Specifications
Mechanical

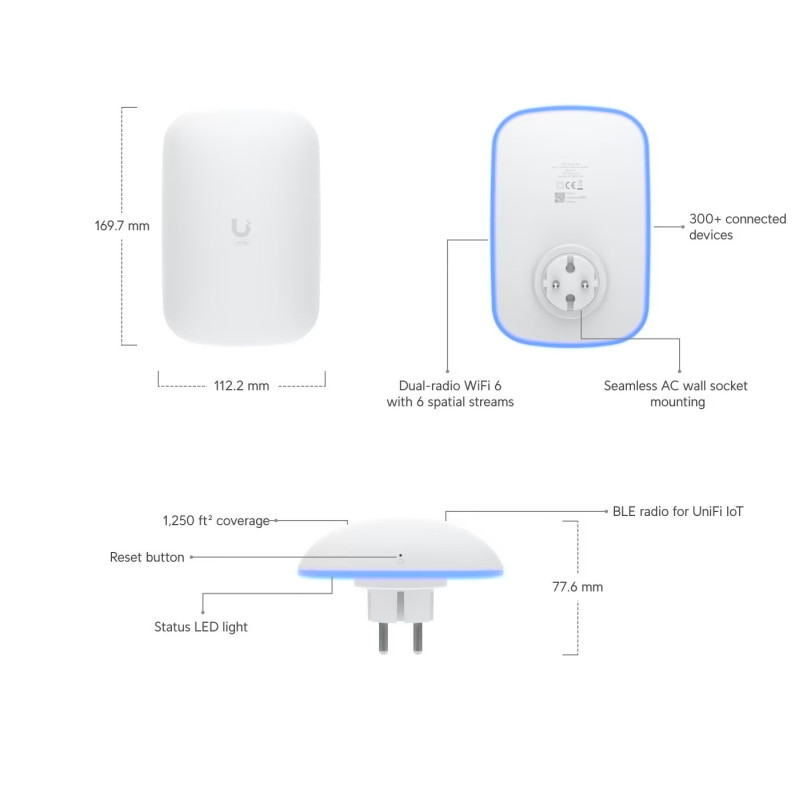

– Dimensions
• US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3″)
• EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1″)
– Weight: US: 290 g (10.2 oz)
– EU: 340 g (12 oz)
– E nclosure material: Polycarbonate
Hardware
– Management interface: Bluetooth
– Power method: Universal AC input, 100—240V AC, 0.3A Max., 50/60 Hz
– Supported voltage range: 110—240V AC
– Max. power consumption: 11W
– Max. TX power
• 2.4 GHz: 22 dBm
• 5 GHz: 26 dBm
• 6 GHz: –
– MIMO
• 2.4 GHz: 2 x 2 (UL MU-MIMO)
• 5 GHz: 4 x 4 (DL/UL MU-MIMO)
• 6 GHz: –
– Throughput rate
• 2.4 GHz: 573.5 Mbps
• 5 GHz: 4.8 Gbps
• 6 GHz: –
– Antenna gain
• 2.4 GHz: 5 dBi
• 5 GHz: 6 dBi
• 6 GHz: –
– LEDs: White/blue
– Button: Factory reset
– Ambient operating temperature: -10 to 50° C (14 to 122° F)
– Ambient operating humidity: 5 to 95% noncondensing
– Certifications: CE, FCC, IC
Software
– WiFi standards: 802.11a/b/g/n/ac/ax
– Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
– BSSID: 8 per radio
– VLAN: 802.1Q
– Advanced QoS: Per-user rate limiting
– Guest traffic isolation: Supported
– Concurrent clients: 300+
– Zero-wait DFS: Yes*
*Supported with upcoming firmware versions.
Supported Data Rates
– 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
– 802.11b: 1, 2, 5.5, 11 Mbps
– 802.11g. 6, 9, 12, 18, 24, 36, 48, 54 Mbps
– 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 – MCS31 , HT 20/40)
– 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
– 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
– UniFi Network: Version 6.5.55 and later
