Sleek, indoor/outdoor WiFi 6 access point designed for mesh applications.
Features
– WiFi 6 support (2.4/5 GHz bands)
– 5.3 Gbps aggregate throughput rate
– Horizontal antenna pattern to widen coverage area
– (1) GbE RJ45 port (PoE In)
– IPX5-rated, waterproof casing
Technical Specifications
Mechanical

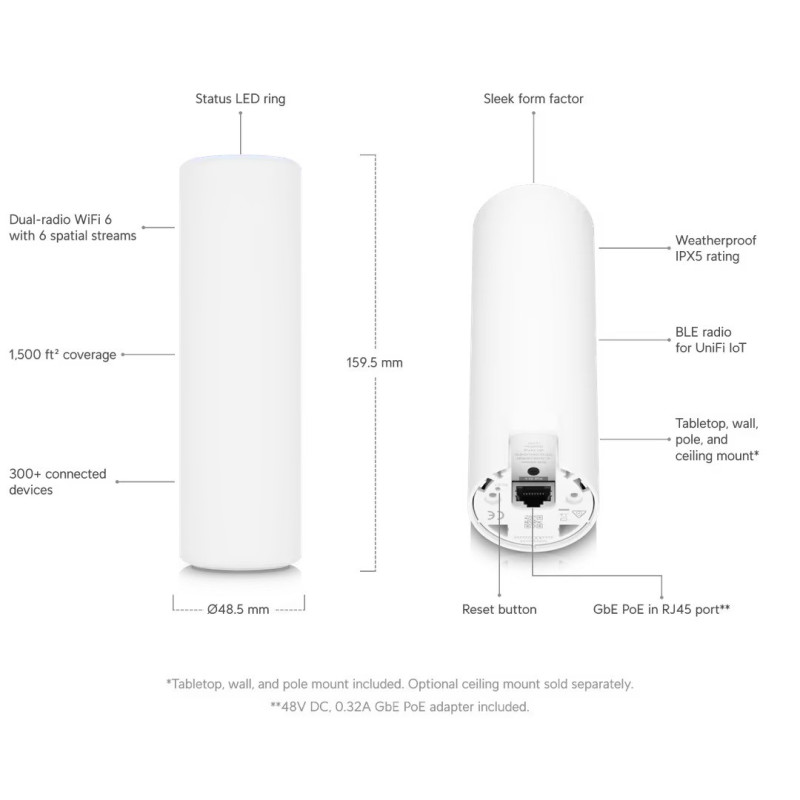

– Dimensions: O48.5 x 159.5 mm
– Weight 400 g
– Enclosure material Plastic, aluminum
– Mount materials: Plastic
– Weatherproofing: IPX5
Hardware
– Networking interface: (1) GbE RJ45 port
– Management interfaces:
* Ethernet
* Bluetooth
– Power method: PoE
– Power supply: UniFi PoE switch
* 48V, 0.32A PoE adapter (included)
– Supported voltage range: 44—57V DC
– Max. power consumption: 11.4W
– Max. TX power
* 2.4 GHz 22 dBm
* 5 GHz 26 dBm
– MIMO
* 2.4 GHz 2 x 2 (UL MU-MIMO)
* 5 GHz 4 x 4 (DL/UL MU-MIMO)
– Throughput rate
* 2.4 GHz 573.5 Mbps
* 5 GHz 4.8 Gbps
– Antenna gain
* 2.4 GHz 3 dBi
* 5 GHz 5 dBi
– LEDs: White/blue
– Button: Factory reset
– Mounting: Wall, desktop, pole mount (Included)
Ceiling mount (Optional)
– Operating temperature: -30 to 60° C (-22 to 140° F)
– Operating humidity: 5 to 95% noncondensing
– Certifications: CE, FCC, IC
Software
– WiFi standards:
* 802.11a/b/g
* WiFi 4/WiFi 5/WiFi 6
– Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
– BSSID: 8 per radio
– VLAN: 802.1Q
– Advanced QoS: Per-user rate limiting
– Guest traffic isolation: Supported
– Concurrent clients: 300+
– Zero wait DFS: Yes (*Supported with upcoming firmware versions)
Supported Data Rates
– 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
– 802.11b: 1, 2, 5.5, 11 Mbps
– 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
– 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
– 802.11ac (WiFi 5):6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
– 802.11ax (WiFi 6) :7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
