– A compact and powerful UniFi gateway with a full suite of advanced routing and security features.
– Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
– Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server

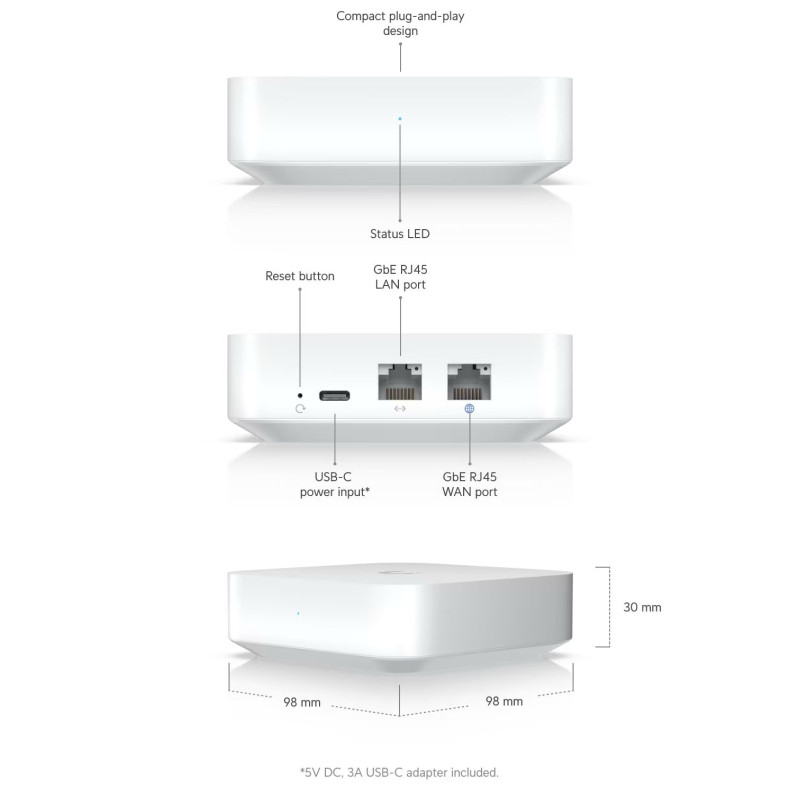

Features

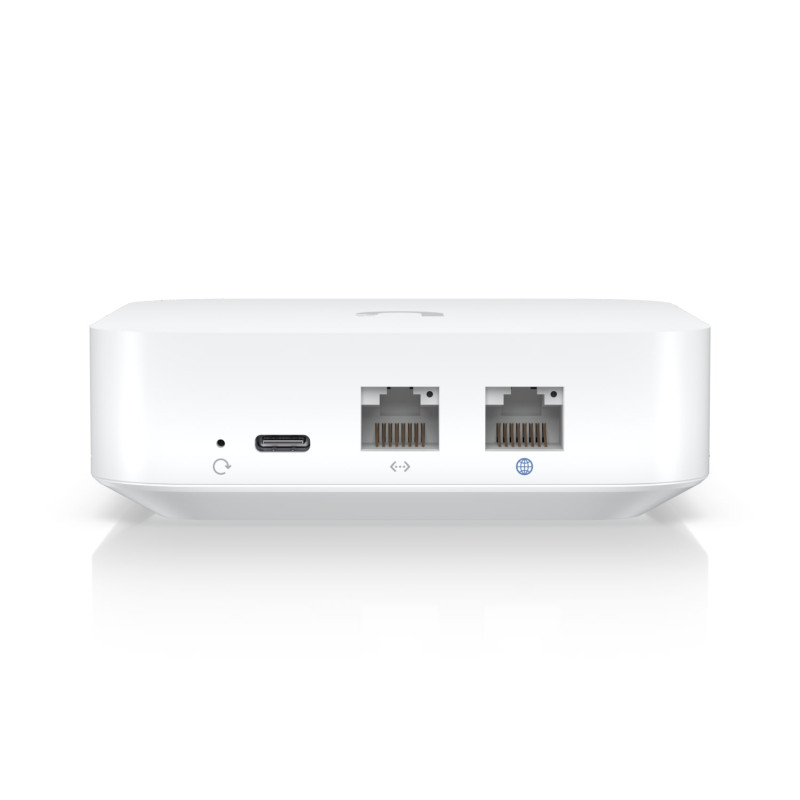

– (1) GbE WAN port
– (1) GbE LAN port
– Compact footprint

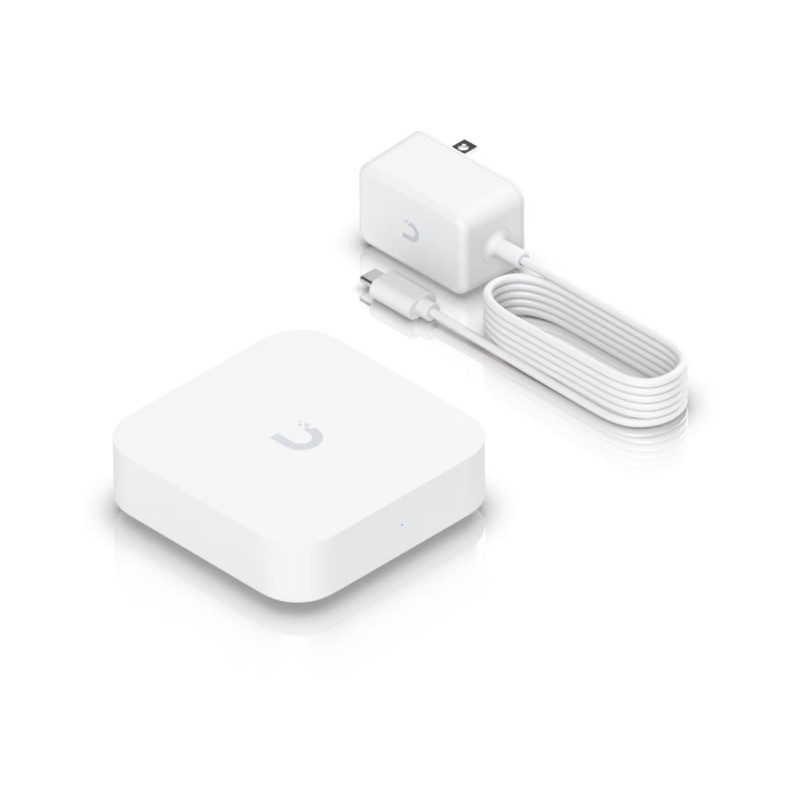

– USB-C powered (adapter included)
– Managed with UniFi Network 8.0.7 and later
Specifications
– Mechanical
– Dimensions: 98 x 98 x 30 mm (3.9 x 3.9 x 1.2″)
– Weight: 320 g (11.3 oz)
– Enclosure material: Polycarbonate
Hardware
– Processor: Dual-core ARM Cortex-A53 at 1 GHz
– Memory information: 1 GB DDR3L
– Management interface: Ethernet
– Bluetooth: 5.1
– Networking interface:
• LAN: (1) GbE RJ45 port
• WAN: (1) GbE RJ45 port
– Power method: USB type C (5V/3A)
– Supported voltage range: 100–240V
– Max. power consumption: 3.83W
– Operating temperature: -10 to 40° C (14 to 104° F)
– Operating humidity: 5 to 95% noncondensing
– Certifications: CE, FCC, IC
Gateway Features
– Performance:
• WiFi QoS with UniFi APs
• Application, domain, and country-based QoS
• Application and device type identification
• Additional internet failover with LTE Backup
• Internet quality and outage reporting
– Next-generation security
• Application-aware firewall rules
• Signature-based IPS/IDS threat detection
• Content, country, domain, and ad filtering
• VLAN/subnet-based traffic segmentation
• Full stateful firewall
– Advanced networking
• License-free SD-WAN*
• WireGuard, L2TP and OpenVPN server
• OpenVPN client
• OpenVPN and IPsec site-to-site VPN
• One-click Teleport* and Identity Enterprise VPN**
• Policy-based WAN and VPN routing
• DHCP relay
• Customizable DHCP server
• IPv6 ISP support
*When paired with a Cloud Key or Official UniFi Hosting.
**When paired with a Cloud Key.
Application Requirements
– UniFi Network: Version 8.0.7 and later
