Features
– Share a 3G mobile connection, compatible with 120+ UMTS/HSPA/EVDO 3G USB modems
– Portable design, light and small enough for you to take anywhere
– Wireless N speed up to 150Mbps
– Quick security setup, faster and safer
– IP-based bandwidth control allows administrators to determine how much bandwidth is allotted to each connected device
– A mini USB port to be connected to your laptop or power adapter for power supply
– 3G/WAN failover guarantees an “always-online” internet connection
– Three working modes: 3G Router, Travel Router (AP), WISP Client Router
Specification
HARDWARE FEATURES

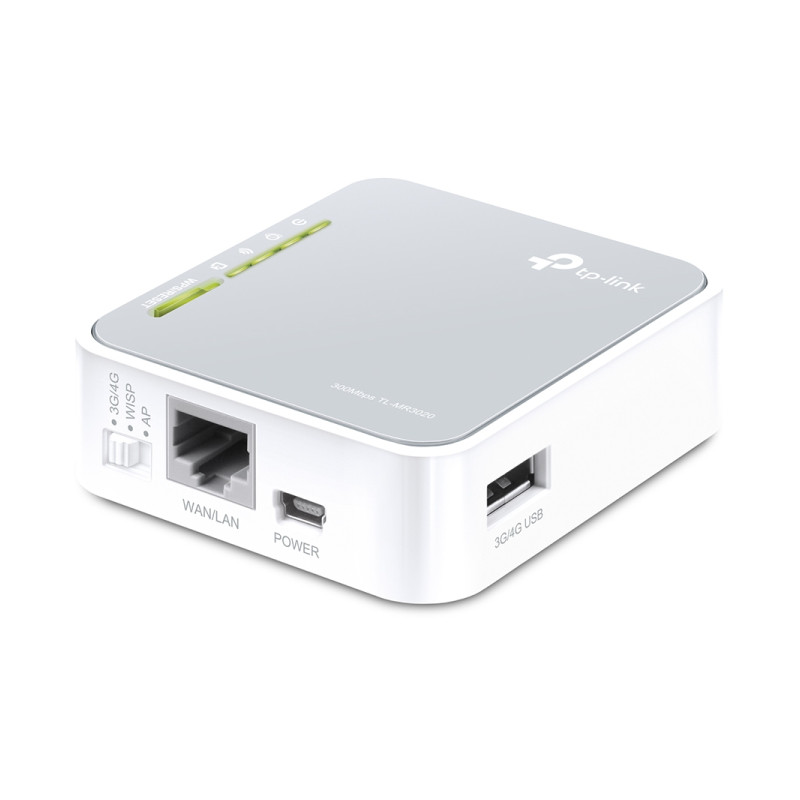

– Interface: 1× 10/100Mbps WAN/LAN Port, USB2.0 Port for 3G modem, a mini USB Port for power supply
– Button: Quick Setup Security Button, Reset Button, Mode Switch
– External Power Supply: 5VDC/1.0A
– Dimensions (W×D×H): 74×67×2 mm
– Antenna Type: Internal Antenna
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
– Frequency: 2.4 – 2.4835GHz
– EIRP: <20dBm
– Wireless Modes: 3G Router, Travel Router (AP), WISP Client Router
– Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering
SOFTWARE FEATURES
– DHCP: Server, DHCP Client List, Address Reservation
– Port Forwarding: Virtual Server, Port Triggering, DMZ, UPnP
– Access Control: Parental Control, Host List, Access Schedule, Rule Management
– Security: Firewall, MAC filtering, Denial of Service (DoS)
OTHERS
– System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7; MAC OS; NetWare; UNIX; Linux
– Environment:
* Operating temperature: -10C – 60C
* Storage Temperature: -40C – 80C
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
