– Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
– AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band

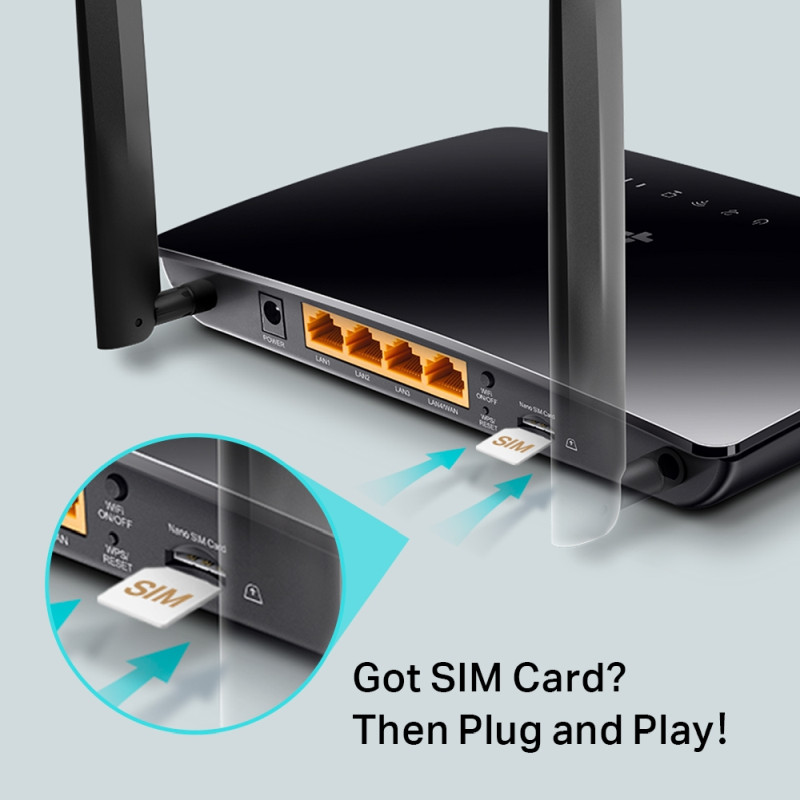

– Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
– Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
– Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you cant get a 4G connection
Specifications
HARDWARE FEATURES

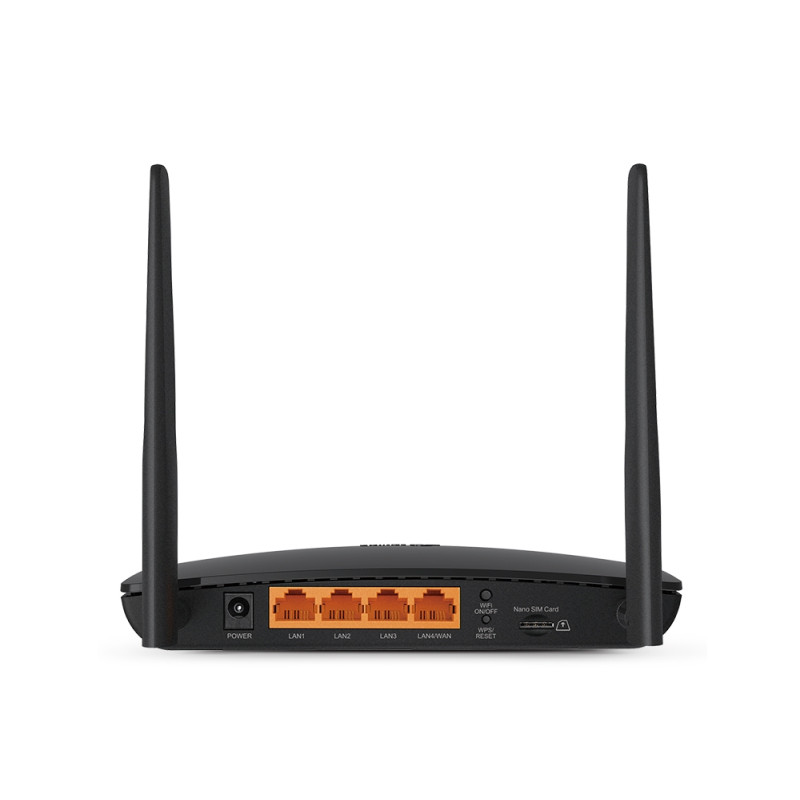

– Interface¸:
* 3 10/100Mbps LAN Ports
* 1 10/100Mbps LAN/WAN Port
* 1 Micro SIM Card Slot
– Button: WPS/Reset Button, WiFi On/Off Button, Power On/Off Button
– External Power Supply: 12V/1A
– Dimensions (W×D×H): 202×141×33.6 mm
– Antenna: 2 Detachable 4G LTE Antennas
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
– Frequency: 2.4GHz and 5GHz
– Signal Rate: 300Mbps at 2.4GHz, 867Mbps at 5GHz
– Reception Sensitivity:
* 5GHz
11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm
* 2.4G
11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm
– Transmit Power: CE: <20dBm (2.4GHz), <23dBm (5GHz)
– Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
– Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
– Network Type:
* 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
* TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)
* 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
SOFTWARE FEATURES
– Quality of Service: Bandwidth Control
– Operating Modes: 3G/4G Router, Wireless Router
– WAN Type: Dynamic IP/Static IP/PPPoE/PPTP (Dual Access) / L2TP (Dual Access)
– Management: Access Control, Local Management, Remote Management reboot schedule
– DHCP: Server, Client, DHCP Client List, Address Reservation
– Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
– Dynamic DNS: DynDns, NO-IP
– VPN: PPTP VPN, IPSec VPN , OpenVPN
– Access Control: Parental Control, Local Management Control
– Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
– Protocols: Supports IPv4 and IPv6
– Guest Network: 2.4GHz guest network ×1, 5GHz guest network ×1
– IPSec VPN: Supports up to 10 IPSec VPN tunnels
OTHERS
– Certification: CE, RoHS
– System Requirements:
* Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10
* MAC OS, NetWare, UNIX or Linux
* Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers
* Micro SIM Card
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10%-90% non-condensing
* Storage Humidity: 5%-90% non-condensing
– Package Contents:
* AC1200 Wireless Dual Band 4G LTE Router, Archer MR400
* RJ45 Ethernet Cable
* Power Adapter
* Quick Installation Guide
