– Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
– Powerful, integrated antennas provide stable wireless connections and better coverage

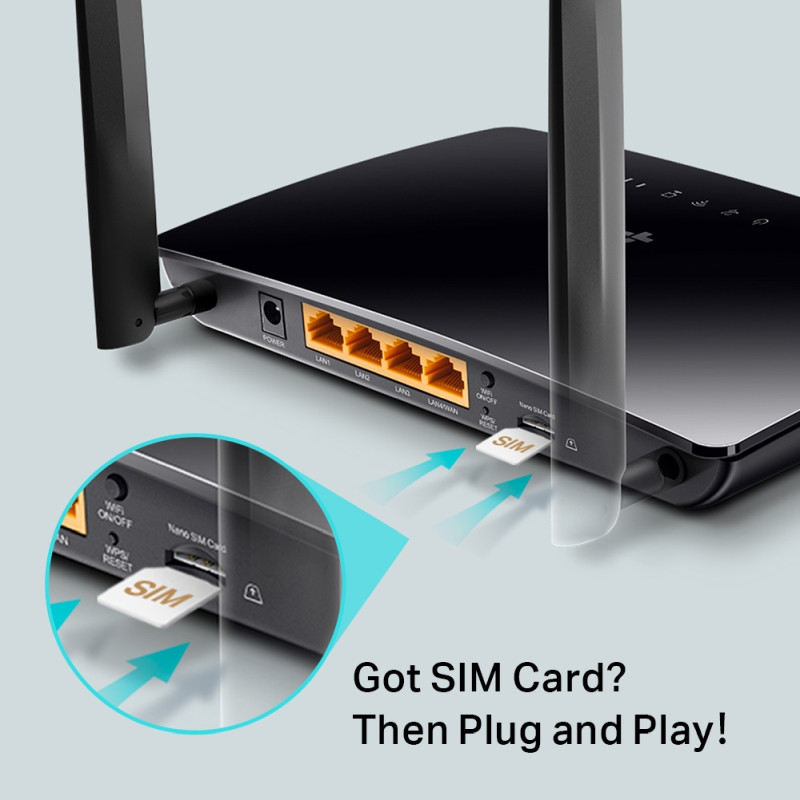

– Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
– Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band
– Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
Specifications
HARDWARE FEATURES

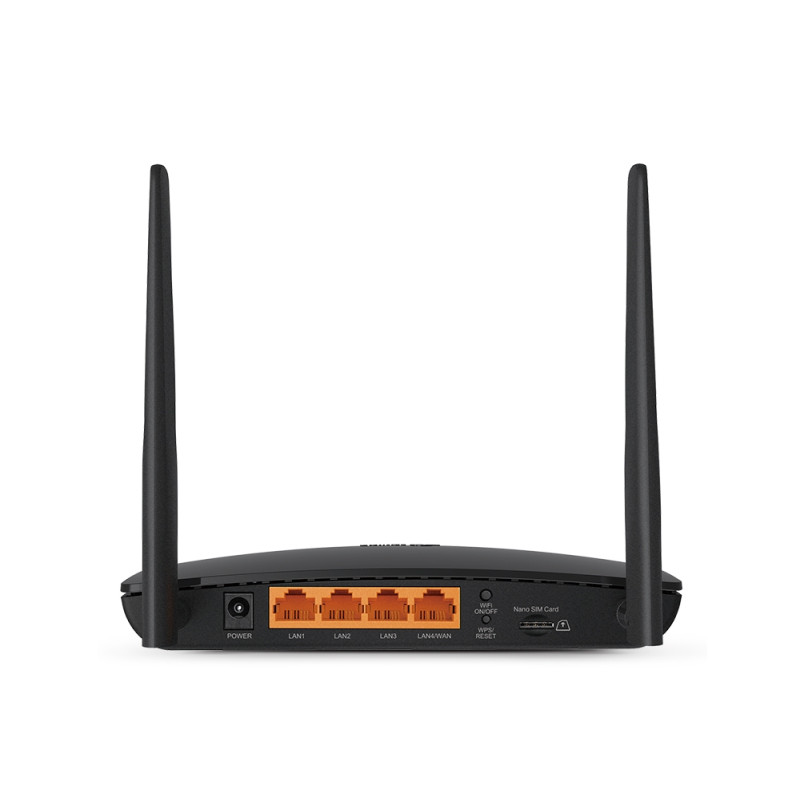

– Interface: 3×10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot
– Button: WPS/Reset Button, Wireless On/Off Button, Power On/Off Button
– Antenna: 2×Detachable External 4G LTE Antennas
– External Power Supply: 12V/1A
– Dimensions ( W x D x H ): 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
– Frequency: 2.4GHz and 5GHz
– Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz
– Reception Sensitivity:
5GHz: 11a 54M: -74dBm
* 11ac HT20: -67dBm
* 11ac HT40: -64dBm
* 11ac HT80 : -60dBm
* 11n HT20: -71dBm
* 11n HT40: -70dBm
2.4G: 11g 54M: -76dBm
* 11n HT20: -73dBm
* 11n HT40: -67dBm
– Transmit Power: CE: <20dBm(2.4GHz), <23dBm(5GHz)
– Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
– Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
– Network Type:
* 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
* TDD-LTE B38/B40 (2600/2300MHz)
* 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
* 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)
SOFTWARE FEATURES
– Quality of Service: Trafc Control(IP QoS)
– Operating Modes: 3G/4G Router, Wireless Router
– WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
– Management: Access Control, Local Management, Remote Management
– DHCP: Server, Client, DHCP Client List, Address Reservation
– Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
– Dynamic DNS: DynDns, NO-IP
– VPN Pass-Through: PPTP, L2TP, IPSec
– Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
– Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
– Protocols: Supports IPv4 and IPv6
– Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
– IPSec VPN: Supports up to 10 IPSec VPN tunnels
OTHERS
– Certification: CE, FCC, RoHS
– Package Contents: AC750 Wireless Dual Band 4G LTE Router, Archer MR200, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide, Micro/Nano to Standard SIM Card Adapter
– System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher,or other Java-enabled browsers, SIM Card
– Environment:
* Operating Temperature: 0?~40? (32? ~104?)
* Storage Temperature: -40?~70? (-40? ~158?)
* Operating Humidity: 10%~90% non-condensing
* Storage Humidity: 5%~90% non-condensing
