– Reliable data management for remote and branch offices
AN ALL-IN-ONE EDGE STORAGE SOLUTION

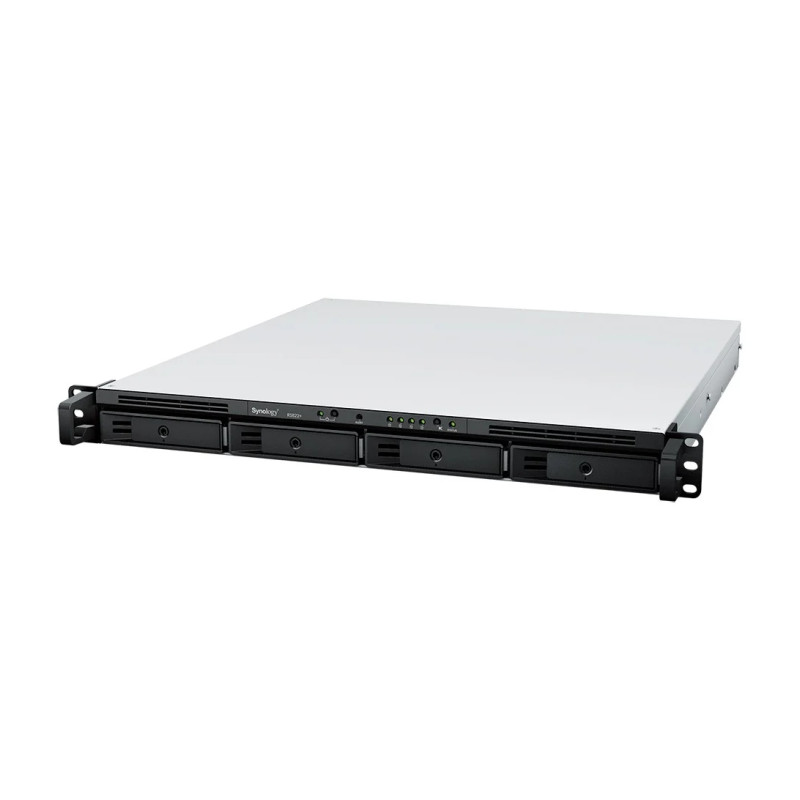

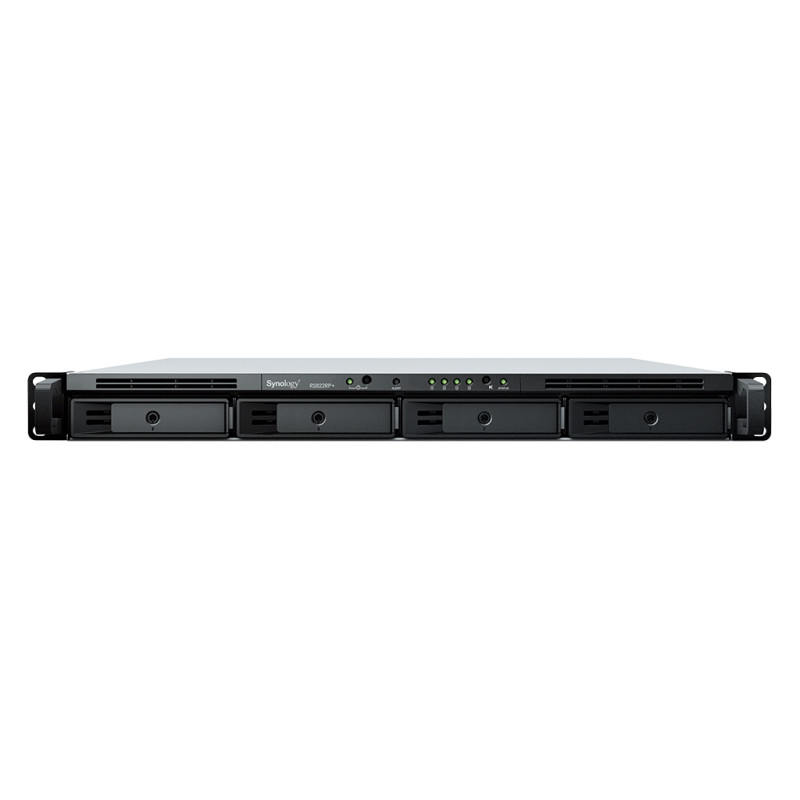

– The compact 1U 4-bay Synology RackStation with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses
BULIT FOR RELIABILITY
– It comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing
– Two units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime
– Furthermore, the RS822RP+ features a redundant power supply for an extra edge in service continuity
ROOM FOR EXPANSION
– Easily adjust to match your usage environment, whether it needs performance, faster networking, or higher storage capacity
ALL-IN-ONE DATA MANAGEMENT PLATFORM
– The RS822RP+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance
EDGE STORAGE FOR DISTIBUTED TEAMS
– Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations
MULTI-ENDPOINT DATA PROTECTION
– Design an effective backup strategy to maximize system availability with a host of native and license-free solutions
SMART SURVEILLANCE FOR SMALL DEPLOYMENTS
– Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises
POWERED BY SYNOLOGY DSM
– Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system
Hardware Specifications
CPU
– CPU Model: AMD Ryzen V1500B
– CPU Quantity: 1
-CPU Architecture: 64-bit
– CPU Frequency: 4-core 2.2 GHz
– Hardware Encryption Engine (AES-NI): Yes
MEMORY
– System Memory: 2GB DDR4 ECC SODIMM
– Memory Module Pre-installed: 2GB (2GB ×1)
– Total Memory Slots: 2
– Maximum Memory Capacity: 32GB (16GB ×2)
STORAGE
– Drive Bays: 4
– Maximum Drive Bays with Expansion Unit: 8 (RX418 ×1)
– Compatible Drive Type:
* 3.5″ SATA HDD
* 2.5″ SATA SSD
– Hot Swappable Drive: Yes
EXTERNAL PORTS
– RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
– USB 3.2 Gen 1 Port: 2
– eSATA Port: 1
PCIe
– PCIe Expansion: 1× Gen3 x8 slot (x4 link)
FILE SYSTEM
– Internal Drives: Btrfs, EXT4
– External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
APPEARANCE
– Form Factor (RU): 1U
– Size (H×W×D): 44×480×518.6 mm
– Weight: 8.0 kg
– Rack Installation Support: 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02)
* The rail kit is sold separately
OTHERS
– System Fan: 40×40 mm ×2 pcs
– Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
– Power Recovery: Yes
– Noise Level: 38.8 dB(A)
– Scheduled Power On / Off: Yes
– Wake on LAN / WAN: Yes
– Power Supply Unit / Adapter: 150 W
– Redundant Power Supply: Yes
– AC Input Power Voltage: 100 V to 240 V AC
– Power Frequency: 50/60 Hz, Single Phase
– Power Consumption:
* 47.69 W (Access)
* 16.7 W (HDD Hibernation)
– British Thermal Unit:
* 162.83 BTU/hr (Access)
* 57.02 BTU/hr (HDD Hibernation)
TEMPERATURE
– Operating Temperature: 0C to 35C (32F to 95F)
– Storage Temperature: -20C to 60C (-5F to 140F)
– Relative Humidity: 5% to 95% RH
CERTIFICATION
– FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL
ENVIRONMENT
– RoHS Compliant
PACKAGIMNG CONTENT
1× Main Unit
1× Accessory Pack
2× AC Power Cord
1× Quick Installation Guide
OPTIONAL ACCESSORIES
– DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
– Expansion Units: RX418
– 3.5″ SATA HDD: HAT5300
– 2.5″ SATA SSD: SAT5210
– M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
– M.2 SSD Adapter Card: M2D20
– 25GbE Network Interface Card: E25G21-F2
– 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
– Rail Kit Sliding: RKS-02
– Rail Kit Mounted: RKM114
– VisualStation: VS360HD
– Surveillance Device License Pack
DSM Specifications
STORAGE MANAGEMENT
– Maximum Single Volume Size: 108 TB
* Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored
* Each internal volume (may consist of multiple drives) is expandable up to 108TB
– Maximum Internal Volume Number: 64
– SSD Read / Write Cache (White Paper): Yes
– SSD TRIM: Yes
– Supported RAID Type: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
– RAID Migration: Basic to RAID 1, Basic to RAID 5, RAID 1 to RAID 5, RAID 5 to RAID 6
– Volume Expansion with Larger HDDs: Synology Hybrid RAID, RAID 1, RAID 5, RAID 6, RAID 10
– Volume Expansion by Adding a HDD: Synology Hybrid RAID, JBOD, RAID 5, RAID 6 (with Expansion Unit)
– Global Hot Spare Supported RAID Type: Synology Hybrid RAID, RAID 1, RAID 5, RAID 6 (with Expansion Unit), RAID 10 (with Expansion Unit)
FILE SERVICES
– File Protocol: SMB/AFP/NFS/FTP/WebDAV
– Maximum Concurrent SMB/AFP/FTP Connections: 500
– Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion): 2.000
– Windows Access Control List (ACL) Integration: Yes
– NFS Kerberos Authentication: Yes
ACCOUNT & SHARED FOLDER
– Maximum Local User Accounts: 2.048
– Maximum Local Groups: 256
– Maximum Shared Folder: 512
– Maximum Shared Folder Sync Tasks: 16
HYBRID SHARE
– Hybrid Share Folder Number: 10
HIGH AVAILABILITY
– Synology High Availability: Yes
LOG CENTER
– Syslog Events per Second: 800
VIRTUALIZATION
– VMware vSphere with VAAI: Yes
– Windows Server 2016: Yes
– Windows Server 2019: Yes
– Citrix Ready: Yes
– OpenStack: Yes
GENERAL
– Networking Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
– Supported Browsers: Google Chrome, Firefox, Microsoft Edge, Safari
Add-on Packages
– Antivirus by McAfee (Trial): Yes
– Central Management System: Yes
– Document Viewer: Yes
– Video Station: Yes
SYNOLOGY CHAT
– Maximum Number of Concurrent Users: 150
DOWNLOAD STATION
– Maximum Concurrent Download Tasks: 80
SAN MANAGER
– Maximum iSCSI Target Number: 128
– Maximum LUN: 256
– LUN Clone/Snapshot, Windows ODX: Yes
SYNOLOGY MailPlus / MailPlus SERVER
– Free Email Accounts: 5 (Licenses required for additional accounts)
– Maximum Number of Concurrent Users: 150
– Maximum Server Performance: 1.484.000 emails per day, approx. 45GB
MEDIA SERVER
– DLNA Compliance: Yes
SYNOLOGY PHOTOS
– Facial Recognition: Yes
SNAPSHOT REPLICATION
– Maximum Snapshots per Shared Folder: 1.024
– Maximum of System Snapshots: 65.536
SURVEILLANCE STATION
– Maximum IP cam (Licenses required): 40 (including 2 Free License)
– Total FPS (H.264):
* 1200 FPS @ 720p (1280×720)
* 800 FPS @ 1080p (1920×1080)
* 350 FPS @ 3M (2048×1536)
* 280 FPS @ 5M (2591×1944)
* 170 FPS @ 4K (3840×2160)
– Total FPS (H.265):
* 1200 FPS @ 720p (1280×720)
* 1200 FPS @ 1080p (1920×1080)
* 600 FPS @ 3M (2048×1536)
* 480 FPS @ 5M (2591×1944)
* 200 FPS @ 4K (3840×2160)
SYNOLOGY DRIVE
– Recommended Number of Concurrent Sync Clients: 550 (the number of connections that can be maintained when the recommended number of hosted files was reached)
– Recommended Number of Hosted Files: 50.000.000 (applies to files indexed or hosted by Synology Drive
SYNOLOGY OFFICE
– Maximum Users: 1.800
VIRTUAL MACHINE MANAGER
– Recommended Virtual Machine Instances: 8 (Learn more)
– Recommended Virtual DSM Number (Licenses required): 8 (including 1 Free License)
VPN SERVER
– Maximum Connections: 40
