All-in-one data management platform
-The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
– Highlights
* High Performance: Over 2,103/1,074 MB/s sequential read/writethroughput supports stable data transfers1
* Easy Expansion
– Scale up to 8 drives with one Synology RX418 Expansion Unit2
* Flexible Connectivity
-Four 1GbE ports support network failover and load balancing, with optional 10/25GbE expansions available3
* SSD Cache Support
– Boost random IOPS performance with optional SSD cache4
Flexible and Versatile Storage for Effective Data Management

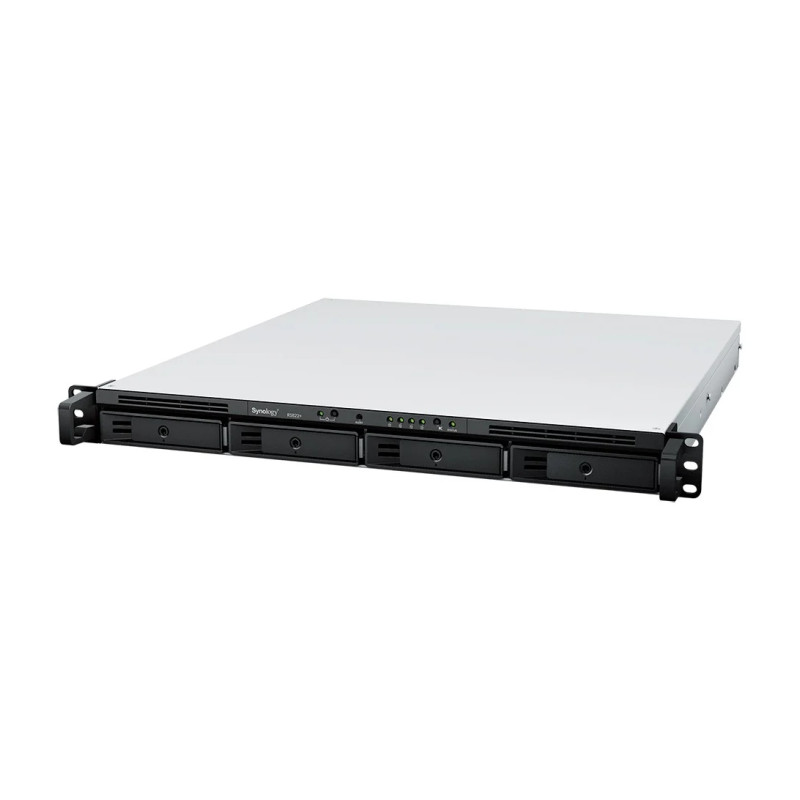

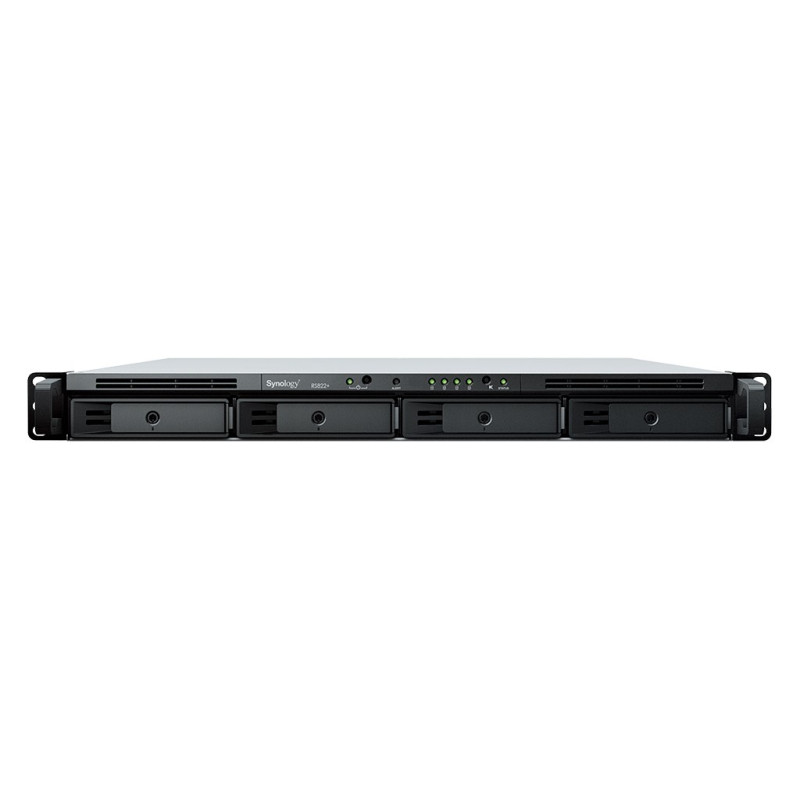

– Synology RackStation RS822+/RS822RP+ is a 4-bay rackmount NAS enclosed in a compact 1U chassis
– Running the powerful Synology DiskStation Manager (DSM) operating system, it is ideal for data backup, sharing and synchronization
– suitable for branch offices and small and medium-sized businesses with everincreasing data management needs
Versatile Storage for Any Purpose
– comes out of the box with intuitive and comprehensive file management, media organization, and backup options, making it an ideal edge storage solution for medium and large studios or a comprehensive data management platform for retail and hospitality settings
* Up to 2,103 MB/s sequential read and 1,074 MB/s sequential write performance1 enables fast file sharing, syncing, streaming, and backup for multiple users
* Supports 4 x 3.5″ or 2.5″ SATA HDD/SSD,5 with the option to expand to 8 drives with a Synology RX418 expansion unit
* Up to 32 GB DDR4 ECC memory for protection against potential crashes and inadvertent changes in data through automatic correction of data errors
* Accommodate multiple streams or transfer tasks with four Gigabit RJ-45 ports, which can be bonded using Link Aggregation to provide automatic network failover and load balancing
* Adjust your storage platform as more demanding needs arise with an optional 10GbE SFP+/RJ-45 or 25GbE SFP28 add-in network card, an M.2 SSD adapter card, or a M.2 NVMe SSD & 10GbE combo adapter card via the PCIe 3.0 slot3
* Further bolstering dependability, the RS822RP+ is equipped with a redundant power supply
Built for Data Protection and Integrity
* Advanced snapshot technology provides schedulable and near-instantaneous data protection for shared folders and LUNs
* File and folder-level data restoration enables recovery of specific files or folders
* Flexible storage quota system helps admins manage available space by specifying storage limits for shared folders
* File self-healing detects and recovers corrupted files using mirrored metadata and RAID configurations
* Inline compression minimizes storage consumption and extends the life of drives by compressing data before it is written to the storage pool
Complete Data and Device Backup Solutions
* Active Backup Suite consolidates backup tasks and offers rapid restoration of Windows and Linux endpoints, VMs, Synology systems, and SaaS applications
* Snapshot Replication creates point-in-time copies of shared folders and LUNs to protect them from accidental modifications or ransomware incidents
* Hyper Backup backs up your NAS data to multiple destinations securely and efficiently with integrity checks and powerful deduplication, compression, and versioning options
* C2 Storage for Hyper Backup offers a dedicated secure public cloud destination for Synology NAS backup data
File Sharing and Synchronization for Hybrid Teams
– suitable for deployment as an edge server to provide convenient and effective file access, sharing, and synchronization across multiple sites
* Wide network protocol support ensures seamless file sharing experience across Windows, Mac, and Linux platforms, while compatibility with Windows AD and LDAP enables easy integration into any existing network environment
* Hybrid Share combines reliable on-premises storage and efficient syncing of shared folders in the cloud to enable seamless cross-site synchronization and local access at LAN speed
* Synology Active Insight lets you monitor system performance and health, login activities, and backup task status for all your Synology servers safely in the cloud, with automated alerts and notifications in case of potential issues or suspicious events
* Cloud Sync keeps your Dropbox, Google Drive, Microsoft OneDrive, Baidu, and Box storage in sync with your RackStation
* Seamless file sharing capability is combined with a high level of security, including HTTPS support, a built-in firewall, and multiple IP and account intrusion auto-blocking mechanisms
Powerful Collaboration and Sharing Tools
* Synology Drive is a cloud file management solution that supports file sharing, remote data access, cross-device and cross-site synchronization, on-demand file restoration, and backup
* The Synology Office extension lets users collaborate on documents, spreadsheets, and presentation slides in real time, supported by convenient options such as file versioning for easy restoration and password protection
* Synology Photos serves as a media organization hub for enthusiasts and professionals looking to efficiently manage and share their photos and videos through intuitive browsing options and secure sharing methods
Private Video Surveillance
– support for up to 40 IP cameras
– 8,300+ supported camera models
– ONVIF support for a broader selection of cameras
– Private, subscription-free storage of recordings
– Access through web browsers, desktop clients, or mobile apps
– Event-based rules to trigger specific actions
– Email, SMS, and push notification options
– Safeguard critical footage by dual recording to C2 Surveillance
HARDWARE SPECIFICATIONS
– CPU: AMD Ryzen V1500B quad-core (8-thread) 2.2 GHz
– Hardware encryption engine: AES-NI
– Memory: 2 GB DDR4 ECC SODIMM (expandable up to 32 GB)
– Compatible drive types: 4 x 3.5″ or 2.5″ SATA HDD/SSD (drives not included)
– Hot swappable drives: Yes

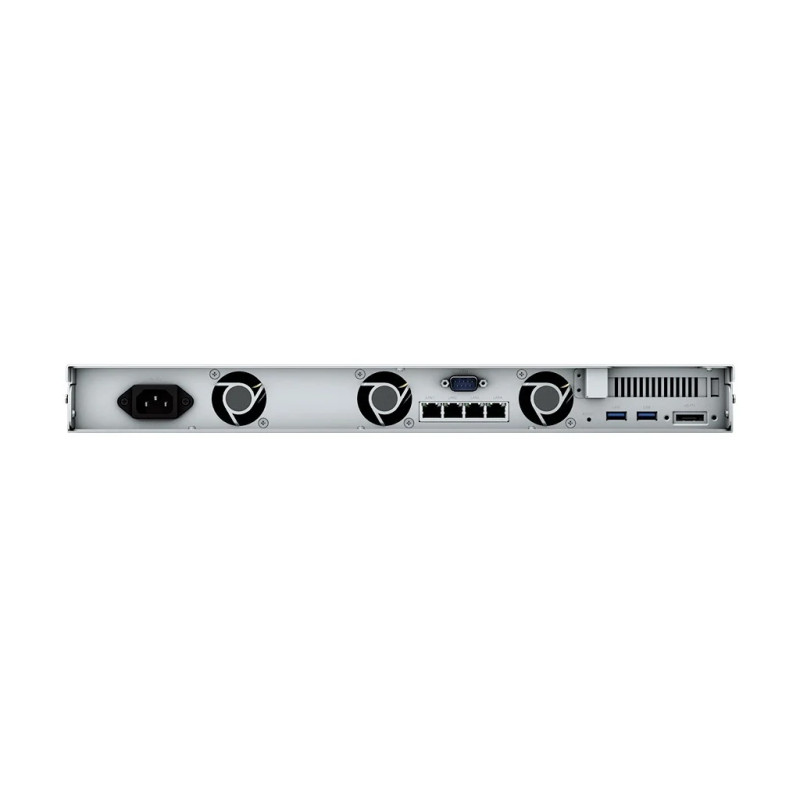

– External ports:
* 2 x USB 3.2 Gen 1 ports
* 1 x Expansion port (eSATA)

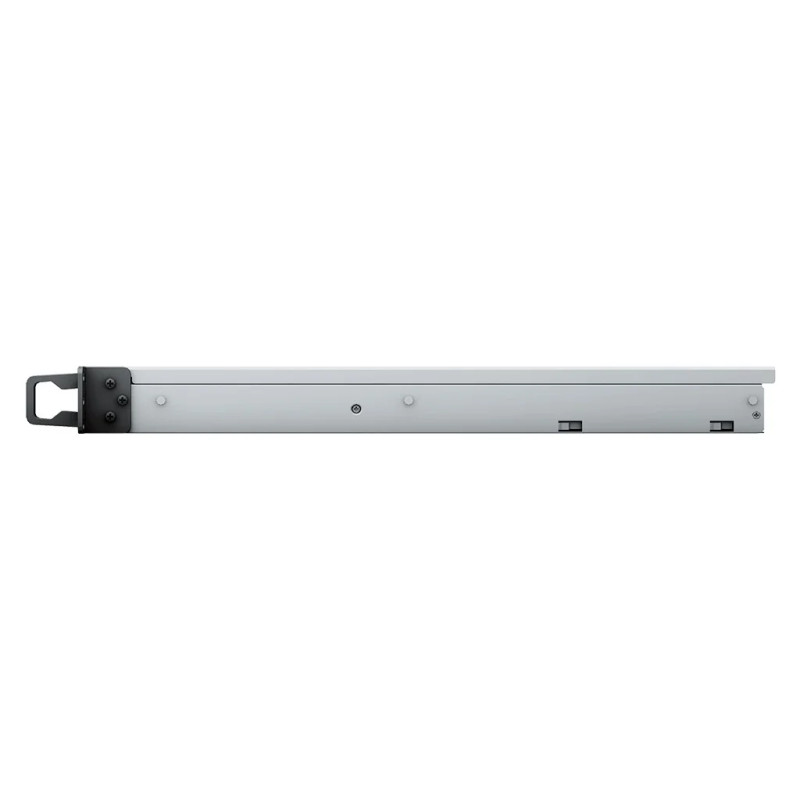

– Form factor: Rackmount 1U
– Size (HxWxD)
* RS822+: 44 x 430.5 x 457.6 mm/44 x 480 x 492.6 mm (with server handles)
* RS822RP+: 44 x 430.5 x 483.6 mm/44 x 480 x 518.6 mm (with server handles)
– Weight:
* RS822+: 6.4 kg
* RS822RP+: 8.0 kg
– LAN ports: 4 x 1GbE RJ-45
– Wake on LAN/WAN: Yes
– PCIe expansion:
* 1 x Gen3 4-lane x8 slot
* High-performance network interface card support
* M.2 NVMe/SATA SSD adapter card support
– Scheduled power on/off: Yes
– System fans:
* RS822+: 3 x (40 x 40 x 20 mm)
* RS822RP+: 2 x (40 x 40 x 20 mm)
– AC input power voltage: 100 V to 240 V AC
– Power frequency: 50/60 Hz, single phase
– Operating environment:
* Temperature: 0°C to 35°C (32°F to 95°F)
* Relative humidity: 8% to 80% RH
– Storage environment:
* Temperature: -20°C to 60°C (-5°F to 140°F)
* Relative humidity: 5% to 95% RH
– Maximum operating altitude: 5,000 m (16,400 ft)
DSM Specifications
– Networking protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP)
– File systems:
* Internal: Btrfs, ext4
* External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
– Supported RAID types: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
– Storage management:
* Max. single volume size: 108 TB
* Max. number of system snapshots: 65,5369
* Max. number of internal volumes: 64
– SSD cache:
* Read/write cache support
* M.2 NVMe and 2.5″ SATA SSD support
– File sharing capabilities:
* Max. number of local user accounts: 2,048
* Max. number of local groups: 256
* Max. number of shared folders: 512
* Max. number of concurrent SMB/NFS/AFP/FTP connections: 50010
– Privileges: Windows Access Control List (ACL) and application privileges
– Directory services: Connects with Windows AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials
– Virtualization: VMware vSphere, Microsoft Hyper-V, Citrix, OpenStack, and Kubernetes
– Security: Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let’s Encrypt support, and HTTPS (customizable cipher suite)
– Supported browsers: Google Chrome, Firefox, Microsoft Edge, Safari 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android 11.0 and later) on tablets
– Interface languages English, Deutsch, Français, Italiano, Espanol, Dansk, Norsk, Svensk, Nederlands, ???????, Polski, Magyar,Portugues do Brasil, Portugues Europeu, Türkçe, Česky)
Packages and Applications
FILE SERVER & SYNCHRONIZATION
– Drive: Synchronizes files across Windows, macOS, Linux, Android, and iOS. The built-in cross-platform portal allows access to data anytime and anywhere
* Max. number of hosted files: 50,000,000
* Max. number of concurrent connections for PC clients: 550
– File Station: Provides virtual drives, remote folders, Windows® ACL editor, compression/extraction of archived files, bandwidth control for specific users/groups, creation of sharing links, and transfer logs–
– Hybrid Share: Efficiently synchronizes files across sites by keeping shared data on Synology C2 Storage and streaming files to Synology NAS worldwide on request. Frequently requested files are cached at each site for low-latency access
– FTP Server: Supports bandwidth control for TCP connections, custom FTP passive port ranges, anonymous FTP, FTP over TLS/SSL and SFTP protocols, network booting with TFTP and PXE support, and transfer logs
– Presto File Server: Enables high-speed data transfer over WAN between Synology NAS and desktop platforms through the exclusive SITA technology
– Cloud Sync: Offers one or two-way synchronization with public cloud storage providers including Alibaba Cloud OSS, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers and Yandex Disk
– Universal Search: Search through files, metadata, and more on your NAS. Integration with Windows Search and macOS Spotlight makes it easy to find files
– Migration Assistant: Migrates data, system setting, and applications seamlessly from one Synology NAS to another to ensure maximum service availability
SAN STORAGE & VIRTUALIZATION
– SAN Manager:
* Max. number of iSCSI targets: 128
* Max. number of LUNs: 256
* LUN clone/snapshot support
– Virtual Machine Manager: Supports running Windows, Linux, and Virtual DSM-based virtual machines on Synology NAS
DATA PROTECTION & BACKUP SOLUTIONS
– Hyper Backup: Supports local backup, network backup, and data backup to other devices, Synology NAS, and public clouds including C2 Storage
– Backup tools:
* DSM configuration backup, macOS Time Machine support, Synology Drive Client desktop application
* Shared folder sync supports a maximum of 32 tasks
– Snapshot Replication:
* Max. number of snapshots for shared folders: 1,024
* Max. number of replications: 32
– Synology High Availability: Reduces service downtime by combining two identical NAS into a high-availability cluster
– Active Backup for Business An all-in-one backup solution designed for heterogeneous business IT environments. It enables IT admins to remotely manage and protect PCs, servers, Synology systems, and VMs from one centralized console
– Active Backup for Google Workspace: Supports backup and restoration of Google Workspace My Drive, Team Drive, Gmail, Contacts, and Calendar
– Active Backup for Microsoft 365: Supports backup and restoration of Microsoft 365 OneDrive for Business, Outlook, Contacts, and Calendar
PRODUCTIVITY & COLLABORATION
– Collaboration tools: Collaborate with instant messaging service Synology Chat, online documents editor Synology Office, and scheduling assistant Synology Calendar:
* Max. number of concurrent users for Chat: 150
* Max. number of users for Office: 1,800
* Calendar supports CalDAV and access via mobile devices
– Note Station: A note taking platform that supports rich text, note organization and versioning, encryption, sharing, media embedding, and attachments
– Synology MailPlus Server: A secure, reliable, and private mail solution featuring high-availability, load balancing, security, and filtering options
– Synology MailPlus: An intuitive webmail interface for Synology MailPlus Server with configurable mail labels, filters, and user interface
MULTIMEDIA
– Synology Photos: An efficient photo management solution for professional and amateur photographers. Automated tools allow users to group, filter, organize, and share content while keeping their photos safe and secure
– Other packages: Video Station, Audio Station, and iTunes Server
SURVEILLANCE
– Surveillance Station: Max. number of IP cameras: 40, for a total of 1,200 FPS at 720p (H.264)
MANAGEMENT & ADMINISTRATION
– Synology Directory Server: Provides a flexible and cost-effective domain controller solution
– Central Management System Provides a single interface to manage and monitor multiple Synology NAS
– VPN Server:
* Max. number of connections: 40
* Supported VPN protocols: PPTP, OpenVPN, L2DTP/IPSec
– Active Insight: Monitor health statistics, login activity, and backup statuses for your Synology servers worldwide, and receive notifications and advice from our centralized cloud-hosted management platform
– Storage Analyzer: Displays volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, large files, most recently modified files, and least recently accessed files
– Antivirus Essential: Provides full system scans, scheduled scans, white list customization, and auto-update of virus definitions
– Web Station: Enables hosting for up to 30 websites with support for PHP/MariaDB® and 3rd-party applications
– Other packages: DNS Server, RADIUS Server, and Log Center
OTHERS
– iOS/Android applications: Synology Drive, Synology MailPlus, Synology Secure SignIn, Synology Chat, Synology LiveCam, Synology Active Insight, DS cam, DS file, DS finder, and DS note
– Other packages: Additional 3rd-party packages are available in the Package Center
Environment and Packaging
– Package contents
* 1 x RS822+/RS822RP+ main unit
* 1 x Quick Installation Guide
* 1 x Accessory pack
* 1 x AC power cord (RS822+)/2 x AC power cord (RS822RP+)
