STREAMLINE YOUR DATA MANAGEMENT
– With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and homelab owners looking to meet their daily data management, sharing, synchronization, and backup needs
SPACE-SAVING DESIGN FOR FLEXIBLE DEPLOYMENT
– Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack
– Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment
FLEXIBLE NETWORKING OPTIONS
– Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules
– Built-in connectivity: Dual Gigabit ports with support for network failover and load balancing deliver fast and dependable performance out of the box
– Easy upgrade to 10GbE: Add an E10G22-T1-Mini Network Upgrade Module through the easily accessible slot to instantly enable faster networking
ALL-IN-ONE DATA MANAGEMENT PLATFORM
– The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance
EDGE STORAGE FOR DISTIBUTED TEAMS
– Provide secure and convenient cross-platform file access, sharing, and synchronization across multiplelocations
MULTI-ENDPOINT DATA PROTECTION
– Design an effective backup strategy to maximize system availability with a host of native and license-free solutions
SMART SURVEILLANCE FOR SMALL DEPLOYMENTS
– Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises
POWERED BY SYNOLOGY DSM
– Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system
– File Management: Manage, sync, and share files from multiple devices through a centralized platform
– Security: Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions
– System Administration: Manage the health of your deployments and centrally administer updates with ease
– User Management: Manage user accounts and devices throughout your business with powerful directory services
– Central Management System: Conveniently manage your fleet of Synology NAS from a centralized console
– Synology High Availability: Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications
Hardware Specifications
CPU
– CPU Model: AMD Ryzen R1600
– CPU Quantity: 1
– CPU Architecture: 64-bit
– CPU Frequency: 2-core 2.60GHz (base) / 3.10GHz (turbo)
– Hardware Encryption Engine (AES-NI): Yes
MEMORY
– System Memory: 2 GB DDR4 ECC
STORAGE
– Drive Bays: 4
– Compatible Drive Type:
* 3.5″ SATA HDD
* 2.5″ SATA SSD
– Hot Swappable Drive: Yes

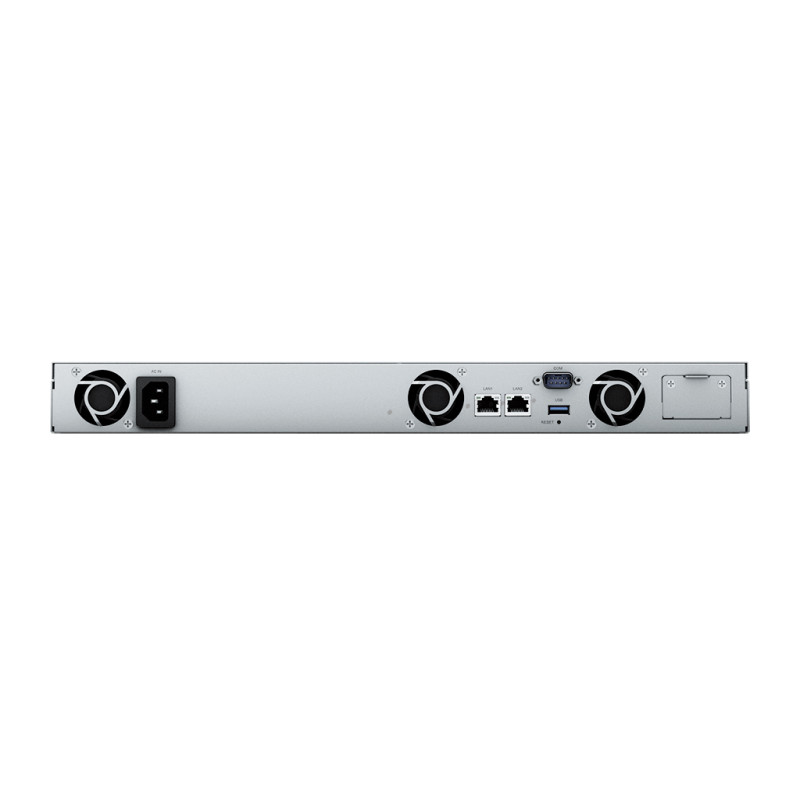

EXTERNAL PORTS
– RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
– USB 3.2 Gen 1 Port: 1
PCIe
– PCIe Expansion: 1× Gen3 x2 network upgrade slot
FILE SYSTEM
– Internal Drives: Btrfs, EXT4
– External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
APPEARANCE
– Form Factor (RU): 1U
– Size (H×W×D): 44×478×327.5 mm
– Weight: 4.38 kg
– Rack Installation Support (The rail kit is sold separately):
* 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02)
* 2-post 19″ rack (direct mounting)
OTHERS
– System Fan: 40×40 mm ×3 pcs
– Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
– Power Recovery: Yes
– Noise Level: 28.5 dB(A)
– Scheduled Power On / Off: Yes
– Wake on LAN / WAN: Yes
– Power Supply Unit / Adapter: 100 W
– AC Input Power Voltage: 100V to 240V AC
– Power Frequency: 50/60 Hz, Single Phase
– Power Consumption:
* 37.93 W (Access)
* 13.43 W (HDD Hibernation)
– British Thermal Unit:
* 129.42 BTU/hr (Access)
* 45.83 BTU/hr (HDD Hibernation)
TEMPERATURE
– Operating Temperature: 0C to 35C (32F to 95F)
– Storage Temperature: -20C to 60C (-5F to 140F)
– Relative Humidity 5% to 95% RH
CERTIFICATION
– FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC
ENVIRONMENT
– RoHS Compliant
PACKAGING CONTENT
– Main Unit ×1
– Accessory Pack ×1
– AC Power Cord ×1
– Quick Installation Guide
OPTIONAL ACCESSORIES
– 3.5″ SATA HDD: HAT5300
– 2.5″ SATA SSD: SAT5210
– 10GbE Network Upgrade Module: E10G22-T1-Mini
– Rail Kit Sliding: RKS-02
– Rail Kit Mounted: RKM114
– VisualStation: VS360HD
– Surveillance Device License Pack
DSM Specifications
STORAGE MANAGEMENT
– Maximum Single Volume Size: 108 TB
– Maximum Internal Volume Number: 64
– SSD Read / Write Cache (White Paper): Yes
– SSD TRIM: Yes
– Supported RAID Type: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
– RAID Migration: Basic to RAID 1, Basic to RAID 5, RAID 1 to RAID 5, RAID 5 to RAID 6
– Volume Expansion with Larger HDDs: Synology Hybrid RAID, RAID 1, RAID 5, RAID 6, RAID 10
– Volume Expansion by Adding a HDD: Synology Hybrid RAID, JBOD, RAID 5
– Global Hot Spare Supported RAID Type: Synology Hybrid RAID, RAID 1, RAID 5
FILE SERVICES
– File Protocol: SMB/AFP/NFS/FTP/WebDAV
– Maximum Concurrent SMB/AFP/FTP Connections: 500
– Windows Access Control List (ACL) Integration: Yes
– NFS Kerberos Authenticatio: Yes
ACCOUNT & SHARED FOLDER
– Maximum Local User Accounts: 2,048
– Maximum Local Groups: 256
– Maximum Shared Folder: 512
– Maximum Shared Folder Sync Tasks: 8
HYBRID SHARE
– Hybrid Share Folder Number: 10
HIGH AVAILABILITY
– Synology High Availability: Yes
LOG CENTER
– Syslog Events per Second: 800
GENERAL
– Networking Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
– Supported Browsers: Google Chrome, Firefox, Microsoft Edge, Safari
Add-on Packages
– Antivirus by McAfee (Trial): Yes
– Central Management System: Yes
– Document Viewer: Yes
– Video Station: Yes
SYNOLOGY CHAT
– Maximum Number of Concurrent Users: 100
DOWNLOAD STATION
– Maximum Concurrent Download Tasks: 80
SAN MANAGER
– Maximum iSCSI Target Number: 128
– Maximum LUN: 256
– LUN Clone/Snapshot, Windows ODX: Yes
MEDIA SERVER
– DLNA Compliance: Yes
SYNOLOGY PHOTOS
– Facial Recognition: Yes
SNAPSHOT REPLICATION
– Maximum Snapshots per Shared Folder: 1.024
– Maximum of System Snapshots: 65.536
SURVEILLANCE STATION
– Maximum IP cam (Licenses required): 40 (including 2 Free License)
– Total FPS (H.264):
* 1200 FPS @ 720p (1280×720)
* 800 FPS @ 1080p (1920×1080)
* 350 FPS @ 3M (2048×1536)
* 280 FPS @ 5M (2591×1944)
* 170 FPS @ 4K (3840×2160)
– Total FPS (H.265):
* 1200 FPS @ 720p (1280×720)
* 1200 FPS @ 1080p (1920×1080)
* 600 FPS @ 3M (2048×1536)
* 480 FPS @ 5M (2591×1944)
* 200 FPS @ 4K (3840×2160)
SYNOLOGY DRIVE
– Recommended Number of Concurrent Sync Clients: 350 (the number of connections that can be maintained when the recommended number of hosted files was reached)
– Recommended Number of Hosted Files: 5.000.000 (applies to files indexed or hosted by Synology Drive – For file access through other standard protocols, refer to the File Services section above)
SYNOLOGY OFFICE
– Maximum Users: 200
VPN SERVER
– Maximum Connections: 40
