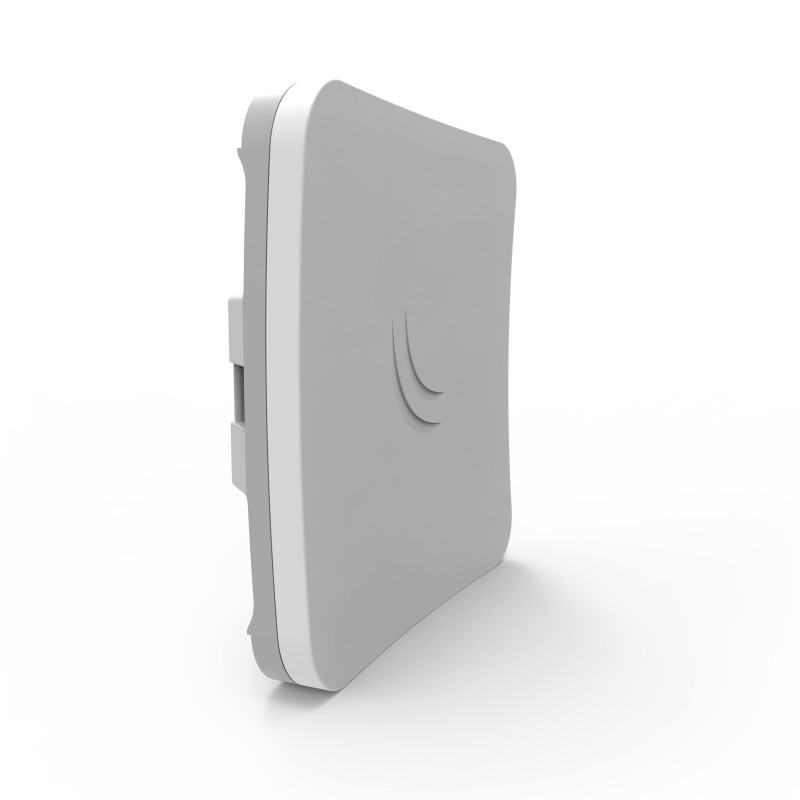

– The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna
– Perfect for point to point links of up to 12 kilometers or as a CPE unit
– It is compact, weatherproof and easy to mount

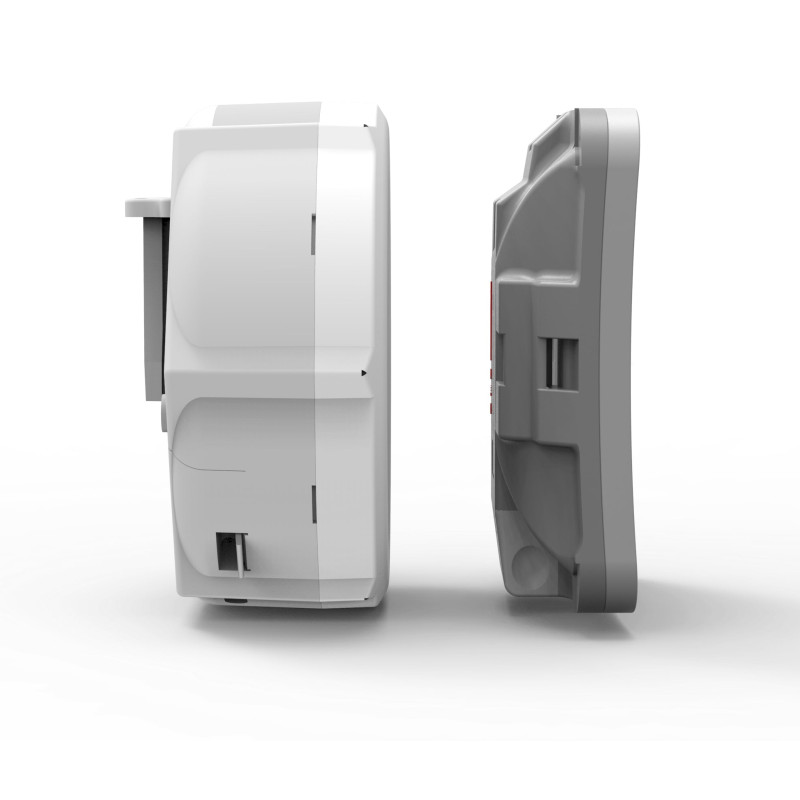

– The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced – the SXTsq is two times thinner (see photos for comparison)

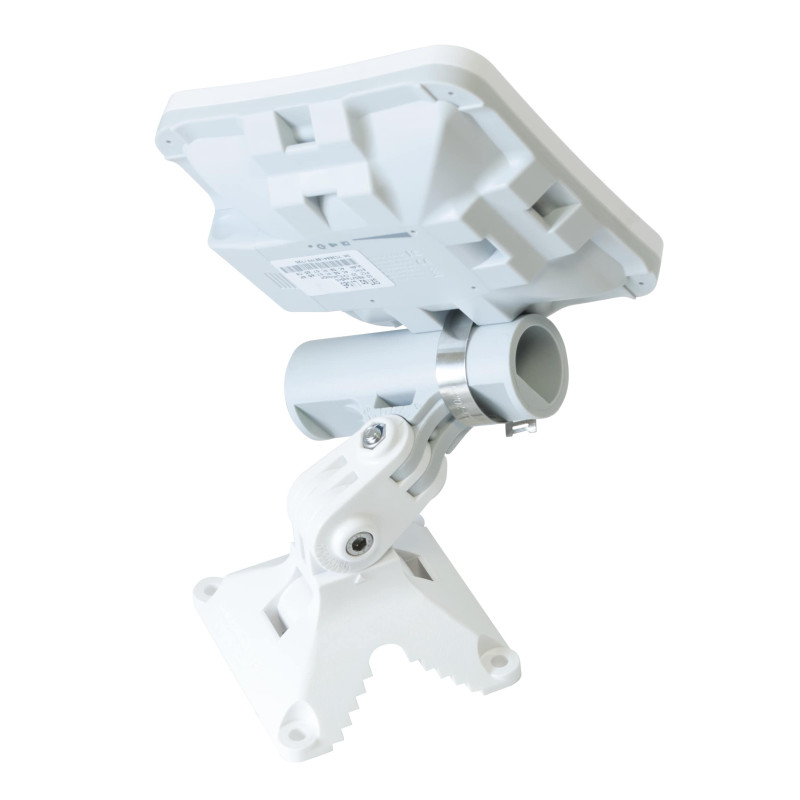

– The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product)
– SXTsq Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)
Specifications
– Architecture: MIPSBE
– CPU: AR9344
– CPU core count: 1
– CPU nominal frequency: 600 MHz
– Dimensions: 129×129×34mm
– License level: 3
– Operating System: RouterOS
– Size of RAM: 64 MB
– Storage size: 16 MB
– Storage type: FLASH
– Tested ambient temperature: -40C to 70C
POWERING
– PoE in: Passive PoE
– PoE in input Voltage: 10-30 V
– Number of DC inputs: 1 (PoE-IN)
– Max power consumption: 6 W
WIRELESS
– Wireless 5 GHz number of chains: 2
– Wireless 5 GHz standards: 802.11a/n
– Antenna gain dBi for 5 GHz: 16
– Wireless 5 GHz chip model: AR9344
ETHERNET
– 10/100 Ethernet ports: 1
INCLUDED PARTS
– 24V 0.38A power adapter
– Metal ring (one)
– PoE injector
