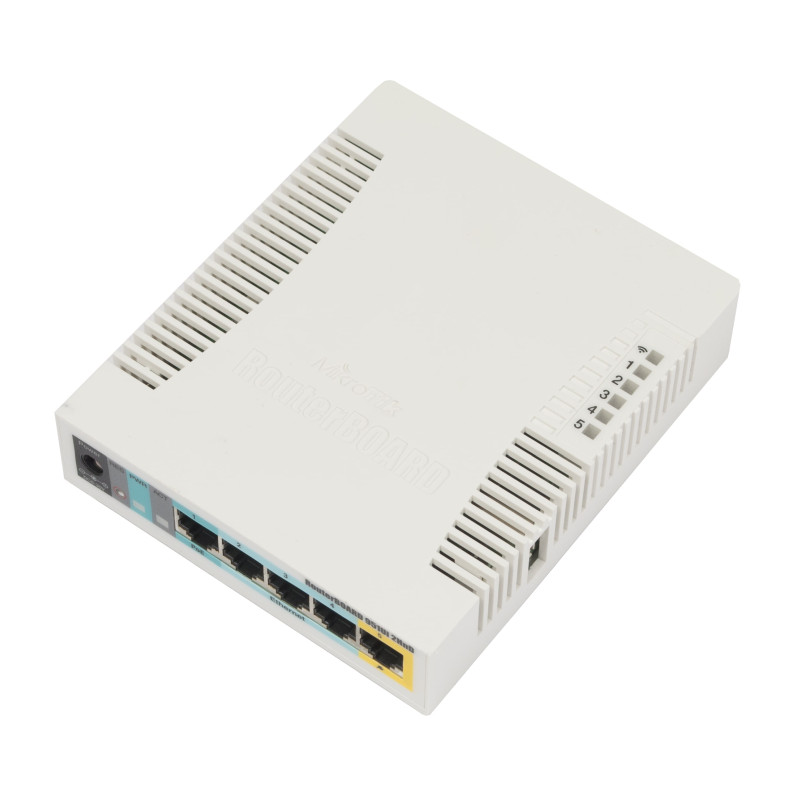

– The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power
– It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in
– It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 – it can power other PoE capable devices with the same voltage as applied
to the unit. Maximum load on the port is 500mA

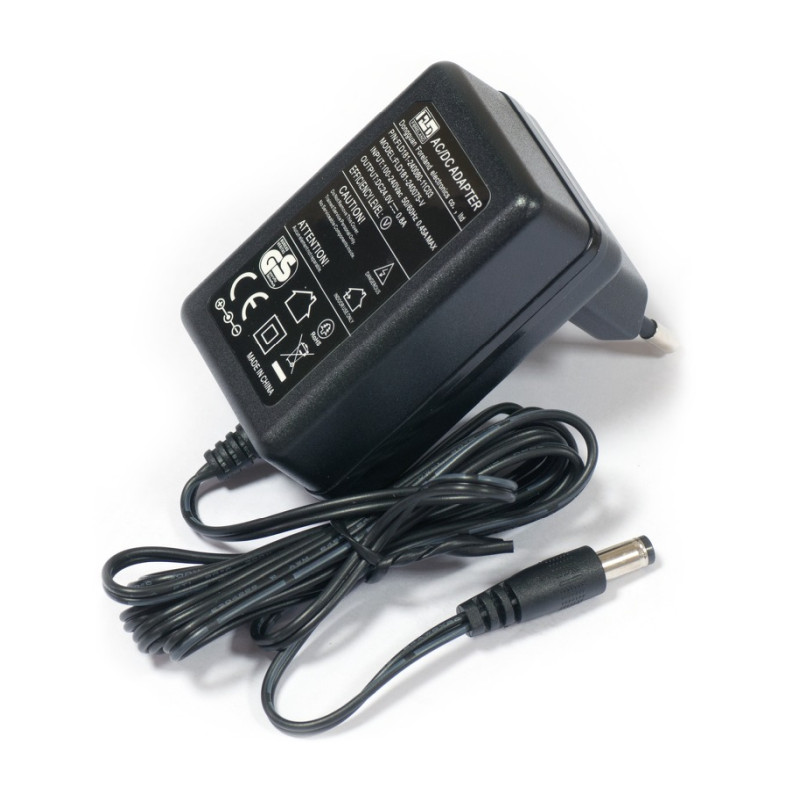

– Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter
Specifikacija
– CPU nominal frequency: 600 MHz
– CPU core count: 1
– Size of RAM: 128 MB
– 10/100 Ethernet ports: 5
– 10/100/1000 Ethernet ports: 0
– MiniPCI slots: 0
– MiniPCI-e slots: 0
– Wireless chip model: AR9344-DC3A
– Wireless standards: 802.11b/g/n
– Number of USB ports: 1
– Power Jack: 1
– 802.3af support: No
– Supported input voltage: 7 V – 31 V
– PoE in: Yes
– PoE out: Yes
– Voltage Monitor: No
– CPU temperature monitor: No
– PCB temperature monitor: No
– Dimensions: 113×138×29 mm
– Operating System: RouterOS
– Operating temperature range: -20C +50C
– License level: 4
– Antenna gain DBI: 2.5
– Current Monitor: No
– CPU: AR9344-DC3A
– Max Power consumption: Up to 7W
– SFP ports: 0
– SFP+ ports: 0
– USB slot type: USB type A
– Number of chains: 2
– Serial port: None
Wireless specifications (TX / RX)
6MBit/s: 30 / -96
54MBit/s: 25 / -80
MCS0: 30 / -96
MCS7: 23 / -78
