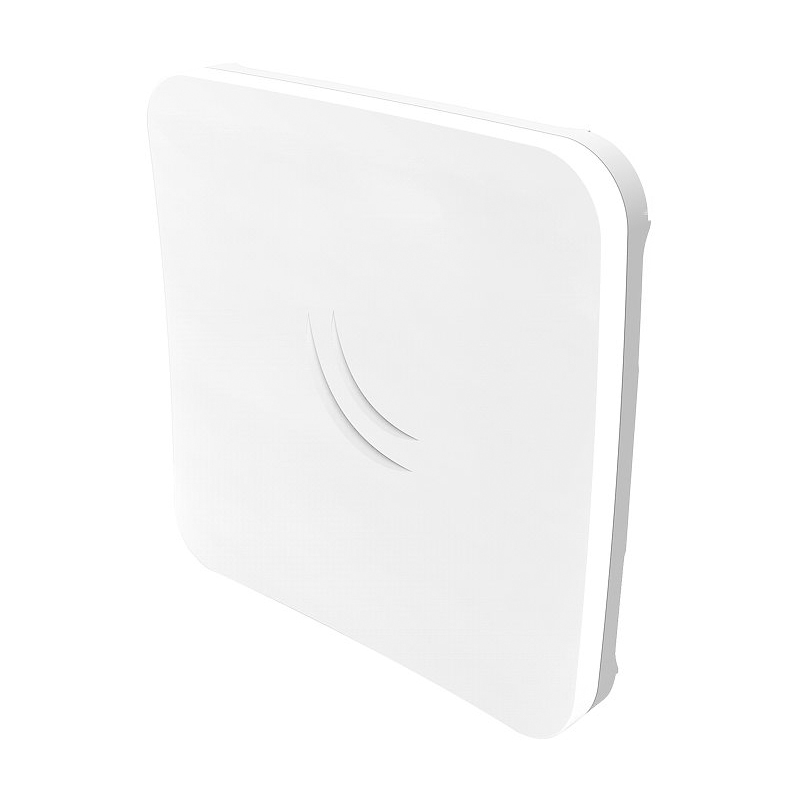

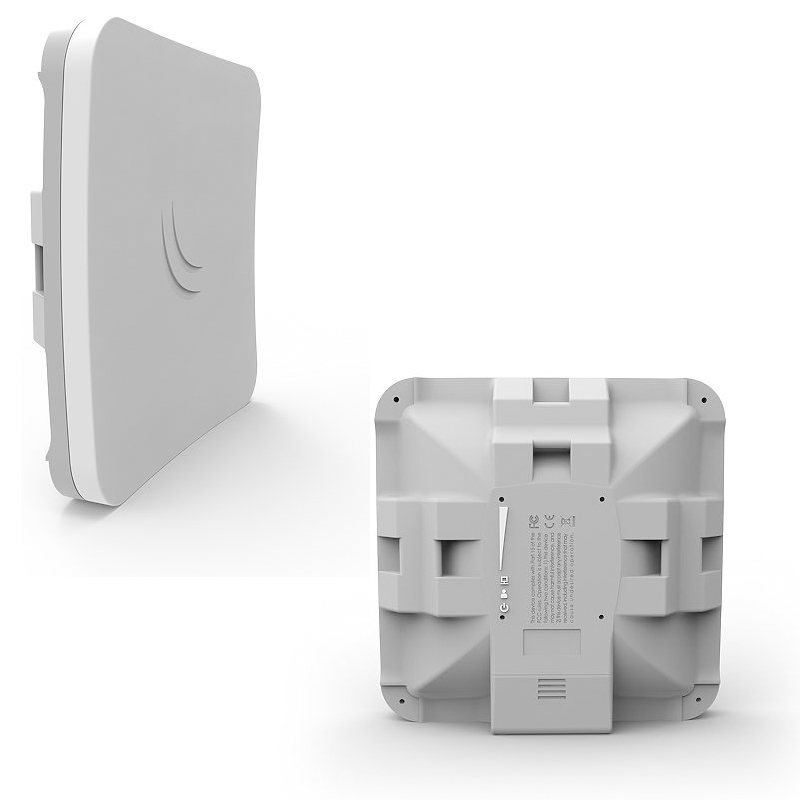

– The SXTsq Lite2 is a compact and lightweight outdoor wireless device with an integrated antenna
– Perfect for point-to-point links or as a CPE unit
– It is compact, weatherproof and easy to mount
– The SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced – the SXTsq is two times thinner
Specifications
– Architecture: MIPSBE
– CPU: QCA9533
– CPU core count: 1
– CPU nominal frequency: 650 MHz
– Dimensions: 129×129×34 mm
– License level: 3
– Operating System: RouterOS
– Size of RAM: 64 MB
– Storage size: 16 MB
– Storage type: FLASH
– Tested ambient temperature: -40C to +70C
POWERING
– Max Power consumption: 5W
– PoE in: Passive PoE
– PoE in input Voltage: 10-30 V
– Number of DC inputs: 1 (PoE-IN)

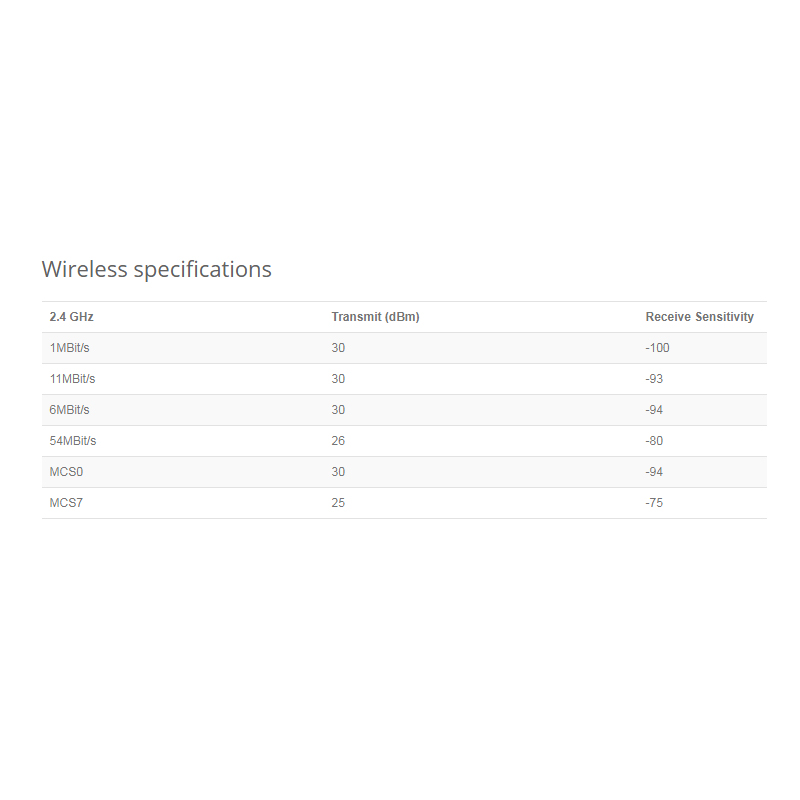

WIRELESS
– Wireless 2.4 GHz number of chains: 2
– Wireless 2.4 GHz standards: 802.11b/g/n
– Antenna gain dBi for 2.4 GHz: 10
– Wireless 2.4 GHz chip model: QCA9533
ETHERNET
– 10/100 Ethernet ports: 1
INCLUDED PARTS
– 24V 0.38A power adapter
– Metal ring (one)
– PoE injector
