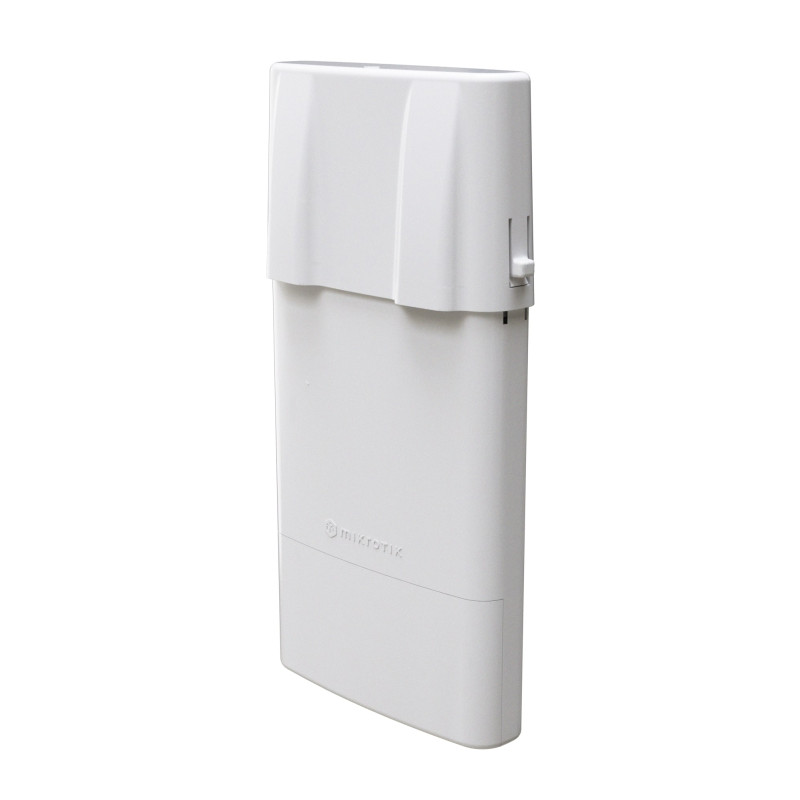

A Wi-Fi 6 upgrade of the popular NetBox 5. AP/CPE/Point-to-point – it can do it all!
– SMA connectors allow creating versatile omnidirectional access points and powerful point-to-point links.
– NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy SMA connectors.
That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!
– This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra

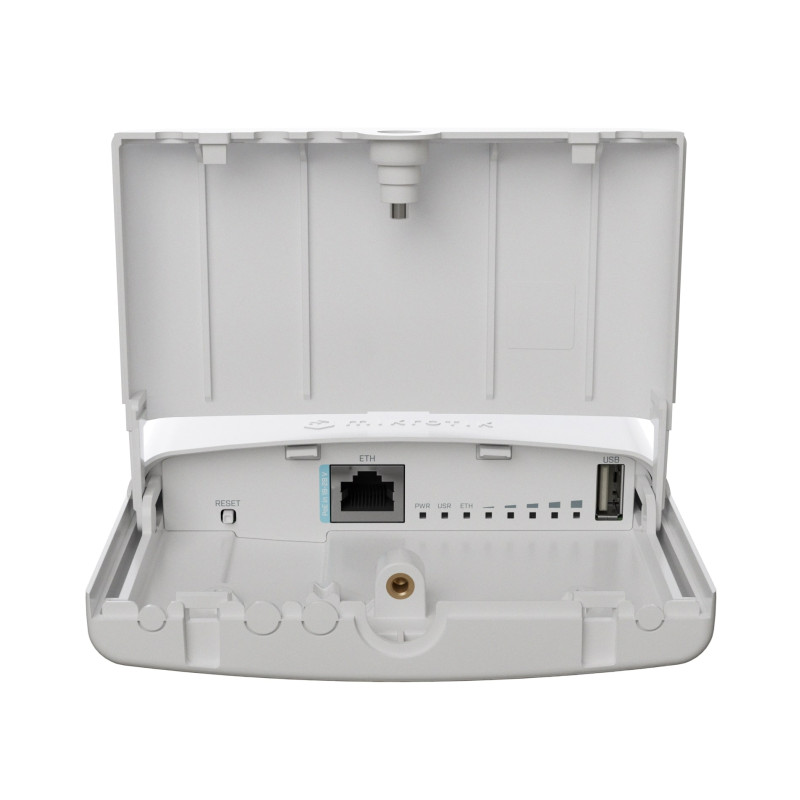

storage or other needs, and a Gigabit Ethernet port with PoE-in.We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount. If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs
Specifications
– Product code: L11UG-5HaxD-NB
– CPU Dual-Core: IPQ-5010 800 MHz
– CPU architecture: ARM
– Size of RAM: 256 MB
– Storage: 128 MB, NAND
– Number of 1G Ethernet ports: 1
– USB port 1
– USB 2.0 port type: A
– Wireless band: 5 GHz
– Wireless interface model: QCN-6102
– Wireless: 802.11a/n/ac/ax dual chain

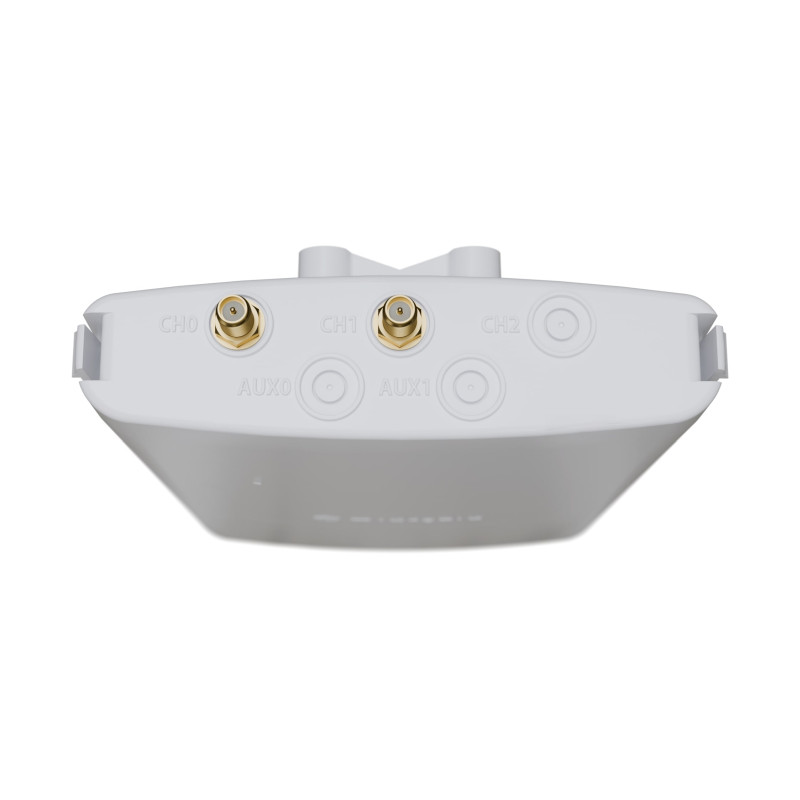

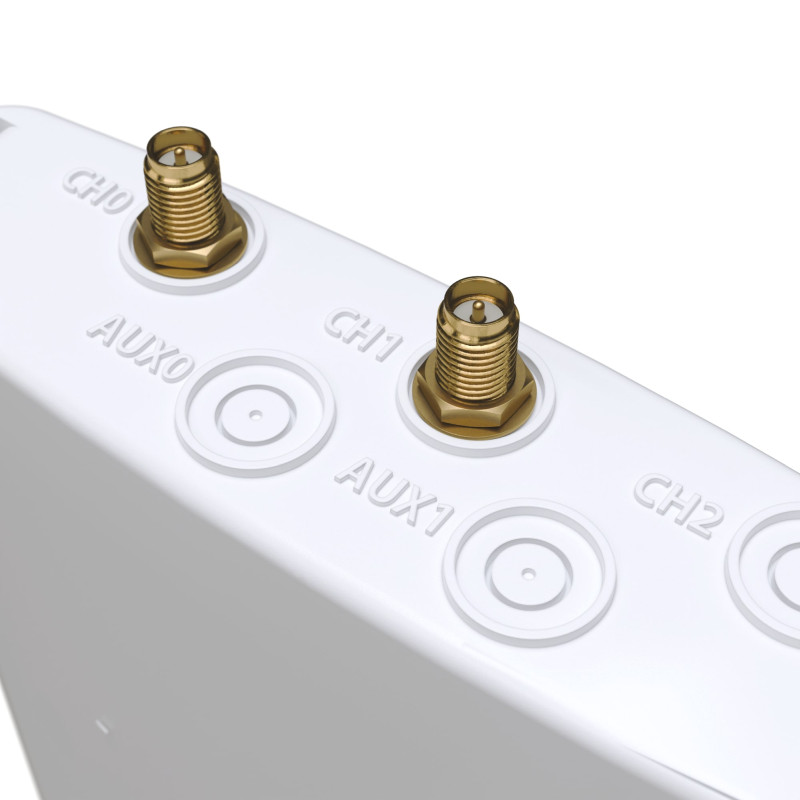

– Connector type: RP-SMA female (outside thread)
– Extras Beeper, signal and status LEDs, voltage and temperature sensors
– Dimensions: 245 x 121 x 50 mm
– Operating system: RouterOS v7, License level 4
– Operating temperature: -40°C to +70°
– PoE-In: Passive PoE
– PoE-in input Voltage: 18-28 V
– Max USB current: 1.5 A

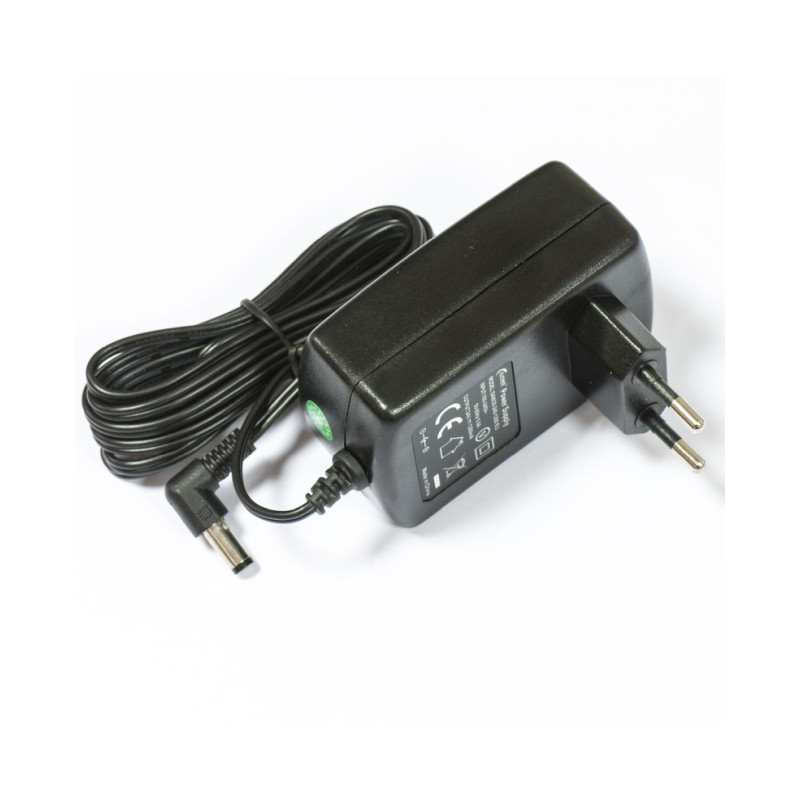

– Power adapter nominal voltage: 24 V
– Power adapter nominal current: 1.2 A
– Max power consumption (without attachments): 6 W
– Max power consumption: 15 W
