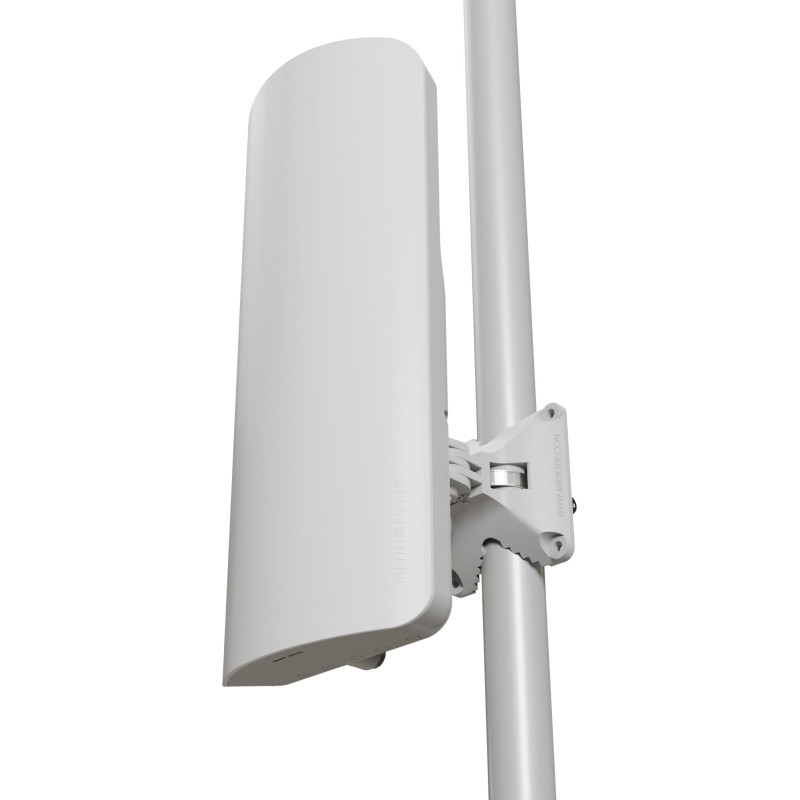

– A drop-in Wi-Fi 6 upgrade for the popular mANTBox dual-band sector antenna base stations. One powerful package for all your outdoor network needs, perfect for camps, stadiums and parks.
Managing outdoor wireless network has never been easier: mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!

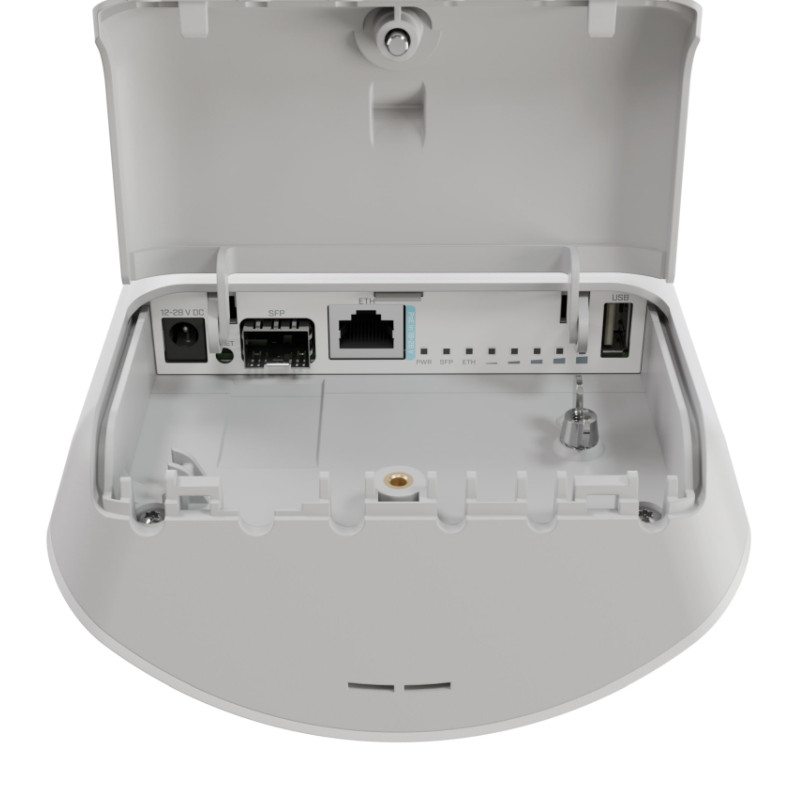

– A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.
– Upgrading your setup to Wi-Fi 6 offers multiple benefits:
– Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.
– Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks
– Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.
– Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

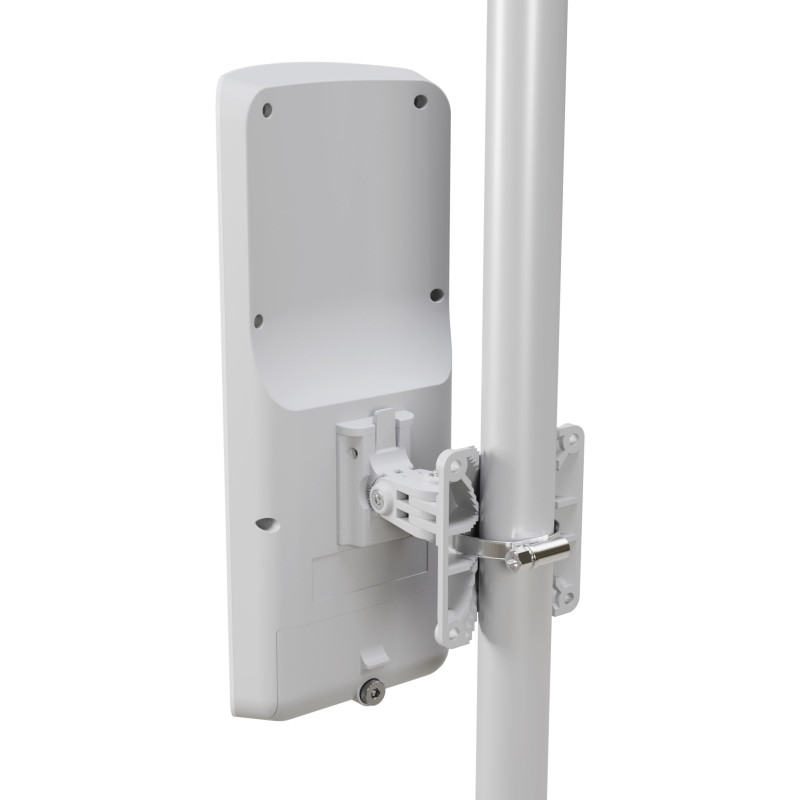

– mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.
Specifications
Details
– Product code: L22UGS-5HaxD2HaxD-15S
– Architecture: ARM 64bit
– CPU: IPQ-5010
– CPU core count: 2
– CPU nominal frequency: 800 MHz
– RouterOS license: 4
– Operating System: RouterOS v7
– Size of RAM: 256 MB
– Storage size: 128 MB
– Storage type: NAND
– MTBF: Approximately 200’000 hours at 25C
-Tested ambient temperature: -40°C to 70°C
Powering
– Number of DC inputs: 2 (DC jack, PoE-IN)
– DC jack input Voltage: 12-28 V
– Max power consumption: 21 W
– Max power consumption without attachments: 11 W
– Cooling type: Passive
– PoE in: Passive PoE
– PoE in input Voltage: 18-28 V
Wireless specifications
– Wireless 2.4 GHz Max data rate: 574 Mbit/s
– Wireless 2.4 GHz number of chains: 2
– Wireless 2.4 GHz standards: 802.11b/g/n/ax
– Antenna gain dBi for 2.4 GHz: 12
-Wireless 2.4 GHz chip model: IPQ-5010
– Wireless 2.4 GHz generation: Wi-Fi 6
– Wireless 5 GHz Max data rate: 2400 Mbit/s
– Wireless 5 GHz number of chains: 2
– Wireless 5 GHz standards: 802.11a/n/ac/ax
– Antenna gain dBi for 5 GHz: 15
– Wireless 5 GHz chip model: QCN-6102
– Wireless 5 GHz generation: Wi-Fi 6
Ethernet
– 10/100/1000 Ethernet ports: 1
Fiber
– SFP ports: 1 (2.5G supported)
Peripherals
– Number of USB ports: 1
– USB Power Reset: Yes
– USB slot type: USB type A
– Max USB current (A): 1.5
Other
– PCB temperature monitor: Yes
– Voltage Monitor: Yes
– Beeper: Yes
Certification & Approvals
– Certification: CE, FCC, IC, EAC, ROHS
– IP: 55
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 29 -96
54MBit/s 27 -80
MCS0 29 -96
MCS7 26 -75
MCS9 24 -70
MCS11 22 -67
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 26 -80
MCS0 28 -96
MCS7 25 -75
MCS9 23 -70
MCS11 22 -67
Included parts
– 24V 1.2A power adapter
– Gigabit PoE injector
– Hose clamp 1
– QMP
– K-41 fastening set
