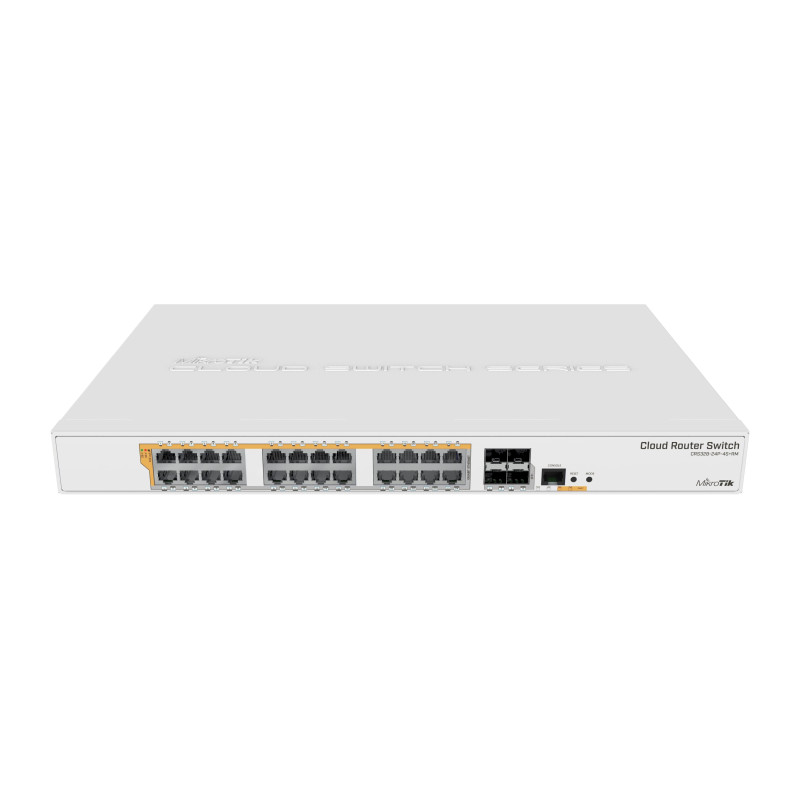

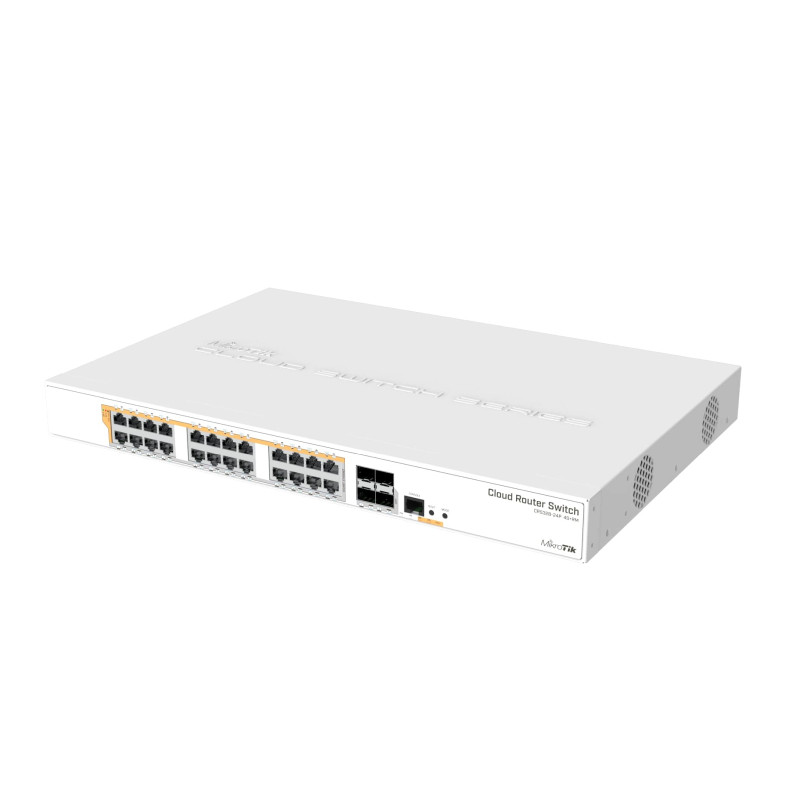

– CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing
– PoE-Out is passed over mode B pins (4,5+)(7,8-)
– The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included)
– CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in
– The device consumes up to 44 W leaving guaranteed 450 W (3×150 W per every 8 Ethernet ports) to power your PoE devices
– Each port can provide up to 30 W of power with any power output option you choose
– The device has a “Dual boot” feature that allows you to choose between two operating systems – RouterOS or SwOS
– If you prefer to have a simplified operating system with only switch specific features, use SwOS
– If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS
– You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings
Specifications
– Architecture: ARM 32bit
– CPU: 98DX3236A1-BTD4C000
– CPU core count: 1
– CPU nominal frequency: 800 MHz
– Dimensions: 443×305×44 mm
– License level: 5
– Operating System: RouterOS / SwitchOS
– Size of RAM: 512 MB
– Storage size: 16 MB
– Storage type: FLASH
– Tested ambient temperature: -20C to + 60C
POWERING
– Max Power consumption: 44W
– PoE out: 802.3af/at
– Number of AC inputs: 1
– AC input range: 100-240V
ETHERNET
– 10/100/1000 Ethernet ports: 24
FIBER
– SFP+ ports: 4
PERIPHERALS
– Serial port: RJ45
OTHER
– CPU temperature monitor: Yes
– PCB temperature monitor: Yes
INCLUDED PARTS

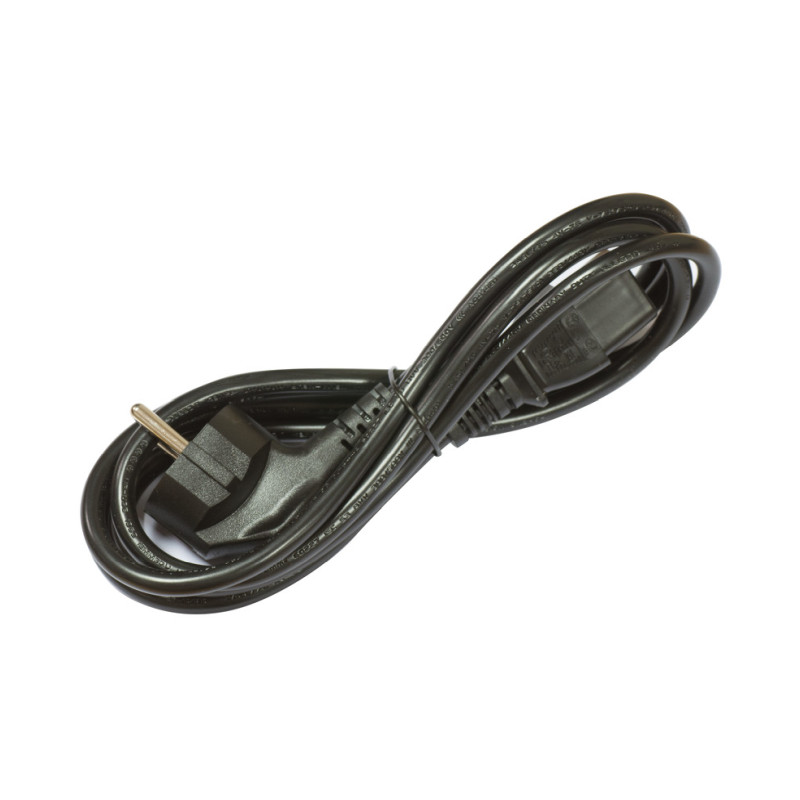

– IEC cord

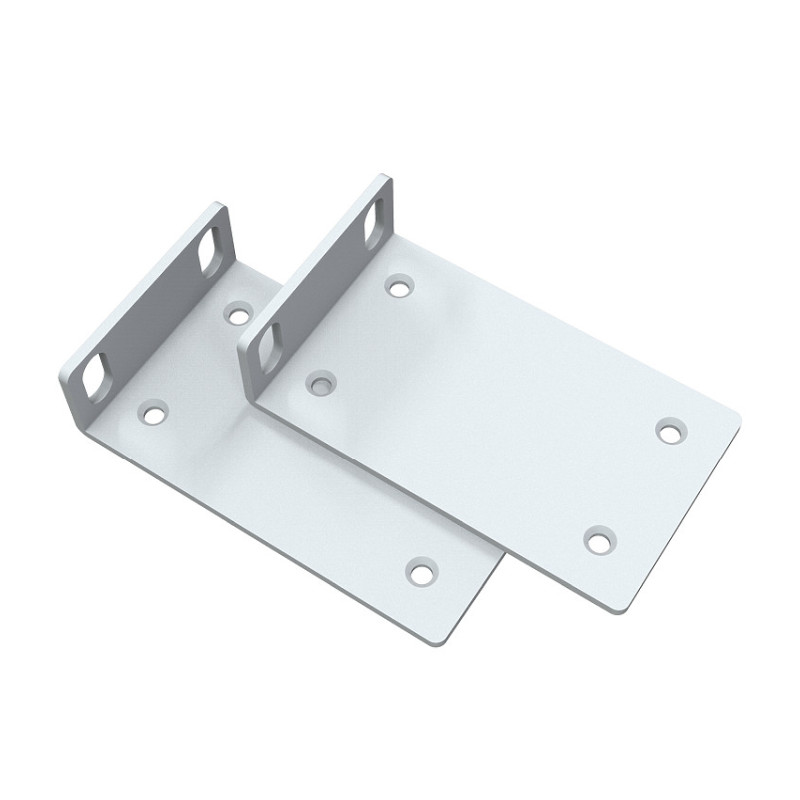

– Rackmount ears
