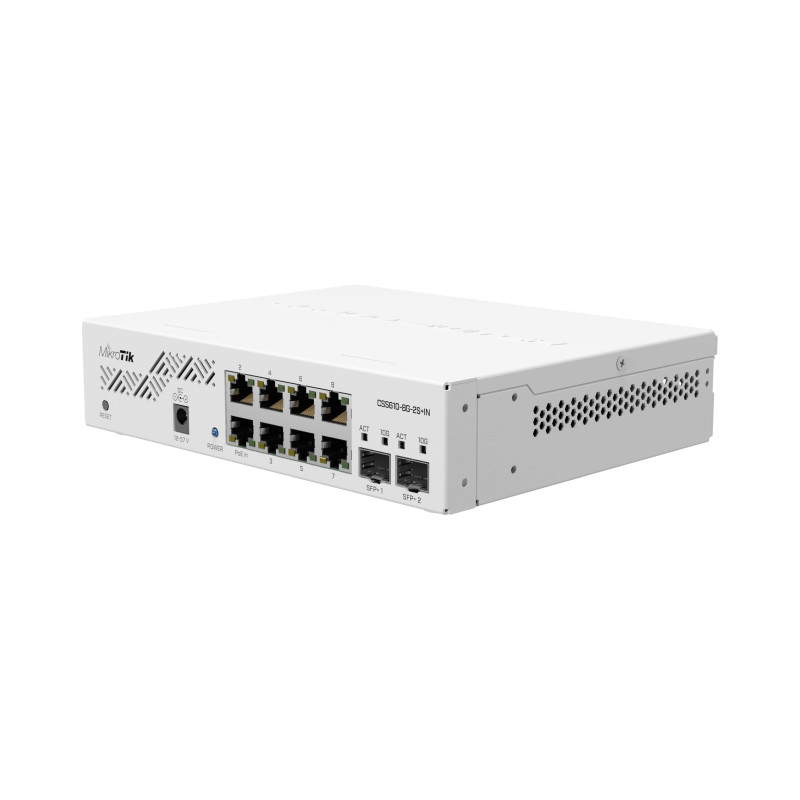

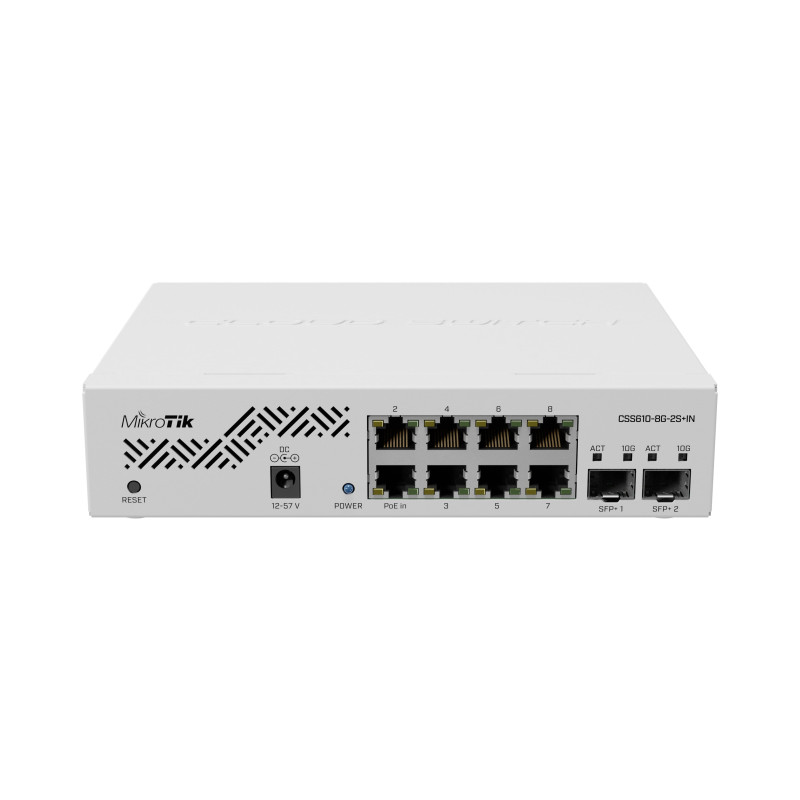

– Cloud Smart Switch 610-8G-2S+IN is our answer to the everlasting demand for more power in a small and simple package
– It comes with the lightweight SwOS which is easy to configure from your web browser
– It gives you all the basic functionality for a managed switch, and more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields
Specifications
– Dimensions: 200×167×46 mm
– Operating System: SwitchOS
– Storage size: 64 KB
– Storage type: FLASH
– MTBF: Approximately 100’000 hours at 25C
– Tested ambient temperature: -20°C to 60°C
POWERING
– PoE in: Passive PoE
– PoE in input Voltage: 12-57 V
– Number of DC inputs: 2 (DC jack, PoE-IN)
– DC jack input Voltage: 12-57 V
– Max power consumption: 11 W
– Max power consumption without attachments: 5 W
– FAN count: Passive
ETHERNET
– 10/100/1000 Ethernet ports: 8
FIBER
– SFP+ ports: 2
INCLUDED PARTS
– 24V 0.8A power adapter
– K-48 fastening set

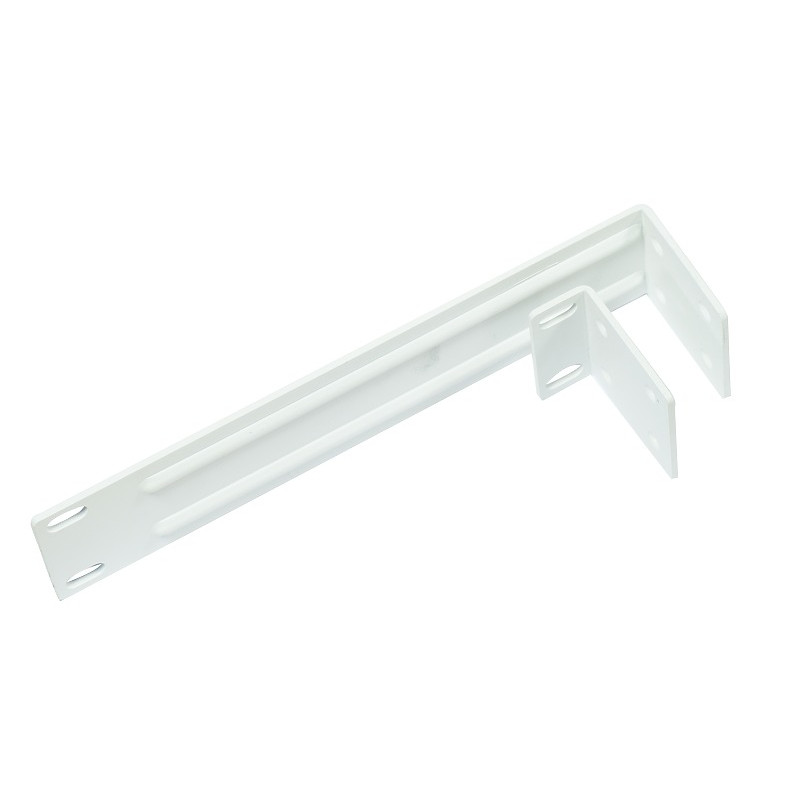

– Rack ears for CSS610-8G-2S+IN
