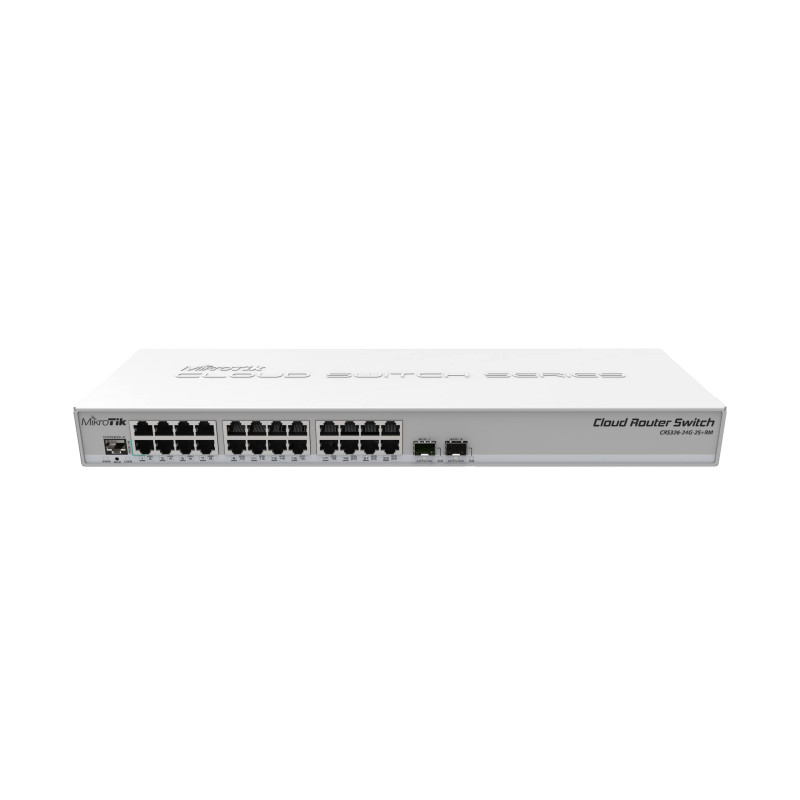

– SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!
– It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS
– If you prefer to have a simplified switch only OS with more switch specific features, use SwOS
– If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS
– You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings
– It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields
– SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules
Specification
– 10/100/1000 Ethernet ports: 24
– CPU: 98DX3236A1-BTD4C000
– CPU core count: 1
– CPU nominal frequency: 800 MHz
– Dimensions: 440×144×44 mm
– License level: 5
– Max Power consumption: 24W
– Operating System: RouterOS / SwitchOS
– PoE in: Passive PoE
– Power Jack: 1
– SFP+ ports: 2
– Serial port: RJ45
– Size of RAM: 512 MB
– Storage size: 16 MB
– Storage type: FLASH
– Supported input voltage: 10 V – 30 V
– Tested ambient temperature: -40C to +60C

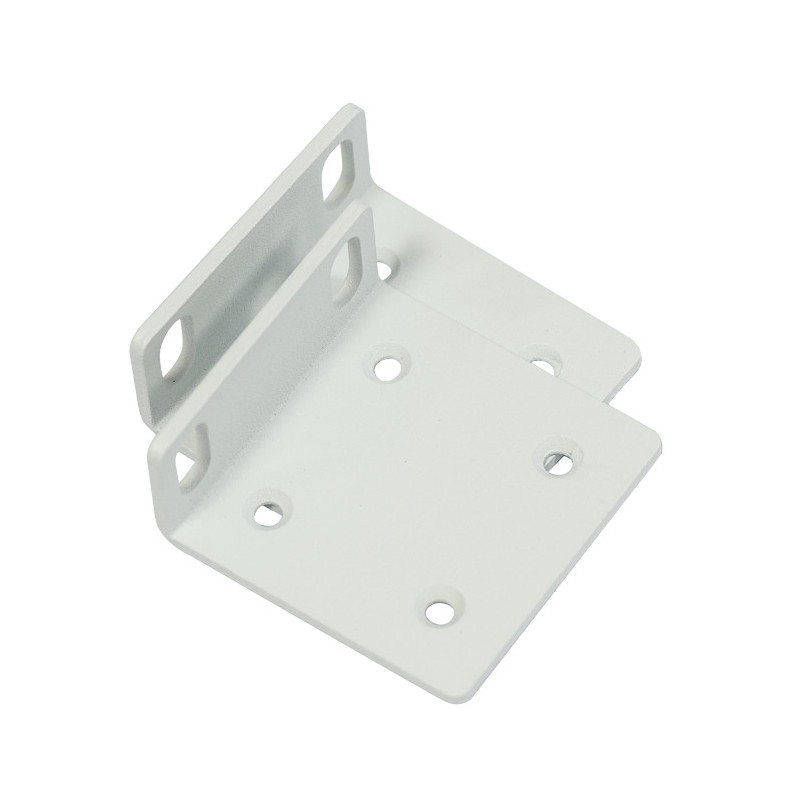

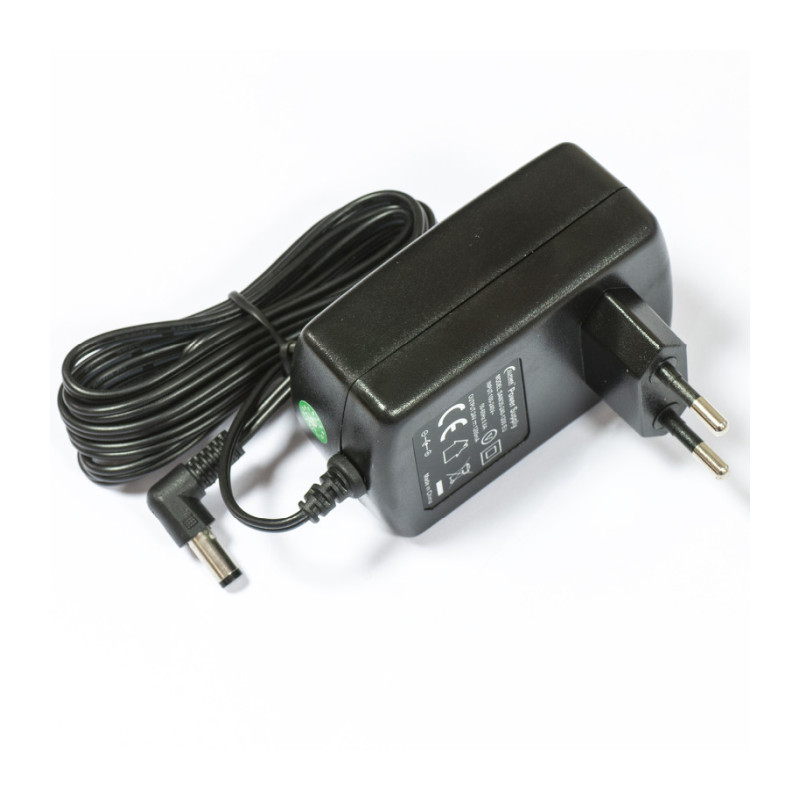

– Included parts: 24V / 1.2A power adapter, Rack ears
