Key Features
– Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX Ethernet standards
– 8 10/100Mbps Fast Ethernet ports
– Features Store-and-Forward mode with wire-speed filtering and forwarding rates
– Hardware based 10/100Mbps, half / full duplex , flow control and auto-negotiation
– IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
– Integrated address look-up engine, supports 2K absolute MAC addresses
– 448K bits packet buffer memory

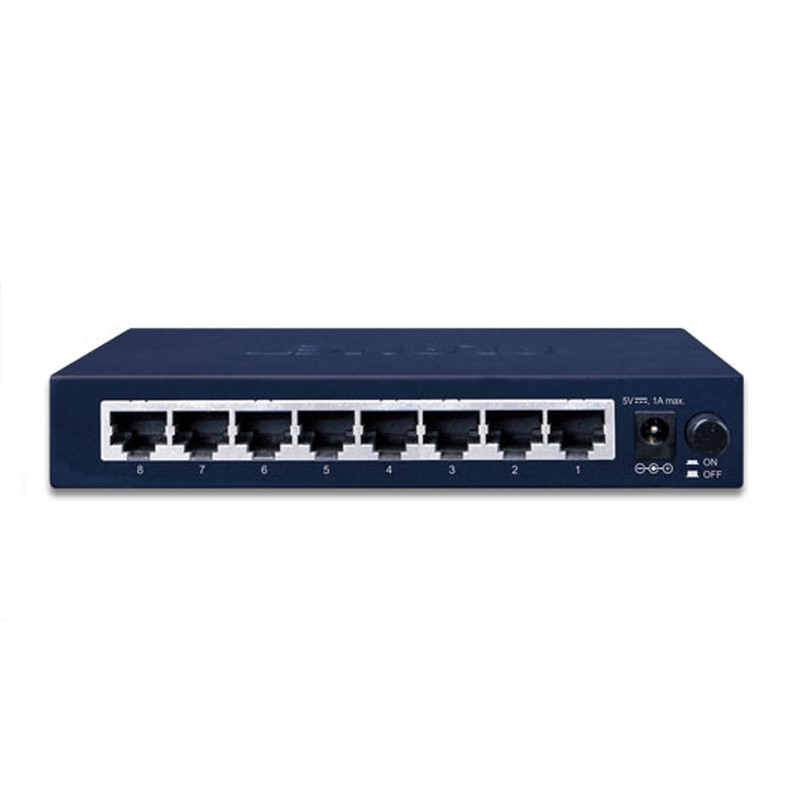

– One power on/off button for energy saving
– Automatic address learning and address aging
– Supports Auto MDI/MDI-X function
– Supports CSMA/CD protocol
– External power adapter 5V / 1.0A
– FCC, CE class A compliant
Specification
– 10/100Base-TX Ports: 8
– LED Display: One for Power, One for Link / Act per port
– Dimension (W×D×H): 160×80×28 mm
– Weight: 325g
– Power Requirement: DC 12V, 500mA
– Power Consumption / Dissipation: 4.3 Watts / 14.6 BTU
– Switch Processing Scheme: Store-and-Forward
– Address Table: 2K
– Packet buffer memory: 448K bits
– Flow Control: Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
– Switch Fabric: 1.6Gbps
– Throughput (packet per second): 1.19Mpps
– Standard :
* IEEE 802.3 10Base-T Ethernet
* IEEE 802.3u 100 Base-TX Fast Ethernet
* IEEE 802.3x Full-duplex Flow Control
– Regulation Compliance: FCC Part 15 Class A CE
– Temperature:
* Operating: 0-50 Degree C
* Storage: -10-70 Degree C
– Humidity:
* Operating: 5-90%
* Storage: 5-90% (Non-Condensing)
