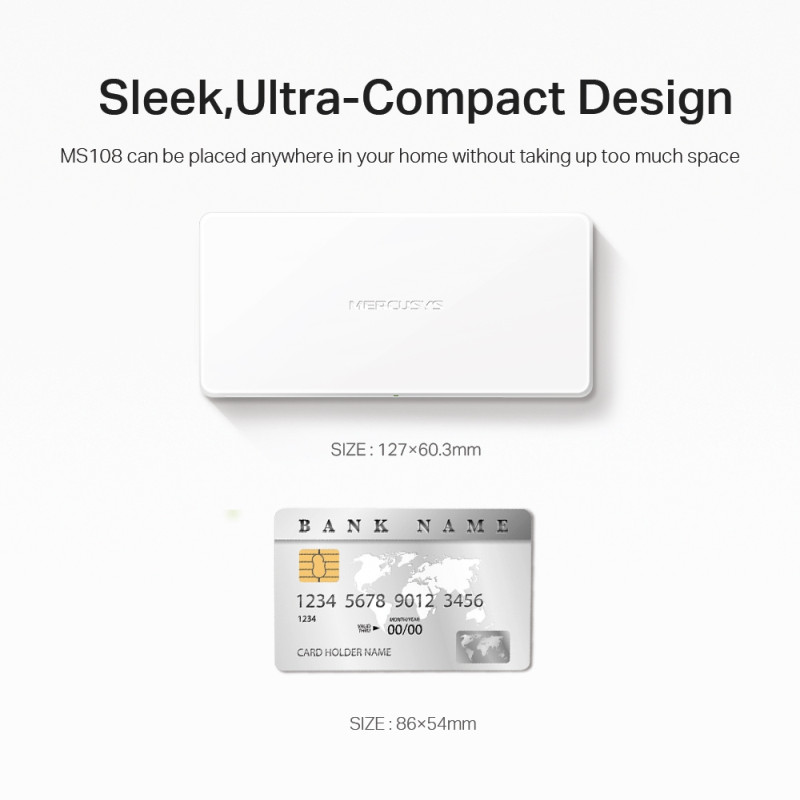

SLEEK,ULTRA-COMPACT DESIGN
– About the same size as a smartphone, the MS108 can be placed anywhere in your home without taking up too much space
– Its fanless design allows it to remain unobtrusive, regardless of how long it has been running

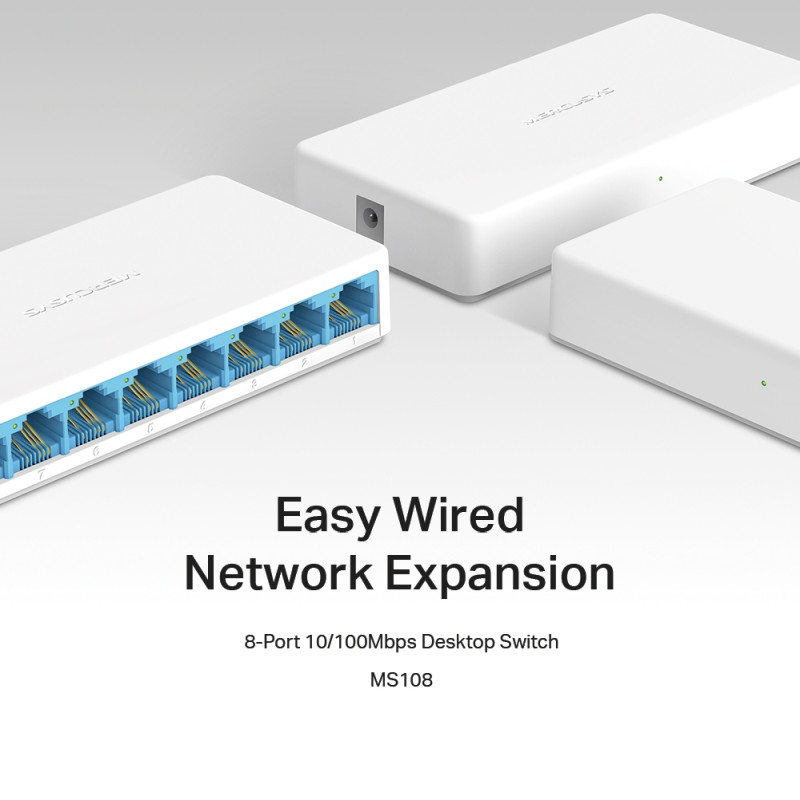

EXPAND ETHERNET NETWORK
– With eight 10/100Mbps Ethernet ports, you can quickly expand your wired network
– The MS108 is flexible and is fully compatible with computers, printers, IP cameras, smart TVs, game consoles, and more
– This makes it perfect for home, small office, and even dormitory environments
EASE OF USE
– Forget about complicated installation
– Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network
– Absolutely no configuration is required
RELIABLE PERFORMANCE
– With Half/Full Duplex and MAC Address Learning Technology, the MS108 provides up to 1.6Gbps of stable switching bandwidth
– Every unit undergoes extensive testing prior to shipment, ensuring that the MS108 will provide reliable, uninterrupted connections for years to come
Specifications
– Dimensions (W×D×H): 127×60.3×22 mm
– External Power Supply: External power adapter (Output: 5.0VDC / 0.6A)
– Interfaces: 8× 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
– Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD
– Fan Quantity: Fanless
– ata Rates:
* 10/100Mbps at half duplex
* 20/200Mbps at full duplex
– Buffer Capacity: 768Kb
– Jumbo Frame: 2KB
– Switching Capacity: 1.6Gbps
– LED: Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
– Transfer Method: Store and forward
– Certifications: CE, RoHS
– Package Contents:
* 8-Port 10/100Mbps Desktop Switch
* Power adapter
* Quick installation guide
