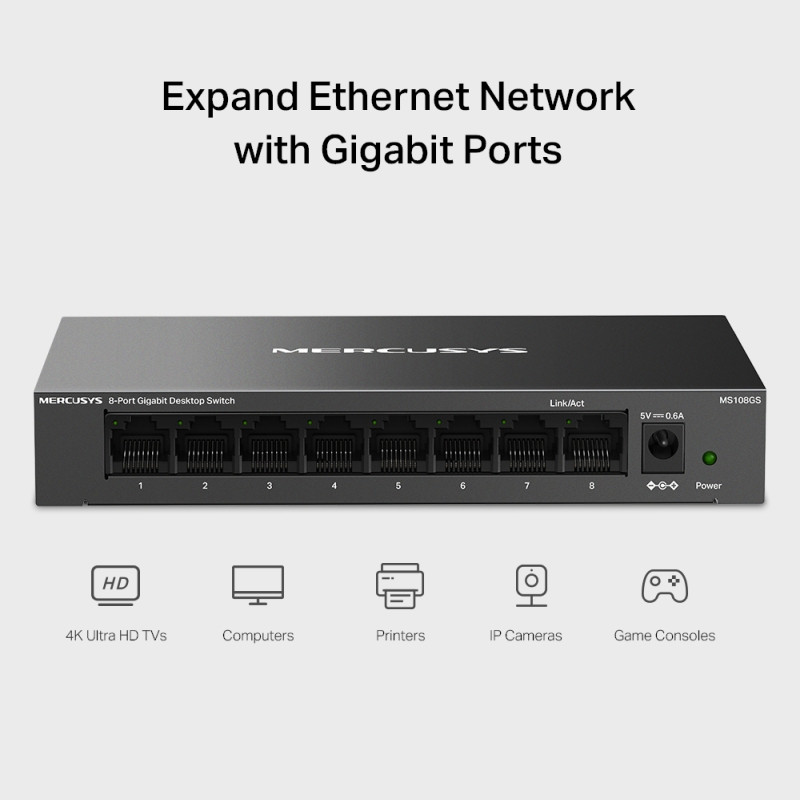

Full Gigabit Ports:
– 8× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
Multiple Installation Operation:
– Steel housing, desktop or wall-mounting design

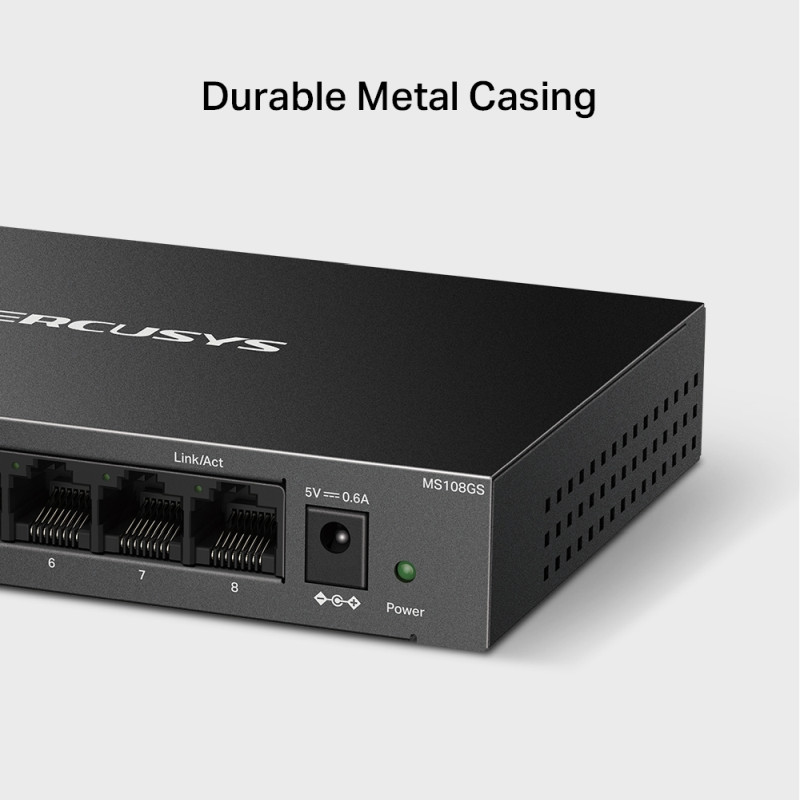

Durable Metal Casing:
– Allows for efficient heat dissipation and long network life
Plug and Play:
– Simple to use and saves time and effort
Power Saving:
– Green Ethernet technology saves power
Specifications
Software
– Transfer Method: Store and Forward
Hardware
– Dimensions (W X D X H): 6.2 × 3.9 × 1.0 in
– Interfaces: 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
– External Power Supply: 5V/0.6A
– Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
– Data Rates
• 10/100/1000Mbps at Half Duplex
• 20/200/2000Mbps at Full Duplex
– Buffer Capacity: 4 Mbit
– Jumbo Frame: 15 KB
– LED: Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
Others
– Package Contents

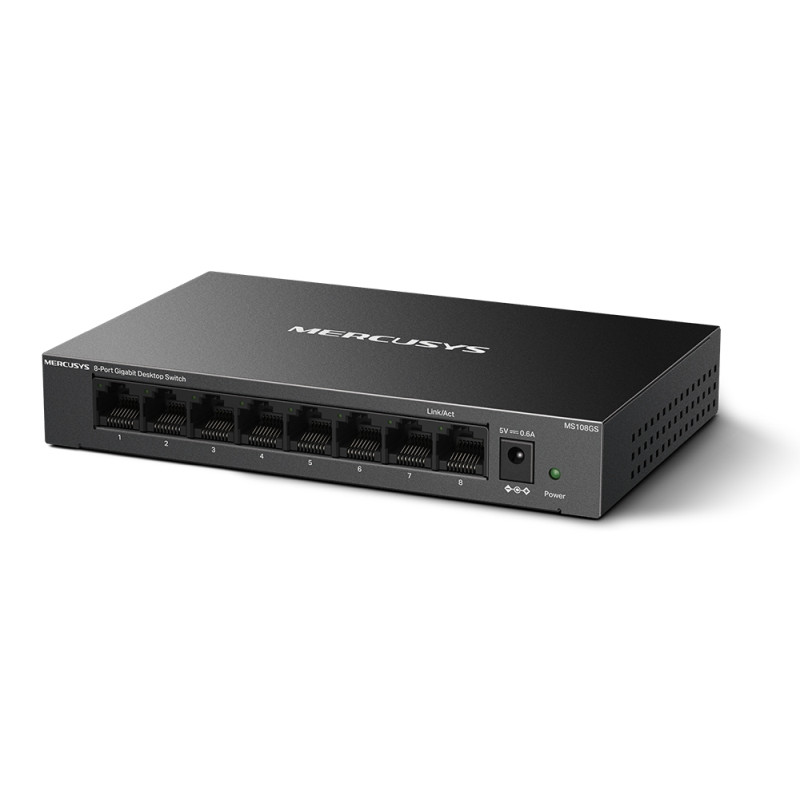

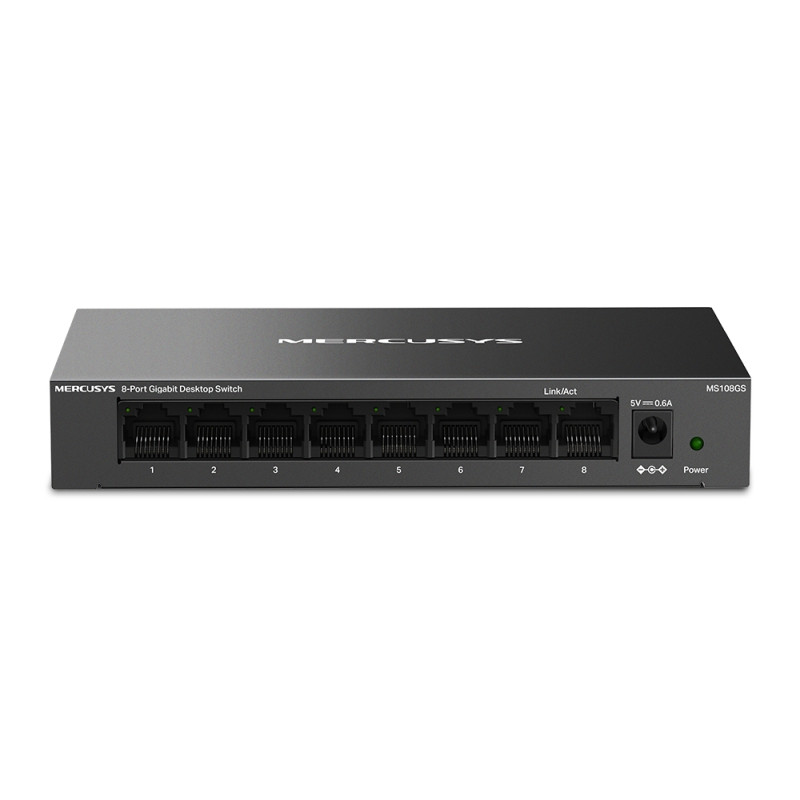

• 8-Port Gigabit Desktop Switch (MS108GS)
• Power Adapter
• Quick Installation Guide
