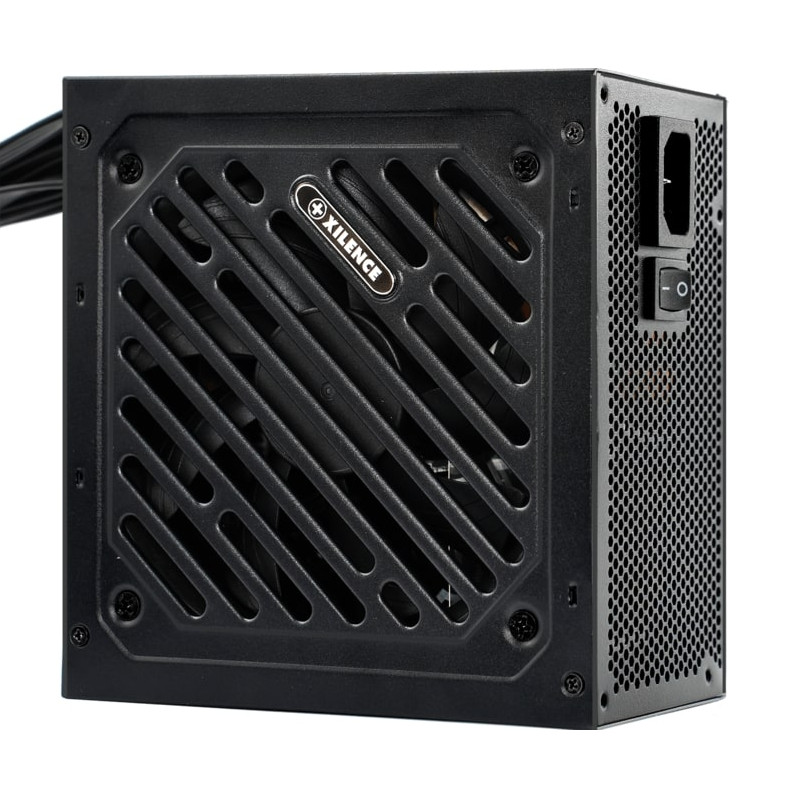

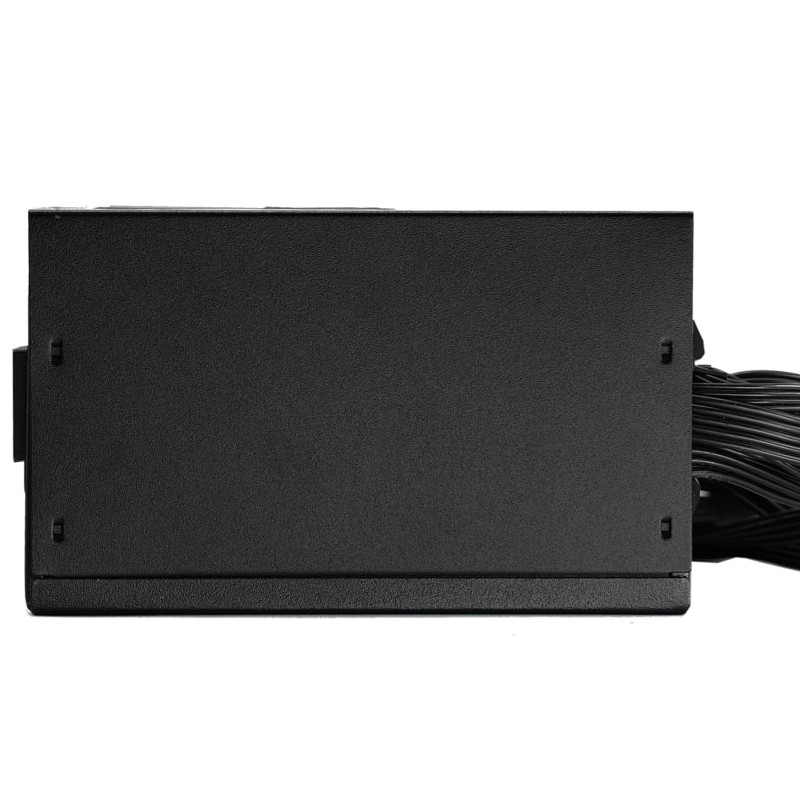

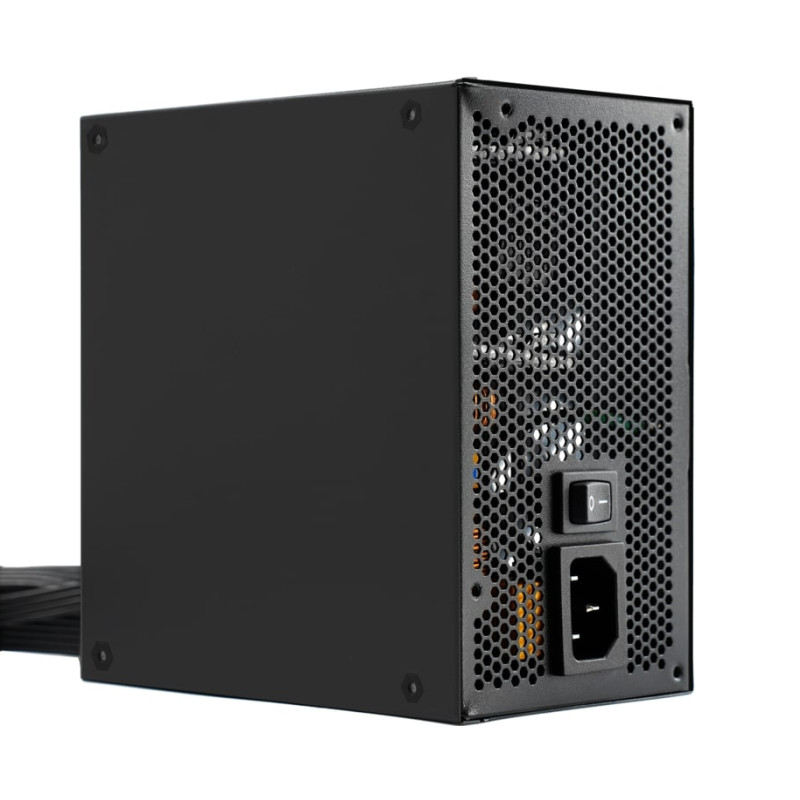

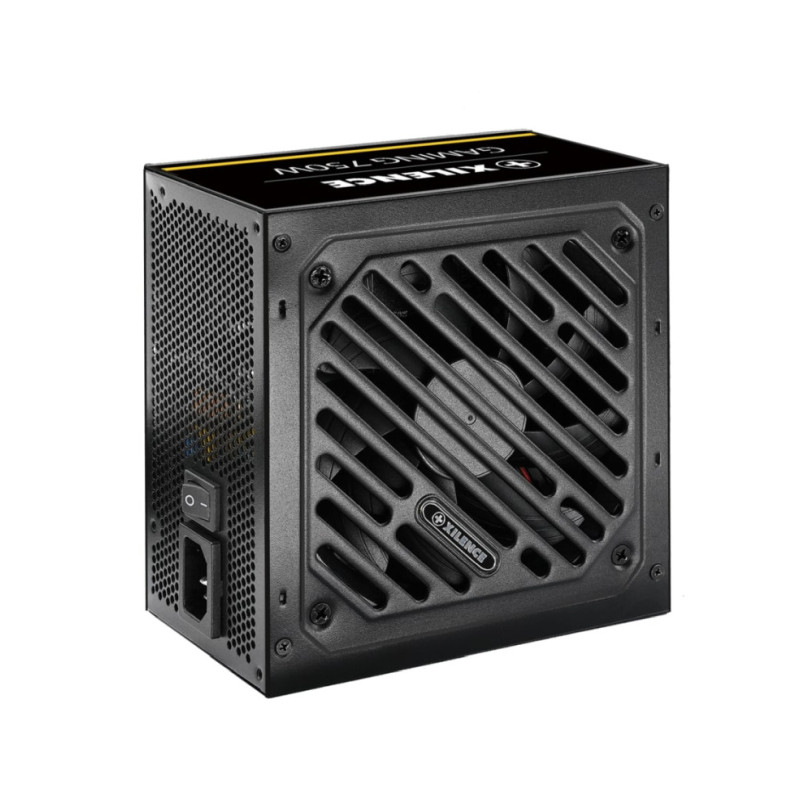

– The Gaming GOLD Series is a PC power supply series with a fixed cable harness, as well as a 750W ARGB variant

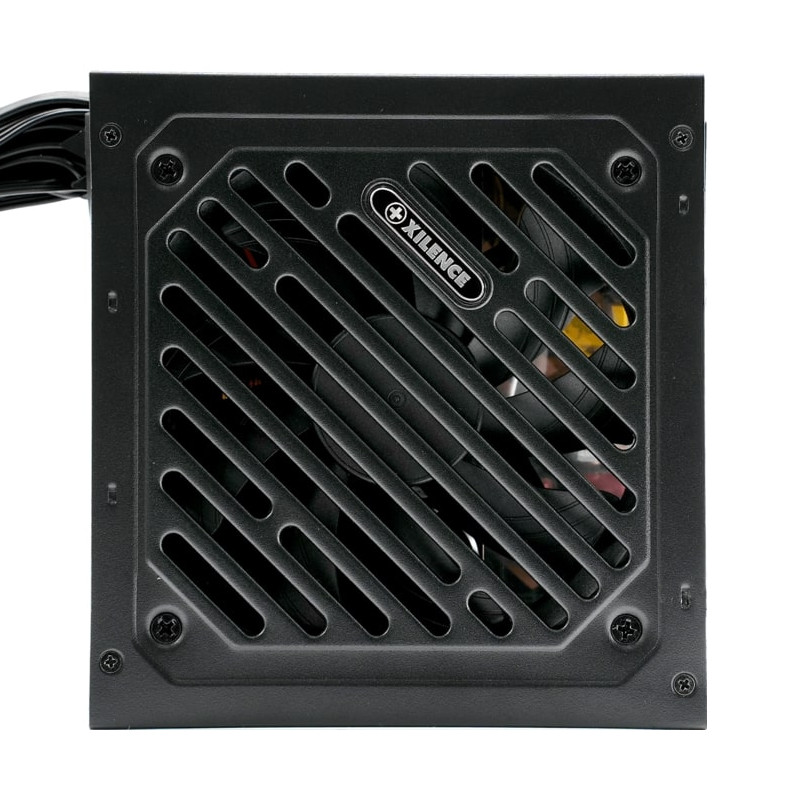

– The noble design with its black powder coating, the 120mm silent, black or transparent fan and the fan grille emphasizes the valuable character of this series
– The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions
– The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas and have low power consumption during these intensive phases
– The power supplies achieve the 80+ GOLD requirements
Features
– Whisper-quiet cooling: Large 120mm fan*
– Excellent airflow design for improved heat dissipation
– With the following safety equipment:
* OVP (overvoltage protection)
* UVP (Undervoltage Protection)
* SCP (short circuit protection)
* OLP (overload protection)
* OTP (over temperature protection)
* OCP (overcurrent protection)
– Low standby power consumption
– High energy
Technical data
– Continuous power (W): 650
– Form factor ATX 12V: Version 2.52v
– Voltage (Vac): 200-240V
– Mode: Gaming | XP650R12
– Frequency (Hz): 50Hz-60Hz
– Input current (A) 6.3
– PFC: active
Output
* +3.3V (A): 20
* +5V (A) : 20
* +12V1 (A): 54.1
* -12V (A): 0.3
* +5Vsb (A): 3
* Max. combined power 12V (W): 650
* Max. combined power 3.3V + 5V (W): 100
* +12V2 (A): Yes
Fan / Cooling technology
– Bearing technology: Hydro Bearing
– Fan size (mm): 120
Protection
– OCP (over current protection): Yes
– OVP (over voltage protection): Yes
– UVP (under voltage protection): Yes
– SCP (short circuit protection): Yes
– OTP (over temperature protection): Yes
– OPP (over power protection): Yes
Eco / Efficiency
– 80PLUS certification: meet 80+ Gold
– Efficiency (%) at 230V, 20% load: 90
– Efficiency (%) at 230V, 50% load: 93
– Efficiency (%) at 230V, 100% load: 92
Environmental directives
– ErP: Yes
– WEEE: Yes
– RoHS: Yes
Cable management / Connectors
– Modular cable management: –
– Cable length to mainboard (mm): 550
– Cable length to first connector (mm): 550
– Maximum cable length (mm): 600
– Sleeved cables: Yes
– No. of cables: –
– ATX-Motherboard (20+4-pin): –
– P4+4 (CPU): 2
– P8 (CPU): 1
– PCI-E 6-pin (GPU): –
– PCI-E 6+2-pin (GPU): 3
– PATA 4-pin: –
– SATA 15-pin (HDD, Drives): 6
– FDD (Floppy): –
