Product description

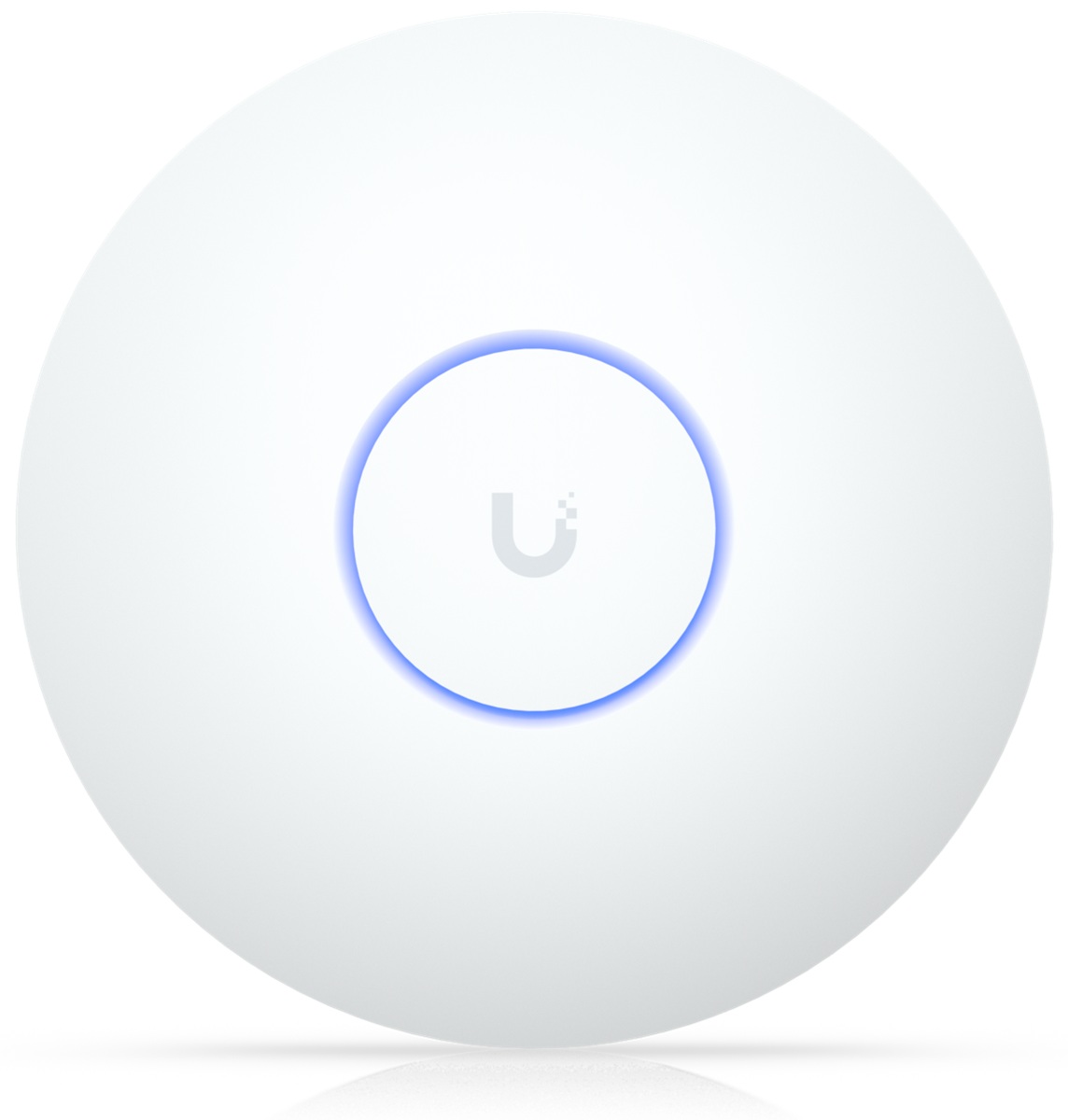

U7-LR is a high-performance Access Point leveraging advanced WiFi 7 technology to provide powerful wireless coverage to enterprise environments. It delivers an aggregate radio rate of up to 5.0 Gbps with 5 GHz (3×3 MU-MIMO) and 2.4 GHz 2×2 MU-MIMO radios. The U7-LR seamlessly blends into any environment.
Features
Five-stream high-efficiency Wi-Fi 7 technology
5 GHz band 3×3 MU-MIMO with radio rate of 4.3 Gbps
2.4 GHz band 2×2 MU-MIMO with radio rate of 688 Mbps
Powered with 802.3af PoE / passive 43V – 57V DC
Managed by UniFi Network Controller version: 9.0.114 or higher
Technical parameters
Wireless featuresWireless frequency:2.4 + 5 GHz (dual band)WiFi standards:802.11n, 802.11ac, 802.11ax, 802.11beMU-MIMO:YesHotspot 2.0:YesTransmission speed – 5GHz [Mb/s]:4300Transmission speed – 2.4GHz [Mb/s]:488Tx power 2.4GHz [dBm]:26Tx power 5GHz [dBm]:27Security:WPA3 AES2.4GHz MIMO:2 x 25GHz MIMO:3 x 3Roaming:YesAntenna gain [dBi]:4, 6Connectors and InterfacesLAN speed:(1) 1G/2.5GbpsGigabit LAN:YesPowerPower over Ethernet:802.3af, 43 .. 57V DCMax. power consumption [W]:14Physical characteristicsPurpose:IndoorButtons:ResetOperating temperature [°C]:-30 up to 50Weight [g]:448Width [mm]:176Height [mm]:43Depth [mm]:176SoftwareOperating mode:Access PointDefault IP address:192.168.1.20, Dynamic from DHCPDefault login and password:ubnt / ubnt
