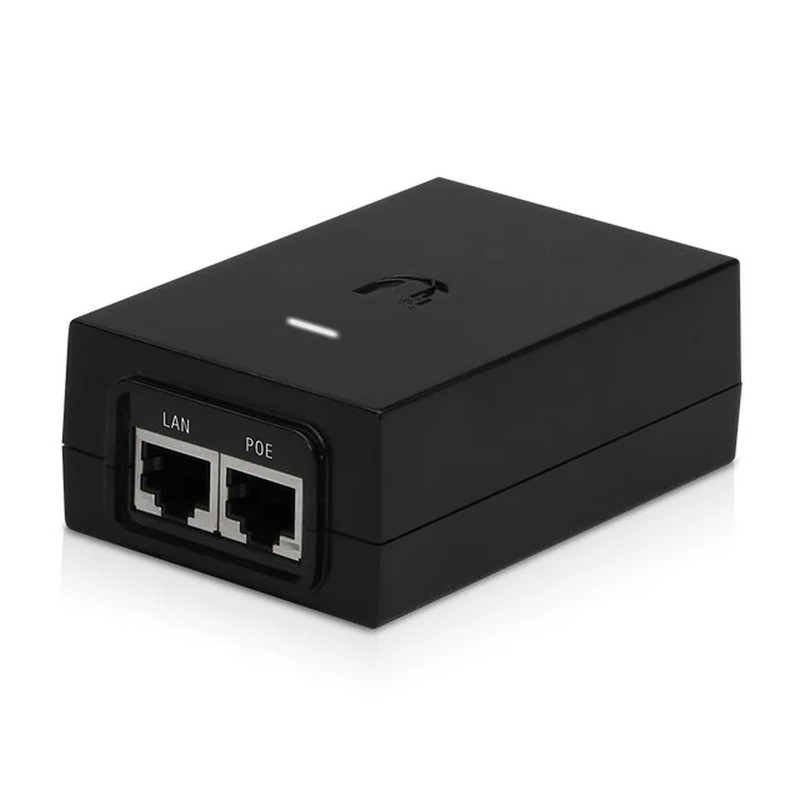

– Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
* Surge protection
* Clamping protection
* Maximum surge discharge
* Peak pulse current
* AC cable with earth ground
Specifications
– Output Voltage: 48VDC @ 0.5A
– LAN Activity Indicator: No
– Gigabit LAN Port: Yes
– Remote Reset Capability: No
– Reset Button: No
– Input Voltage: 90-260VAC @ 47-63 Hz
– Input Current:
* 0.6A @ 120VAC
* 0.4A @ 240VAC
– Inrush Current:
* <65A Peak @ 120VAC
* <130A Peak @ 230VAC
– Efficiency: 80+%
– Output Ripple: 1% Max
– Switching Frequency: 65 kHz
– Line Regulation: +/- 1%
– Load Regulation: +/- 3%
– 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-
– Operating Temperature: 0C to 40C (32F to 104F)
– Storage Temperature: 30C to 70C (-22F to 158F)
– Operating Humidity: 35 to 95% Noncondensing
– AC Connector: IEC-320 C6
– Data IN / POE: RJ45 Shielded Socket
– Surge Protection: Difference and Common Mode
– Clamping Protection: 11V Data, 60V Power
– Max. Surge Discharge: 1500A (8/20 us) Power
– Peak Pulse Current: 36A (10/1000 us) Data
– Shunt Capacitance: <5 pF data
– Response Time: <1 ns
– Compliance:
* IEC 60950-1:2005+A1
* UL60950-1
* EN55022:2010, EN55024:2010
* FCC Class B
– AC Cable with Earth Ground: USA, EU, AR, BR, UL, CCC, Mexico
– Dimensions: 96×62×35 mm
– Weight: 166 g
