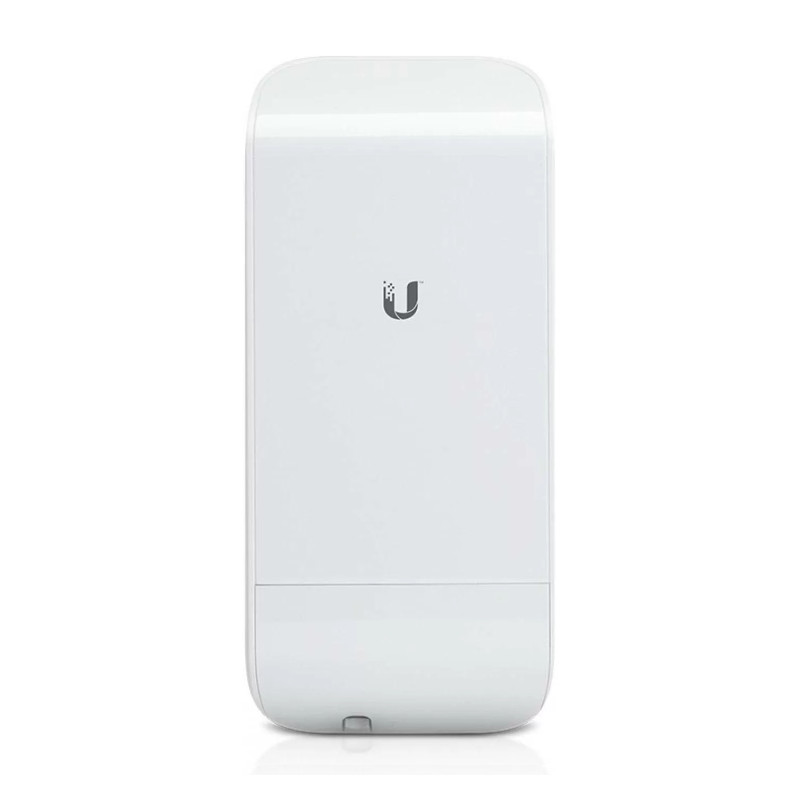

COMPACT CPE DESIGN
– The NanoStation M features the CPE design that expanded the global Wireless ISP industry
PLUG AND PLAY INSTALLATION
– The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting
VERSATILE APPLICATION USE
– The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE
DUAL ETHERNET CONNECTIVITY
– With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration
POWERFUL airOS FEATURES
– Ubiquitis versatile airOS firmware technology enables high-performance, outdoor multi-point networking
– airOS provides features such as wireless settings, bridge or routing configuration and system management services
ADVANCED SOFTWARE TECHNOLOGY
– Ubiquitis airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments
– The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks
WINDOW / WALL MOUNTING KIT
– Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall
– 180° vertical or horizontal adjustment allows for custom positioning
WALL / POLE MOUNTING KIT
– The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation M
– 90° tilt adjustment allows for easy positioning
Specifications
– max. Power Consumption: 5.5W
– Power Supply (PoE): 24V, 0.5A
– Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
– Operating Frequency: 2412 – 2462 MHz
– Gain: 8.5 dBi
– Networking Interface: 1 10/100 Ethernet Port
– Processor Specs: Atheros MIPS 24Kc, 400 MHz
– Memory: 32MB SDRAM, 8MB Flash
– Frequency: 2.4 GHz
– Cross-pol Isolation: 20 dB min.
– Throughput: 150+ Mbps
– Range: 5+ km
– max. VSWR: 1.4:1
– Beamwidth: 60° (H-pol) / 60° (V-pol) / 60° (Elevation)
– Polarization: Dual Linear
– Enclosure: Outdoor UV Stabilized Plastic
– Mounting: Pole-Mount (Kit Included)
– Operating Temperature: -30C to 75C (-22F to 167F)
– Operating Humidity: 5% to 95% Noncondensing
– Shock & Vibration: ETSI300-019-1.4
– Dimensions: 161×31×80 mm
– Weight: 180 g
