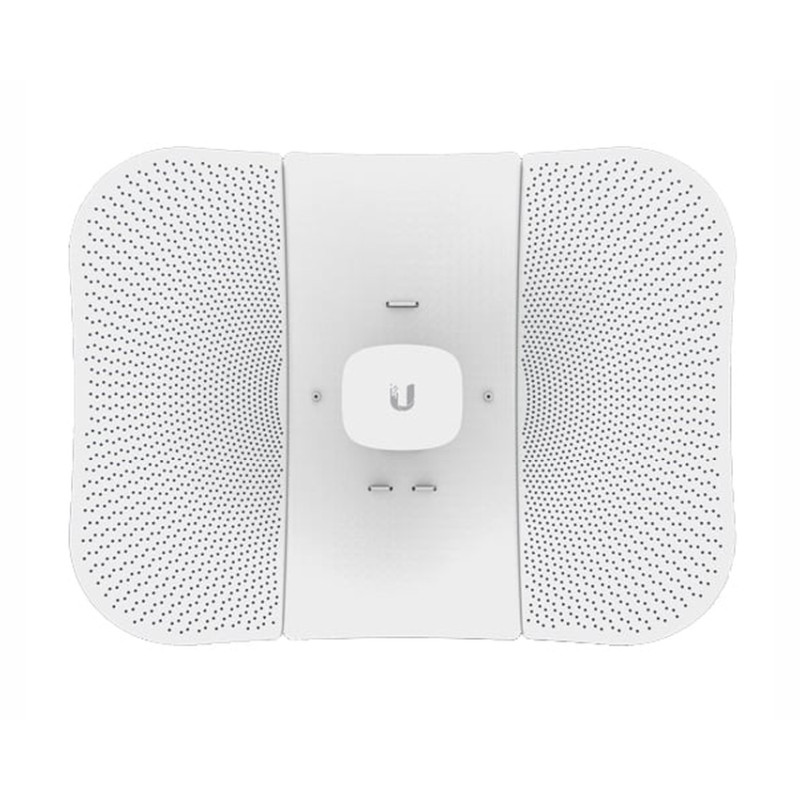

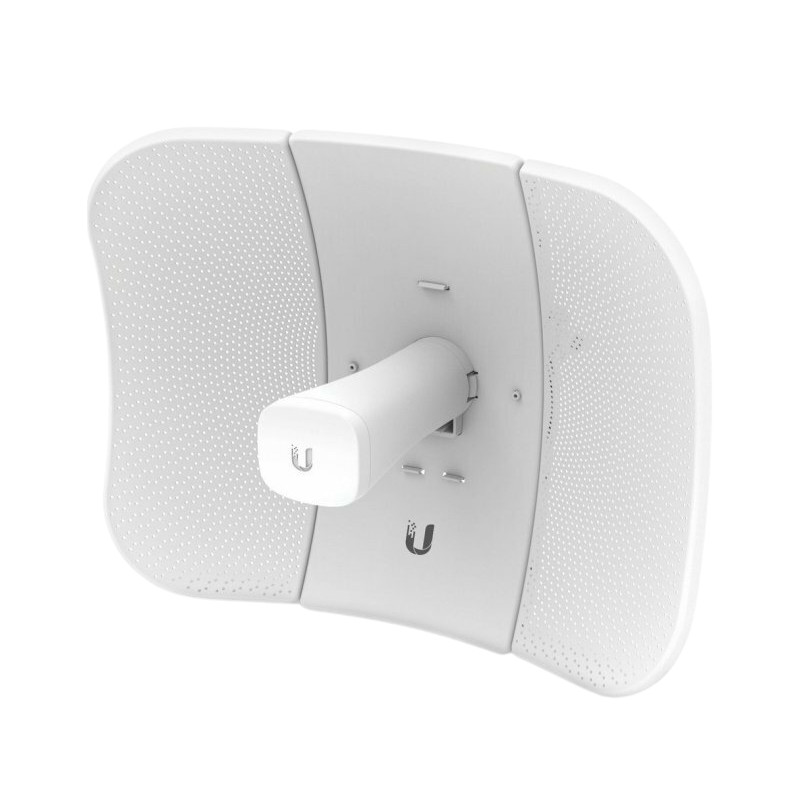

– The LiteBeam AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing
MANAGEMENT Wi-Fi RADIO
– The LiteBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device
IMPROVED MOUNTING AND SURGE PROTECTION
– Featuring enhanced protection against ESD events, the LiteBeam AC offers a more robust mount with separate azimuth and elevation adjustments
NOW WITH airOS 8 AND airVIEW
– airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability
HIGH-GAIN, DIRECTIONAL, 2×2 MIMO ANTENNA
– The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity
BREAKTHROUGH INDUSTRIAL DESIGN
– Featuring the freedom of three-axis alignment, the LiteBeam AC fully assembles in seconds – no tools needed
– Only a single wrench is required for pole-mounting
COMPACT IN SIZE, LIGHT IN WEIGHT
– A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics
Specifications
– Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
– Max. Power Consumption: 7W
– Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
– Supported Voltage Range: 24V +/-10%
– Gain: 23 dBi
– Networking Interface: (1) 10/100/1000 Ethernet Port
– Processor: MIPS 74Kc
– Memory: 64MB DDR2
– LEDs: Power, Ethernet
– Channel Sizes:
* PtP Mode: 10/20/30/40/50/60/80 MHz
* PtMP Mode: 10/20/30/40 MHz
– Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC
– Mounting: Pole-Mounting Kit (Included)
– Wind Loading: 275 N @ 200 km/h (61.8 lbf @ 125 mph)
– Wind Survivability: 200 km/h (125 mph)
– ESD/EMP Protection: +/-24 kV Contact / Air
– Operating Temperature: -40C to 70C (-40F to 158F)
– Operating Humidity: 5% to 95% Noncondensing
– Certifications: CE, FCC, IC
– Operating Frequency: 5150 – 5875 MHz
– Management Radio: 2412 – 2472 MHz
– Dimensions: 358×271.95×272.5 mm
– Weight:
* Without Mount: 800 g
* With Mount: 980 g
