BE11000 Tri-Band Wi-Fi 7:
– 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1× 10G Port:
– Unlock the full potential of Wi-Fi 7.
Clear 6 GHz Band:
– Brings cleaner and wider band resources to your Wi-Fi.
320 MHz Bandwidth:
– Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
Low Latency and Interference:
– Multi-Link Operation, and Multi-RUs ensure high performance of your network.
Advanced Functions:
– Supports centralized management, mesh, and AI roaming.
Specifications
HARDWARE FEATURES
– Interface: 1× 10G Ethernet Port
– Button: Reset
– Power Supply: 802.3at PoE or 12V/2.5A DC
– Notice: Due to the software update, the power supply has been updated from 802.3bt to 802.3at.
– Power Consumption
• 25.44 W (For PoE)
• 22.57 W (For DC)
– Dimensions ( W x D x H ): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
– Antenna Type
• 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
• 6 GHz: 2× 5.0 dBi
– Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.

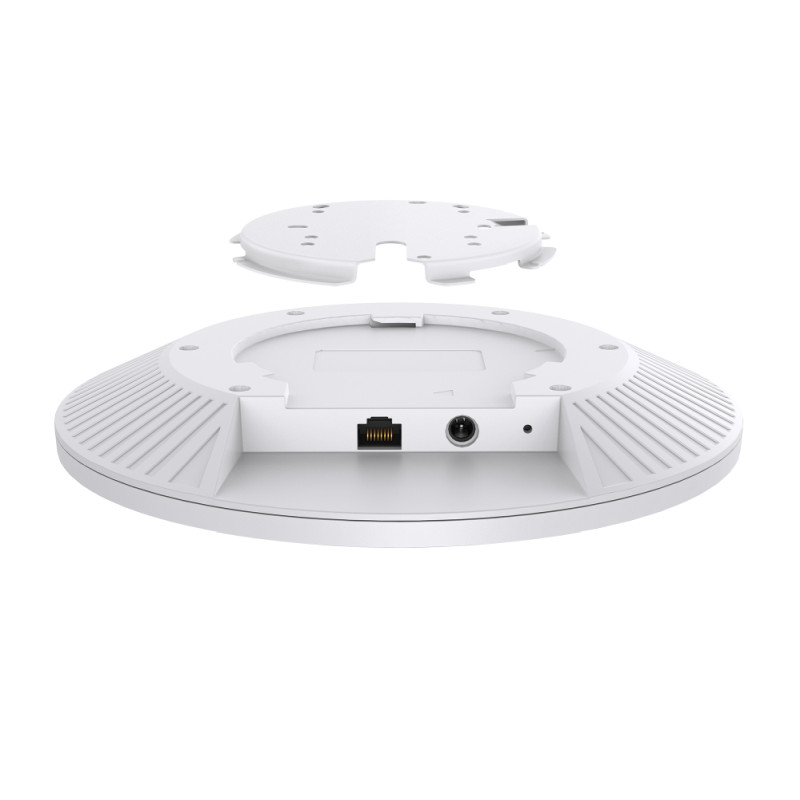

– Mounting: Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
– Coverage: 140?(1500 ft2)
– Concurrent Clients: 380+
– Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
– Frequency: 6 GHz, 5 GHz, and 2.4 GHz
– Signal Rate: 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)
– Wireless Functions
• MLO
• 4K-QAM
• Seamless Roaming(802.11k/v/r)
• MU-MIMO (2*2 DL/UL MU-MIMO)
• HE320
• Mesh
• BSS Coloring
• OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
– Wireless Security
• Captive Portal Authentication
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
– Transmission Power
< 25 dBm (2.4 GHz)
< 25 dBm (5 GHz )
< 23 dBm (6 GHz)
MANAGEMENT
– Omada App: Yes
– Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
– Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
– Email Alerts: Yes
– LED ON/OFF Control: Yes
– Management MAC Access Control: Yes
– SNMP: v1, v2c, v3
– System Logging Local/Remote Syslog: Yes
– Web-based Management: Yes
OTHERS
– Certification: CE, FCC, RoHS, IC
Package Contents
• EAP773
• Installation Guide
• Ceiling/Wall Mounting Kits
– Note: Power Adapter is NOT included.
Environment
• Operating Temperature: 0 C–40 C (32 F–104 F)
• Storage Temperature: -40 C–70 C (-40 F–158 F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing
