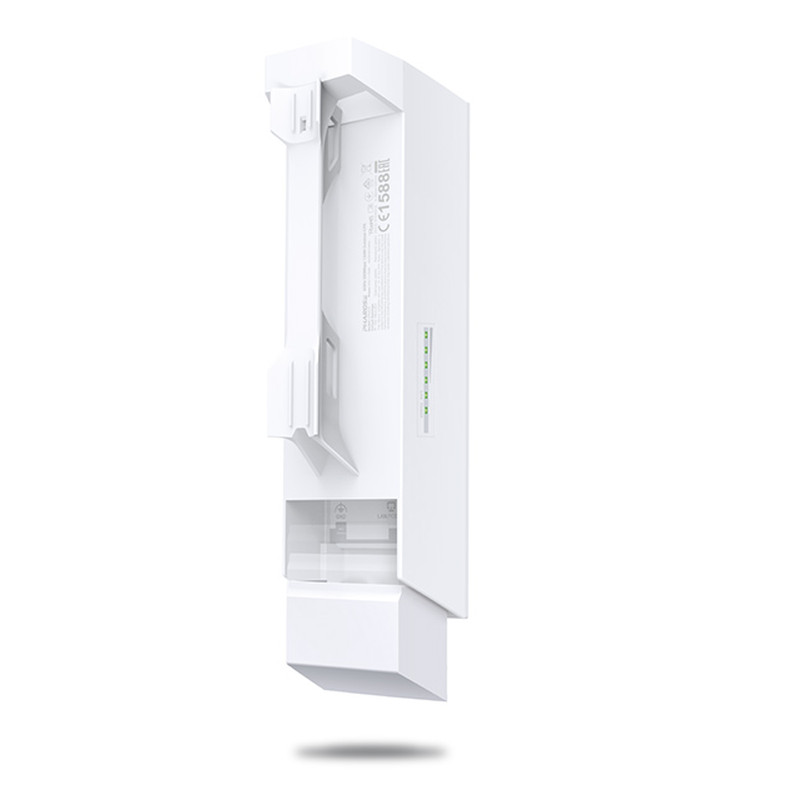

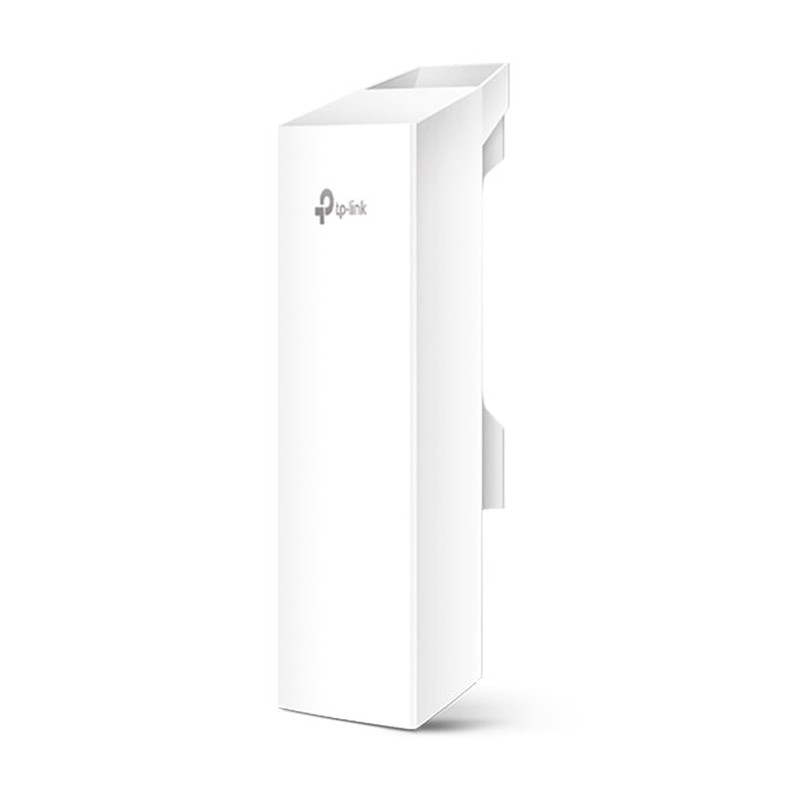

– Built-in 9dBi 2×2 dual-polarized directional MIMO antenna
– Adjustable transmission power from 0 to 27dBm/500mw
– System-level optimization for more than 5km long range wireless transmission
– TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications
– Centralized Management System – Pharos Control
– AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
– Outdoor stabilized enclosure with IPX5 waterproof certification
– Dual Ethernet ports and grounding terminal integrated
– 6000V Lightning Protection, 15KV ESD Protection
– Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
– Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
– Selectable bandwidth of 5/10/20/40MHz
– Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
– Easy antenna alignment with wireless signal quality indicators via Web interface
Specifications
HARDWARE FEATURES
– Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
– Memory: 64MB DDR2 RAM, 8MB Flash
– Interface:
* 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
* 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
* 1 Grounding Terminal
* 1 Reset Button
– Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
– Voltage range: 16-27VDC
– Dimensions (W×D×H): 224×79×60 mm
– Power Consumption: 10.5 Watts Max
** Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable
– Antenna Type:
* Built-in 9dBi 2×2 Dual-polarized Directional Antenna
* Beam Width: 65° (H-Plane) / 35° (E-Plane)
** Note: For more details, please refer to datasheet
– Protection:
* 15KV ESD Protection
* 6000V Lightning Protection
– Enclosure:
* Outdoor ASA stabilized plastic material
* IPX5 waterproof Certification
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)
– Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
– Wireless Speeds:
* Up to 300Mbps (40MHz,Dynamic)
* Up to 144.4Mbps (20MHz,Dynamic)
* Up to 72.2Mbps (10MHz,Dynamic)
* Up to 36.1Mbps (5MHz,Dynamic)
– Frequency: 2.4~2.483GHz
** Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used
– Reception Sensitivity:
802.11b
* 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm
802.11g
* 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm
802.11n
* MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,
* MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,
* MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,
* MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,
* MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm
– Transmission Power: 27dBm/500mw (Adjustable power by 1dBm)
** Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used
SOFTWARE FEATURES
– Wireless Configurations:
* Pharos MAXtream TDMA Technology
* 802.11b/g/n Modes
* Selectable Channel Width: 5/10/20/40MHz
* Automatic Channel Selection
* Transmission Power Control
* Dynamic Frequency Selection (DFS)
* WDS Enable/Disable
* Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
* SSID Broadcast Enable/Disable
* Multi-SSID with VLAN Tagging (AP mode only)
* Distance/ACK Timeout Setting
* Wireless MAC Address Filter
* Wireless Advanced:
* > Beacon Interval/RTS Threshold/Fragmentation
* >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
– Management:
* Discovery and Remote Management via Pharos Control application
* HTTP/HTTPS Web-based management
* System Log
* SNMP Agent(v2c)
* Ping Watch Dog
* Dynamic DDNS
* SSH Server
– System Tools:
* Wireless Signal Quality Indicators:
* Signal Strength/Noise/Transmit CCQ/CPU/Memory
* Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
* Spectrum Analyzer
* Speed Test
* Ping
* Traceroute
– System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
POE ADAPTER FEATURES
– Interfaces:
* 1 AC Jack with Earth Ground
* 1 10/100Mbps Shielded Ethernet Port (Power + Data)
* 1 10/100Mbps Shielded Ethernet Port (Data)
– Efficiency: >80%
– Button: Remote Reset Button
– Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
– Power Status LEDs:
* 0-0.8A: Green
* 0.8A-1.0A: Red
– Output:
* 24VDC, 1.0A Max
* +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
– Input Voltage: 100VA-240VAC @ 50Hz-60Hz
– Dimensions(W×D×H): 110×57×33.5 mm
– Input Current: 0.8A Max @ 100VAC
– Input: 100-240VAC, 50/60Hz
– Output Voltage: 24VDC(+4,5pins; -7,8pins)
OTHERS
– Certification: CE, FCC, RoHS, IPX5
– Package Contents: Outdoor Wireless CPE, 24V 1A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide
– System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux
** Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended
– Environment:
* Operating Temperature: -30C – 70C (-22F – 158F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10%-90% non-condensing
* Storage Humidity: 5%-95% non-condensing
