Features
– Wake-on-LAN supporting
– Auto-Negotiation and Auto MDI/MDIX
– Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
– Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
– Supports power down/link down power saving
– DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware
Specifications
– Standards and Protocols:
* IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
* CSMA/CD, TCP/IP
– Interface: 32-bit PCIe 1.0a
– Transmission Rate:
* 10/100Mbps for Half-Duplex mode
* 20/200/2000Mbps for Full-Duplex mode
– Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
– Jumbo Frame: 4k Bytes
– Port: 10/100/1000Mbps RJ45
– Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (max. 100m)
EIA/TIA-568 100 Ohm STP (max. 100m)
100BASE-TX: UTP category 5, 5e cable (max. 100m)
EIA/TIA-568 100 Ohm STP (max. 100m)
1000Base-T: UTP category 5, 5e cable (max. 100m)
– LED Indicator: 1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex
– Safety & Emission: FCC, CE
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
– Operating System: DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware
– Package Contents:

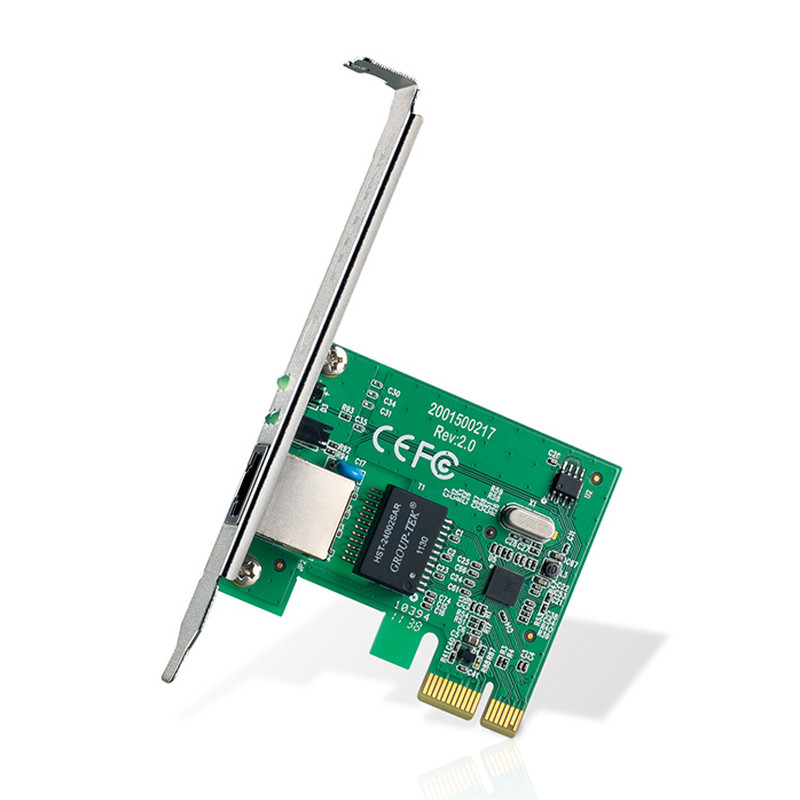

* Gigabit PCI Express Network Adapter TG-3468
* Quick Installation Guide
* Resource CD
* Low-profile Bracket
