– 10 Gbps Networking – Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions
– Versatile Compatibility – With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections

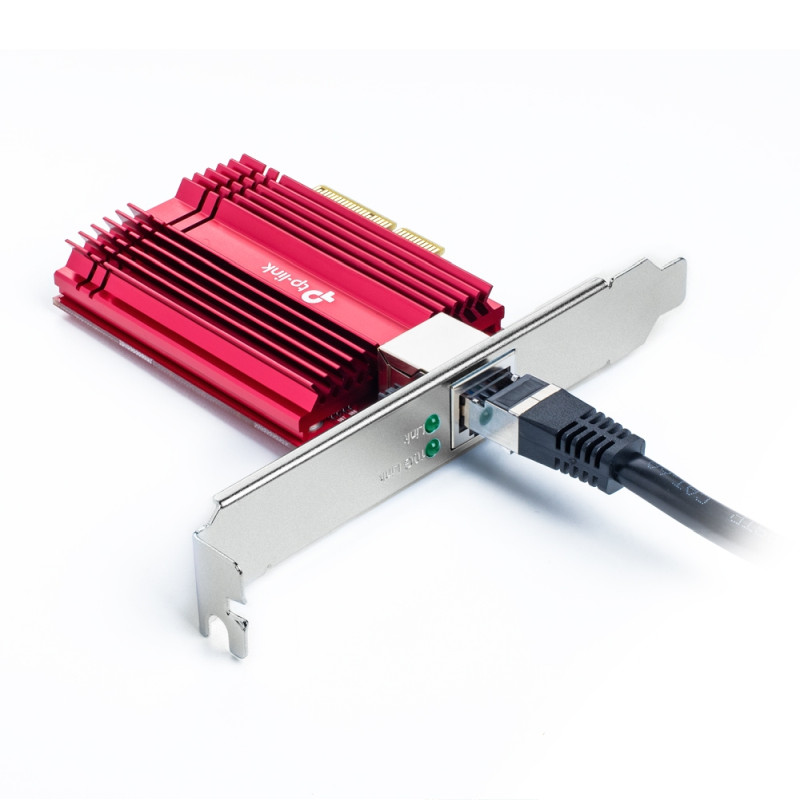

– CAT6A Ethernet Cable – To maximize TX401s performance, a 1.5 m CAT6A Ethernet Cable is included-rated for up to 10 Gbps while a regular cable is only rated for 1 Gbps

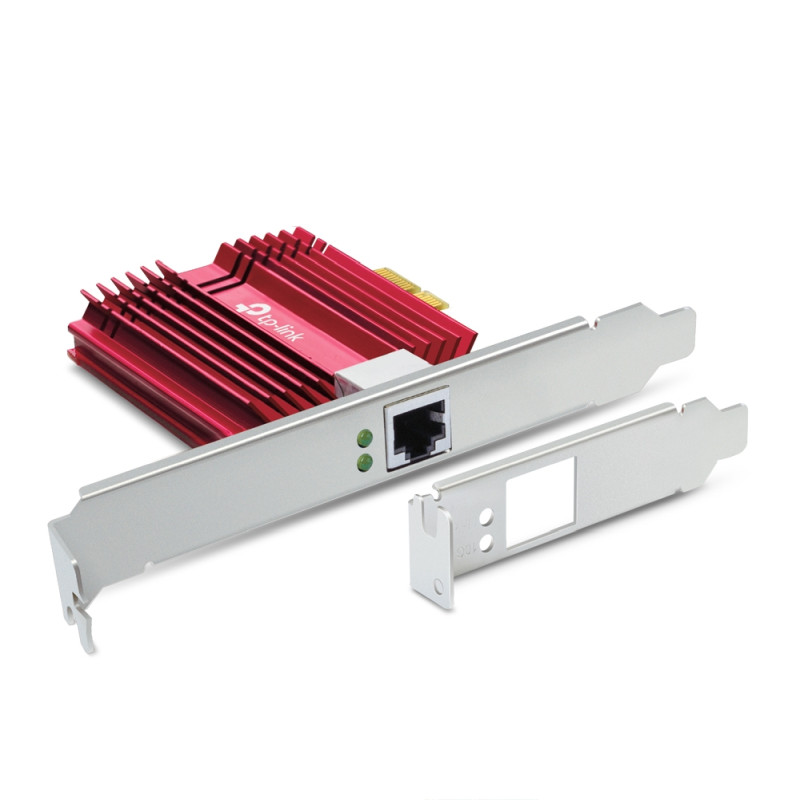

– Low-Profile and Full-Height Brackets – In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design
– Comprehensive System Support – Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs
Specifications
HARDWARE FEATURES
– Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an, IEEE802.3az, IEEE 802.3x
– Interface:
* 1× PCI Express 3.0 x4
* 1× RJ45 Gigabit/Megabit Port
– Network Media: 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX
– LED: 10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act
– Data Rates: 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode, 200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode
– Dimensions: 120.8×98.2×21.5 mm
– Flow Control: 802.3x
OTHERS
– Certification: FCC, CE, RoHS
– Package Contents:
* 10 Gigabit PCIe Network Adapter (TX401)
* Standard/Low-Profile Brackets
* Quick Installation Guide
* Resource CD
* 1.5 m CAT6A Ethernet Cable
– System Requirements: Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux
– Environment:
* Operating Temperature: 0C to 40C (32F to 104F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
