Wi-Fi 6 Upgrades Everything
– The advanced Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Gigabit Broadband Internet Access
– All gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the three gigabit ethernet LAN ports for fast, reliable wired connections.
WiFi Coverage Throughout Your Home

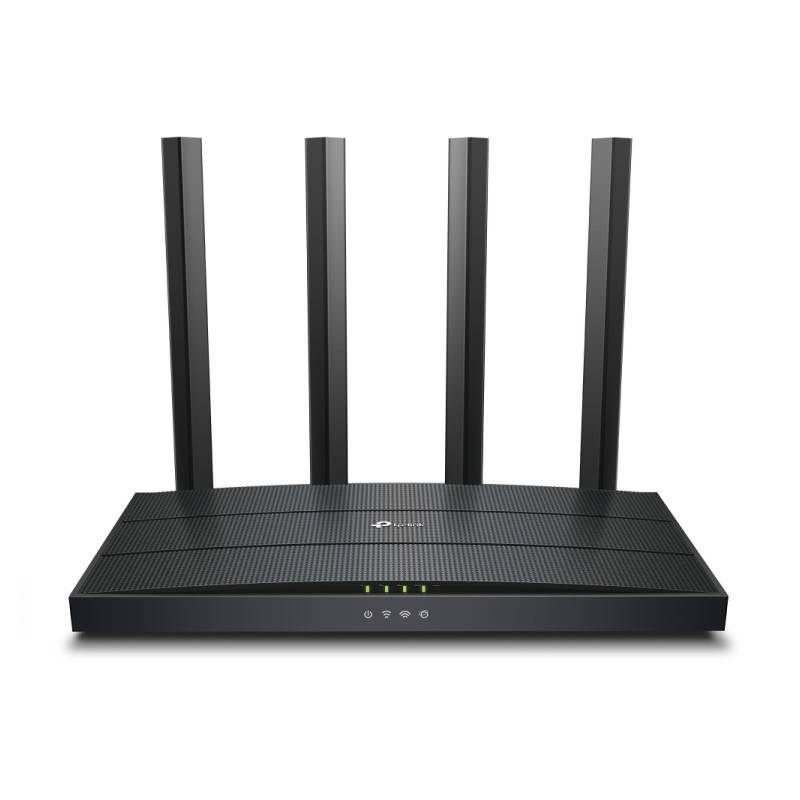

– 4 high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
WPA3—New Level of Cyber Security
– The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Easy Setup and Use
– Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX12 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
– Block inappropriate content for your children, and customize a time range for better online habits.
Easy Firmware Upgrade
– Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.
Specifications
SECURITY
– Network Security
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
– Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
– VPN Server
• OpenVPN
• PPTP
– WiFi Encryption
• WPA2-PSK
• WPA2-PSK/WPA-PSK
• WPA3-Personal
• WPA3-Personal/WPA2-PSK
• WPA2-Enterprise
• WPA/WPA2-Enterprise encryptions
WIRELESS
– Standards- Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11n/b/g 2.4 GHz
– WiFi Speeds – AX1500
• 5 GHz: 1201 Mbps (802.11ax)
• 2.4 GHz: 300 Mbps (802.11n)
-W iFi Range: 2-3 Bedroom Houses
• 4× Fixed High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
– WiFi Capacity: High
• Dual-Band: Allocate devices to different bands for optimal performance
• OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime Fairness: Improves network efficiency by limiting excessive occupation
• 4 Streams: Connect your devices to more bandwidth
– Working Modes
• Router Mode
• Access Point Mode
HARDWARE

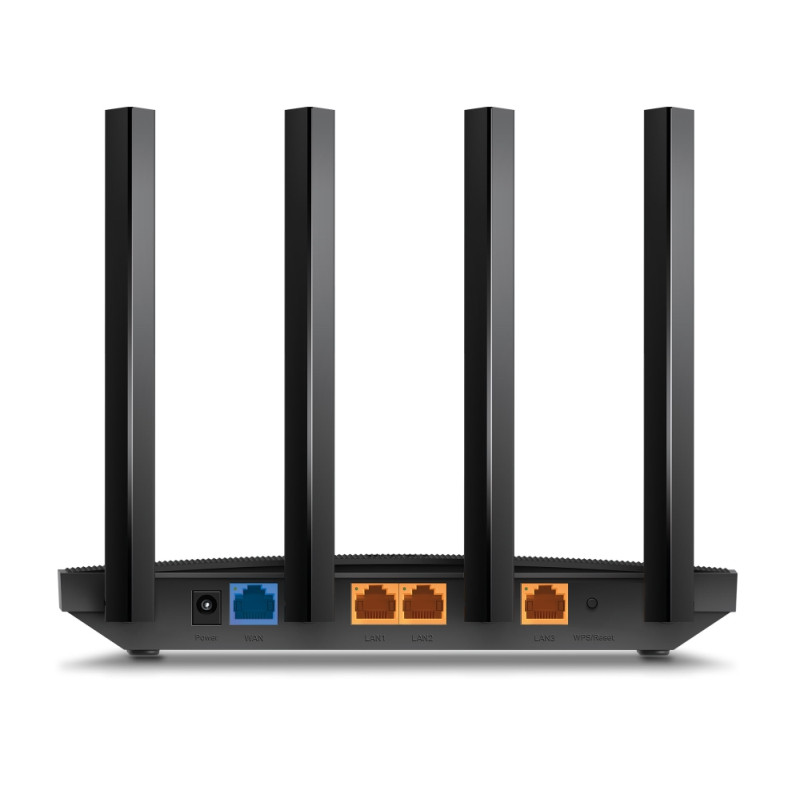

– Ethernet Ports
• 1× Gigabit WAN Port
• 3× Gigabit LAN Ports
– Buttons
• WPS/Wi-Fi Button
• Reset Button
– Power: 12 V – 1 A
SOFTWARE
– Protocols
• IPv4
• IPv6
– Parental Controls
• URL Filtering
• Time Controls
– WAN Types
• Dynamic IP
• Static IP
• PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
– Quality of Service: QoS by Device
– Cloud Service
• Auto Firmware Upgrade
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
– NAT Forwarding
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
– IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
– DHCP
• Address Reservation
• DHCP Client List
• Server
– DDNS
• TP-Link
• NO-IP
• DynDNS
– Management
• Tether App
• Webpage
OTHER
– System Requirements
• Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC
• OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
• Java-enabled browser
• Cable or DSL Modem
• Subscription with an internet service provider (for internet access)
– Certifications: FCC, CE, RoHS
– Environment: Operating Temperature: 0?~40? (3? ~104?)
– Storage Temperature: -40?~60? (-40? ~140?)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
TEST DATA
– WiFi Transmission Power
• CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
•FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity
• 5 GHz:
11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm
• 2.4 GHz:
11g 6Mbps: -96 54Mbps: -80
HT20-MCS0: -97 MCS7: -78
HT40-MCS0: -94 MCS7: -75
PHYSICAL
– Dimensions (W×D×H): 8.5 × 4.6 ×1.3 in (215 × 117 × 32 mm)
– Package Contents

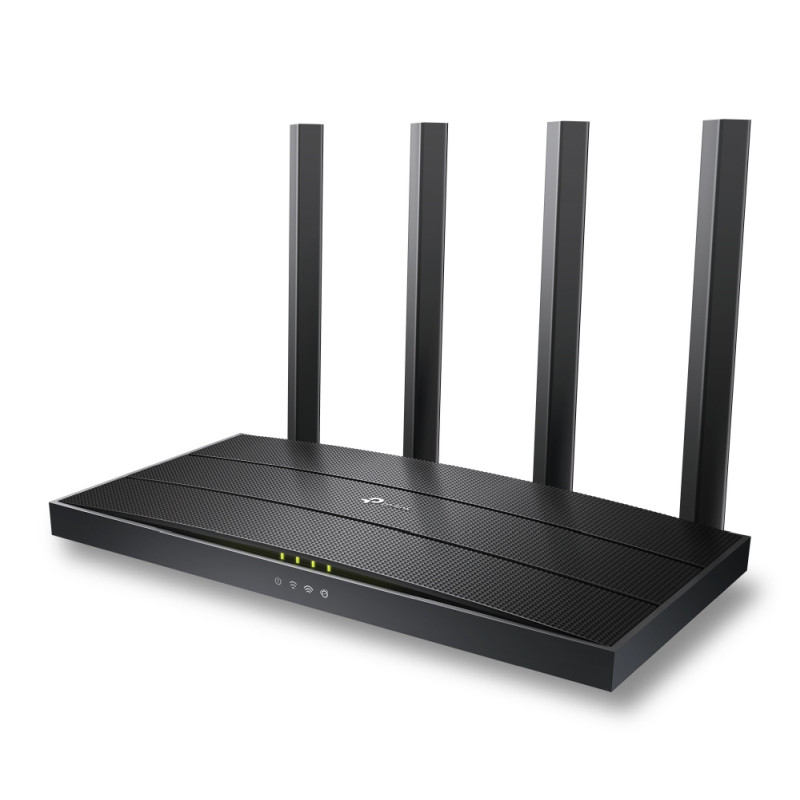

• Wireless Router Archer AX12
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
