– High-Performance Wi-Fi for the Mainstream
– 802.11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band

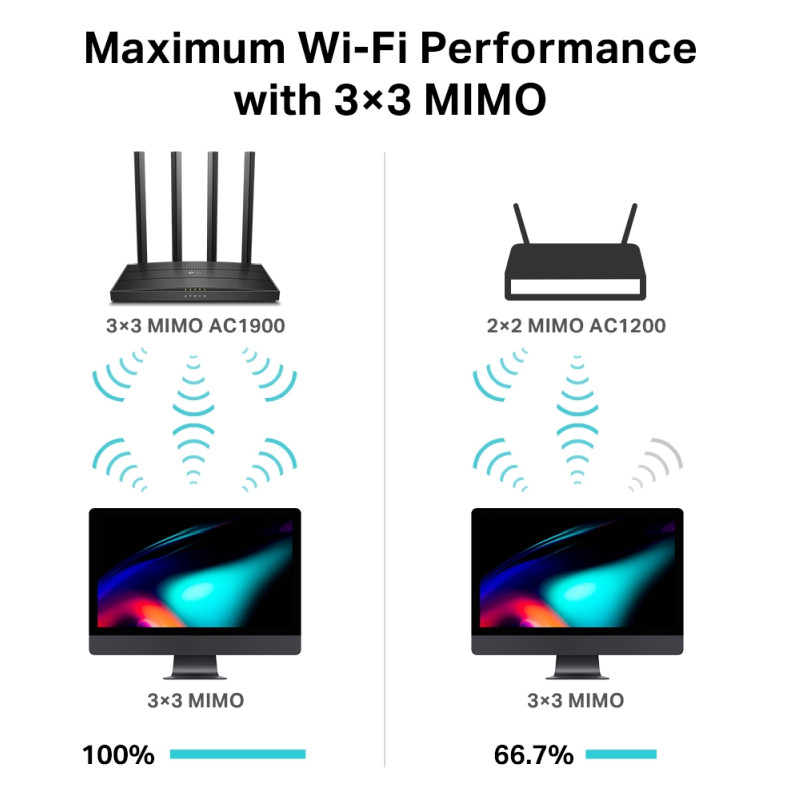

– 3×3 MIMO Technology – Transmitting and receiving data on three streams to pair flawlessly with your 3×3 clients
– Boosted Wi-Fi Coverage – Beamforming technology delivers a highly efficient wireless connection
– MU-MIMO – To help your devices achieve optimal performance by making communication more efficient
– Personalized Management – Advanced features like Parental Controls, Guest Network, and Access Control provide individualized tools for network management
– Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage
Specifications
HARDWARE FEATURES

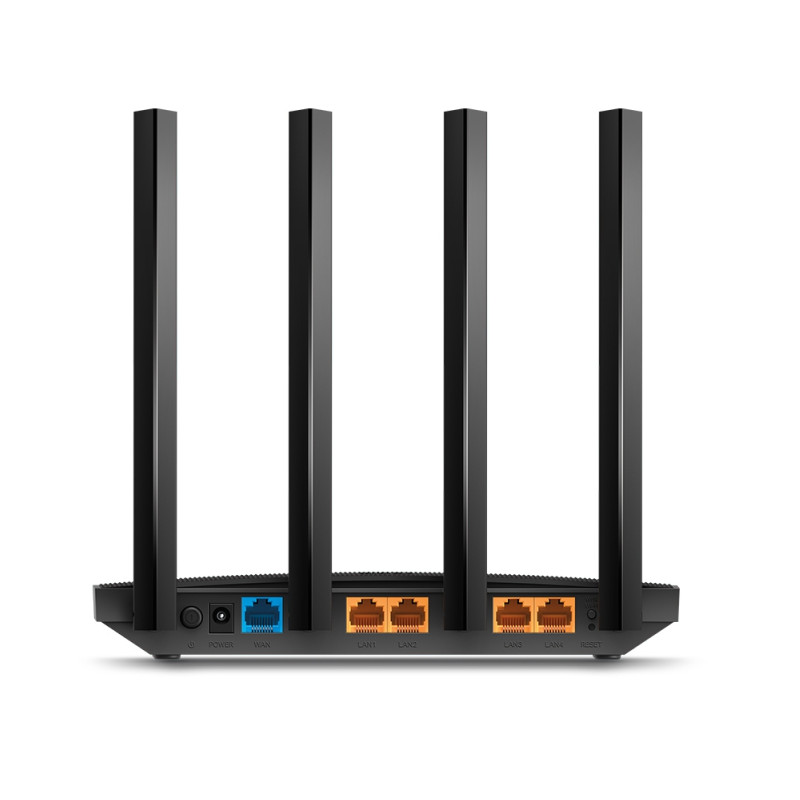

– Interface:
* 4× 10/100/1000Mbps LAN Ports
* 1× 10/100/1000Mbps WAN Port
– Button: Reset Button, WPS/Wi-Fi Button, Power On/off Button
– External Power Supply: 12V/1A
– Dimensions (W×D×H): 215×117×32 mm
– Antenna: 4× Fixed Omni Directional Antennas
WIRELESS FEATURES
– Wireless Standards:
* IEEE 802.11a/n/ac 5 GHz
* IEEE 802.11b/g/n 2.4 GHz
– Frequency: 2.4 GHz and 5 GHz
– Signal Rate: 1300 Mbps on 5 GHz + 600 Mbps on 2.4 GHz
Reception Sensitivity:
* 5 GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm
* 2.4 GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
– Transmit Power:
* CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
* FCC:<30dBm(2.4 GHz & 5 GHz)
– Wireless Functions: Enable/Disable Wireless Radio, WMM
– Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
– Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
SOFTWARE FEATURES
– Quality of Service: Device Prioritization
– WAN Type: Dynamic IP/Static IP/PPPoE(Dual Access)/PPTP(Dual Access)/L2TP(Dual Access)
– Management: Parental Controls, Local Management, Remote Management
– DHCP: Server, DHCP Client List, Address Reservation
– Port Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
– Dynamic DNS: DynDns, NO-IP, TP-Link
– Access Control: Local Management Control, White List, Black List
– Firewall Security: SPI Firewall, IP and MAC Address Binding
– Protocols: Supports IPv4 and IPv6
– Advanced Features:
* MU-MIMO
* Beamforming
* Smart Connect
* Airtime Fairness
* Quality of Service
OTHERS
– Certification: CE, FCC, RoHS
– Package Contents: Wireless Router Archer C80, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
– System Requirements:
* Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
* Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
* Java-enabled browser
* Cable or DSL Modem
* Subscription with an internet service provider (for internet access)
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
