1900 Mbps WiFi Speed
– Enjoy binge watching your favorite series in 4K with combined speeds of up to 1900 Mbps (600 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz ) with 3×3 MU-MIMO technology.† ‡

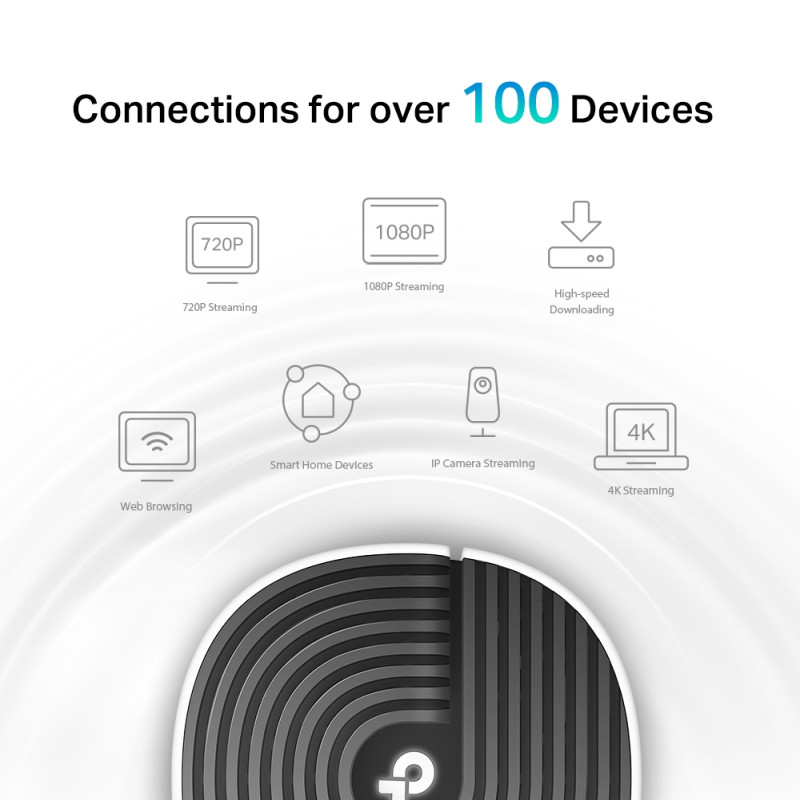

Connect 100+ Devices
– Deco handles traffic from even the busiest of networks, providing lag-free connections for over 100 devices.†

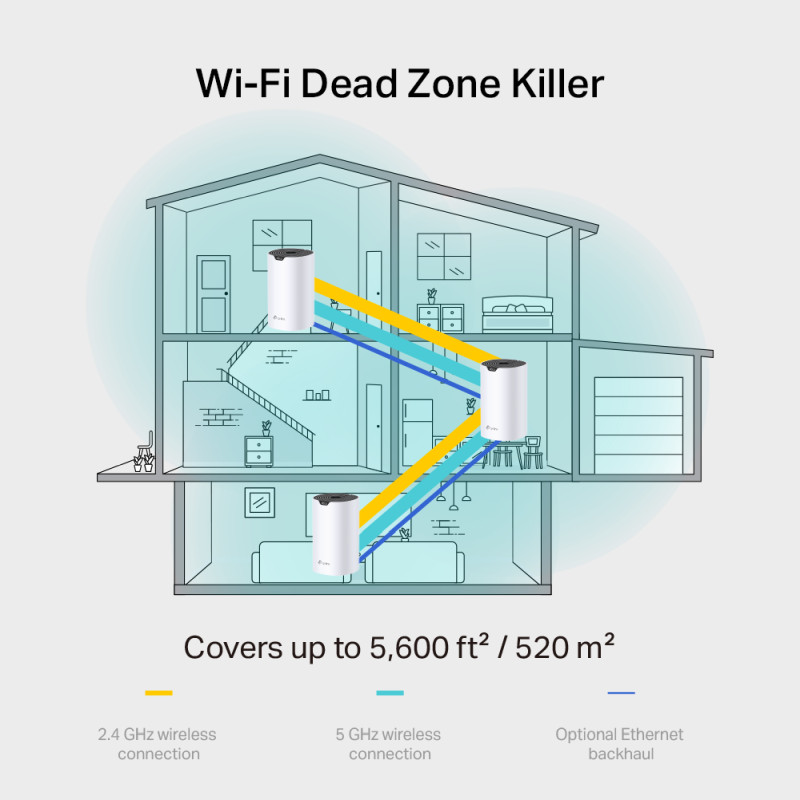

Boosted Seamless Coverage
– With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds. §
Full Gigabit Ethernet
– 3× Gigabit WAN/LAN Ethernet ports provide solid internet access at high speeds.?
Robust Parental Controls
– Limit online time and block inappropriate websites according to unique profiles you create for each family member.
Two Modes in One
– Works as a router or access point for a flexible home network.
Easy Setup
– Setup is easier than ever with the Deco app there to walk you through every step.
Specifications
WIRELESS
– Standards: Wi-Fi 5
– IEEE 802.11ac/n/a: 5 GHz
– IEEE 802.11n/b/g: 2.4 GHz
– WiFi Speeds: AC1900
• 5 GHz: 1300 Mbps (802.11ac)
• 2.4 GHz: 600 Mbps (802.11n)
– WiFi Range:
• 2-4 Bedroom Houses (2-pack)
• TP-Link Mesh Technology: Optional Ethernet backhaul works together to link Deco units to provide seamless coverage
• 3× Antennas (Internal): Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
– WiFi Capacity: Medium
• Dual-Band: Distribute devices to different bands for optimal performance
• MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
– Working Modes
• Router Mode
• Access Point Mode
SECURITY
– Network Security: SPI Firewall, Access Control
– Guest Network:
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
– WiFi Encryption:
• WPA-Personal
• WPA2-Personal
HARDWARE

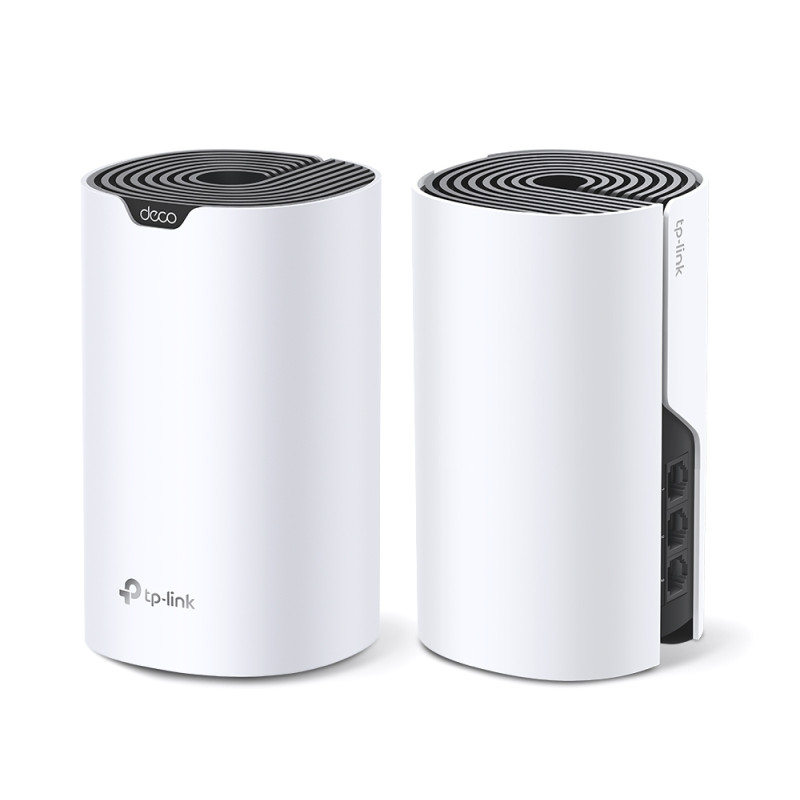

– Ethernet Ports: 3× Gigabit Ports
* Per Deco Unit
* Supports WAN/LAN auto-sensing
– Buttons: Reset Button
SOFTWARE
– Protocol: IPv4, IPv6
– Parental Controls: URL Filtering, Time Controls
– WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
– Quality of Service: QoS by Device
– Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS
– NAT Forwarding: Port Forwarding, UPnP
– IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
– DHCP: Address Reservation, DHCP Client List, Server
– DDNS: TP-Link
– Management: Deco App
TEST DATA
WiFi Transmission Power
– CE:
• <20 dBm (2.4 GHz)
• <23 dBm (5 GHz)
– FCC:
• <30 dBm (2.4 GHz)
• <30 dBm (5 GHz)
PHYSICAL
– Dimensions (W×D×H): 6.4 × 3.6 × 3.6 in (162.3 × 90.7 × 90.7 mm)
OTHERS
– Certification: CE, FCC, RoHS, NCC, BSMI, JRF, JPA, VCCI
– System Requirements: Android 5.0 or later, iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
Environment
– Operating Temperature: 0?~40? (32? ~104?)
– Storage Temperature: -40?~60? (-40? ~140?)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
– For additional version information, please go to the support page.
Package Contents

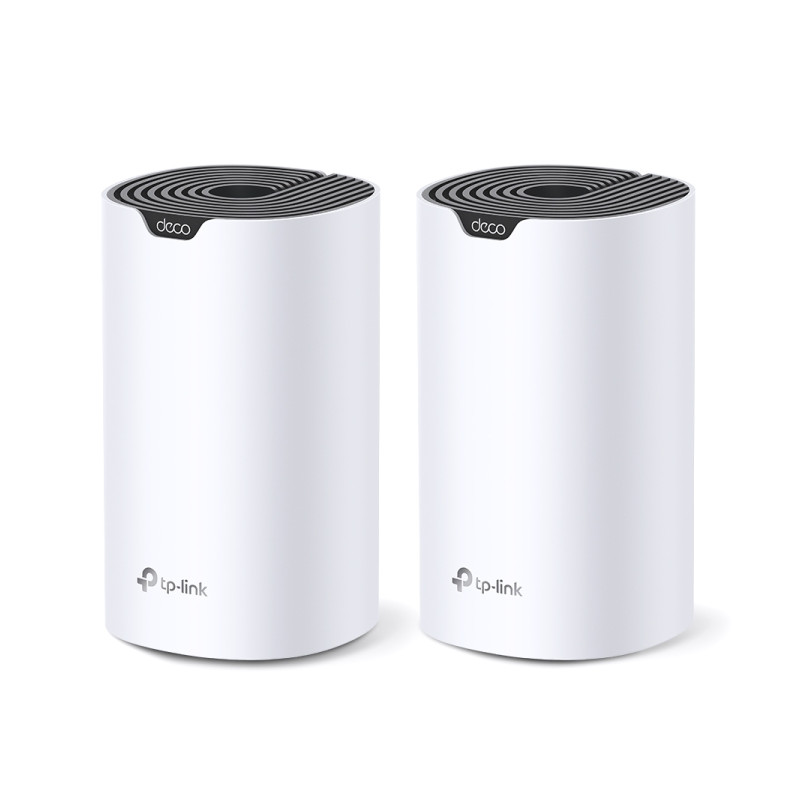

– Deco S7 (2-pack)
– 2 Deco S7 Units
– 1 RJ45 Ethernet Cable
– 2 Power Adapters
– Quick Installation Guide
