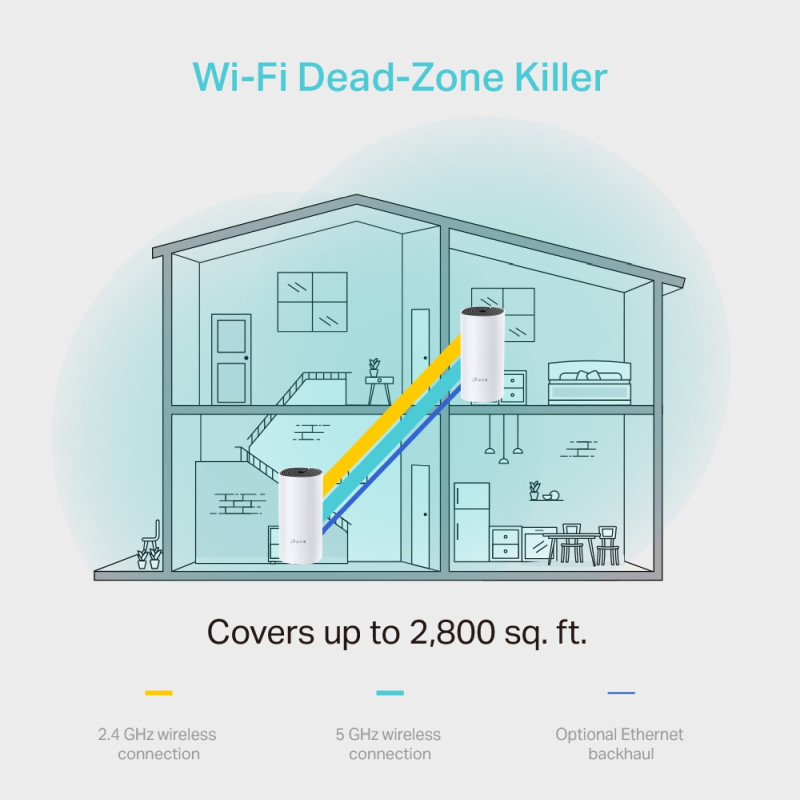

Wi-Fi DEAD-ZONE KILLER
– Eliminate weak signal areas with a single Wi-Fi network that covers every corner with seamless roaming, adaptive routing and self-healing
– No more searching around for a stable connection, whether you’re in the basement, garage or yard
TRUE SEAMLESS ROAMING
– Deco units work together to form one unified network
– Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless online experience
– Support for IEEE 802.11r as well as 802.11k/v mean switching from one Deco to another is so smooth its unnoticeable, even during streaming
ADAPTIVE PATH SELECTION
– TP-Link Mesh Technology dynamically chooses the best route and band for your data, guaranteeing a fast connection no matter where you are in the home
SELF-HEALING
– If one Deco has an issue, the system will automatically reroute data via the other Decos to make sure you stay online
Wi-Fi + POWERLINE
– Powerline connections utilize your home’s electrical circuit to link Decos, bypassing even the thickest of walls and ceilings
– The combination of powerline and wireless connections achieves up to 60% faster network speeds compared with only wireless connection
IoT MESH
– Unlike traditional smart hubs, TP-Link Mesh Technology provides whole-home IoT coverage with Wi-Fi, Bluetooth and Zigbee integrated into a single system
– Enjoy the magic of your smart home in every room with TP-Link Mesh Technology
– Say goodbye to countless hubs
Fetaures
– Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage – eliminate weak signal areas once and for all!
– With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds
– A Deco M4 three-pack delivers Wi-Fi to an area of up to 4.000 square feet (EU version). And if that’s not enough, simply add more Decos to the network anytime to increase coverage
– Deco M4 provides fast and stable connections with speeds of up to 1167 Mbps and works with major internet service provider (ISP) and modem
– Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices
– Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member

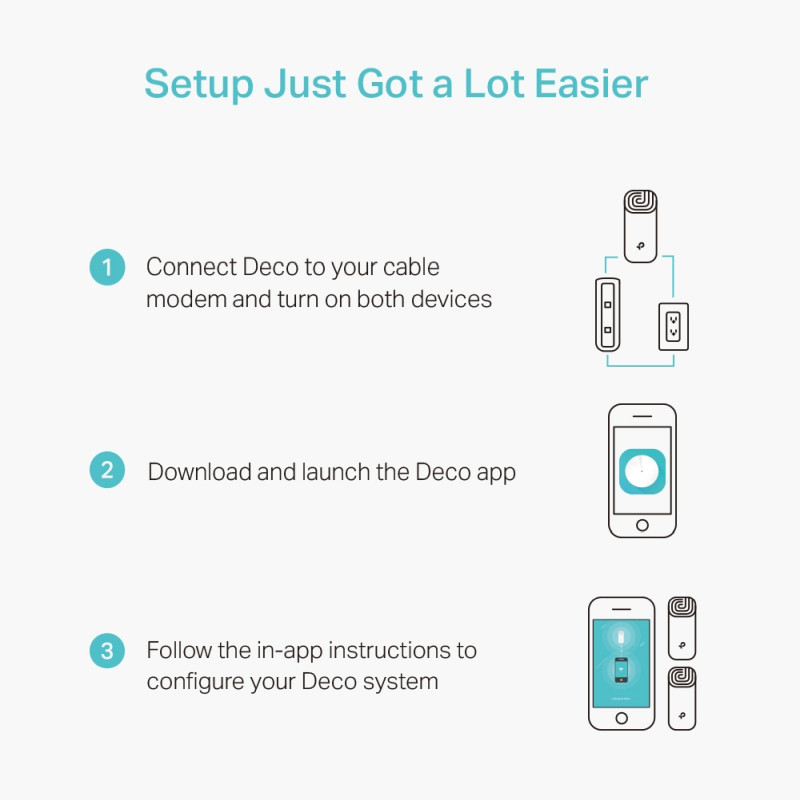

– Setup is easier than ever with the Deco app there to walk you through every step
Specifications
POWER
– AC adapter input: 100-240V – 50/60Hz 0.4A
– AC adapter output: 12V / 1.2A
HARDWARE FEATURES
– Processor: Qualcomm CPU
– Interface: 2 Gigabit Ethernet Ports (WAN/LAN auto-sensing) per Deco unit
– Button: 1 Reset button on the underside
– External Power Supply: 12V/1.2A
– Dimensions: fi 90.7×190 mm
– Antenna Type: 2 internal dual-band antennas per Deco unit
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
– Frequency: 2.4 GHz and 5 GHz
– Signal Rate:
* 300 Mbps on 2.4 GHz
* 867 Mbps on 5 GHz
– Transmit Power:
* FCC: <30 dBm
* CE: <20 dBm (2.4 GHz)
* <23 dBm (5 GHz)
– Wireless Security: WPA-PSK/WPA2-PSK
– Advanced Functions:
* Router/ Access Point Mode
* Optional Ethernet Backhaul
* Guest network
* TP-Link Mesh Technology: MU-MIMO, Auto Path Selection, Self-Healing, AP Steering, Band Steering, Beamforming
SOFTWARE FEATURES
– Quality of Service: WMM
– IPv6: Support
– WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
– Management: Local Management, Remote Management
– DHCP: Server, Client
– Port Forwarding: Support
– Access Control: Blacklist
– Firewall Security: SPI Firewall
– Protocols: Supports IPv4 and IPv6
– Advanced Features:
* Parental Controls
* Quality of Service
– Advanced Functions:
* Monthly Reports
* Auto FW Update
* Expand Wi-Fi by adding more Deco units
– Guest Network:
* 2.4 GHz guest network ×1
* 5 GHz guest network ×1
– Beamforming: Support
– APP: Easy setup via Deco App
OTHERS
– Certification: CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
– Smartphone/Tablet Requirements: iOS 9.0 or later, Android 4.3 or later
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
– Package Contents:

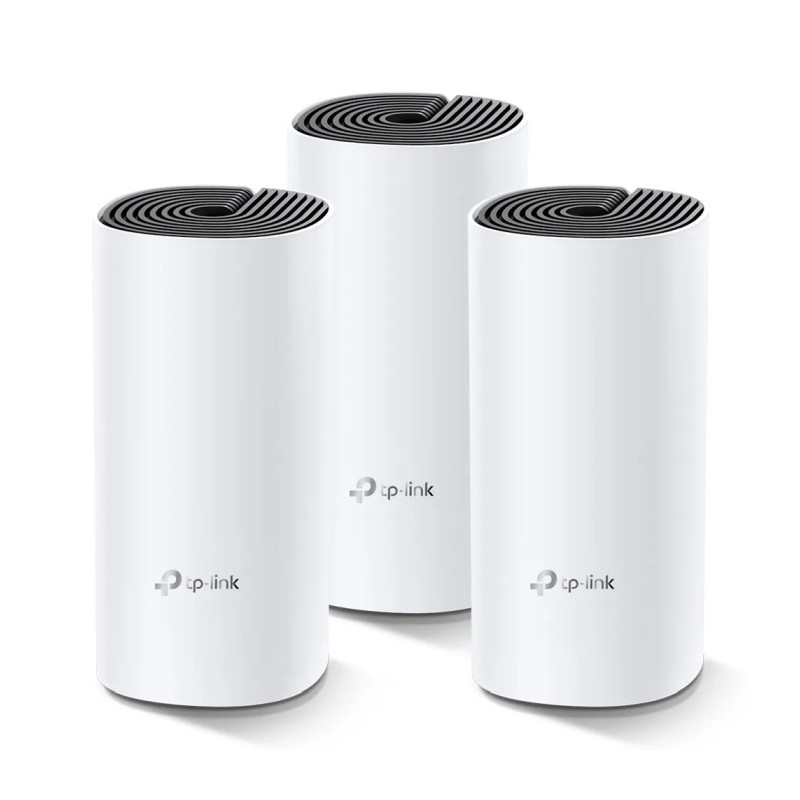

* 3 Deco units
* 1 RJ45 Ethernet Cable
* 3 power adapters
* 1 quick installation guide
