– 10G Lightning-Fast Connections: 8× 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity. Learn More about TP-Link 10G/Multi-Gigabit Switching Solutions
– Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
– Centralized Management: Easy and convenient management with cloud access and Omada app.
– Static Routing: Route internal traffic for the efficient use of network resources.
– Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, and Radius Authentication
– Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping.
– Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Specifications
HARDWARE FEATURES

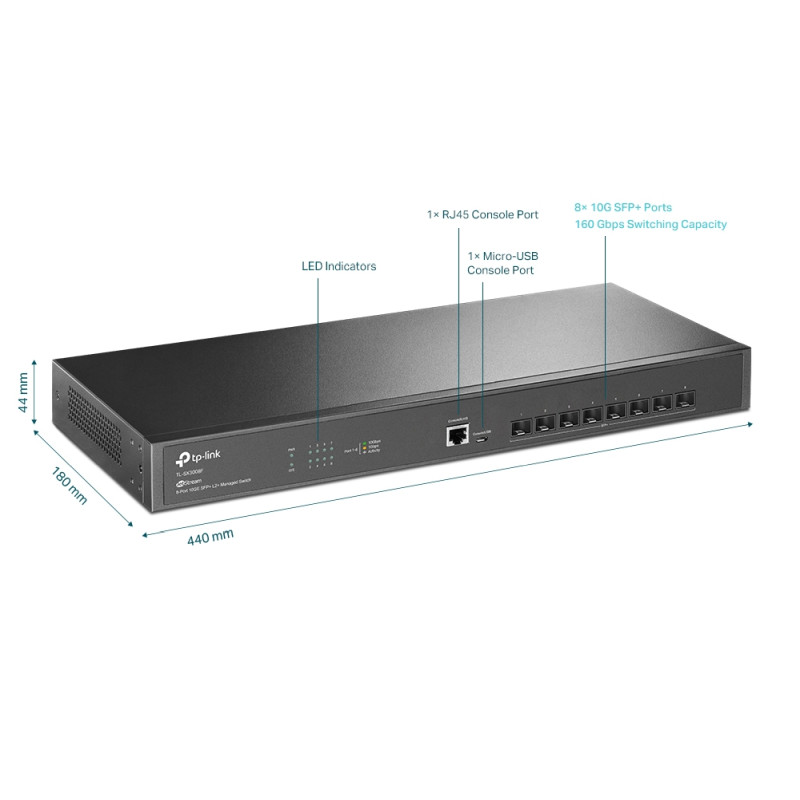

– Interface:
* 8× 10GE SFP+ Slots
* 1× RJ45 Console Port
* 1× Micro-USB Console Port
– Fan Quantity: Fanless

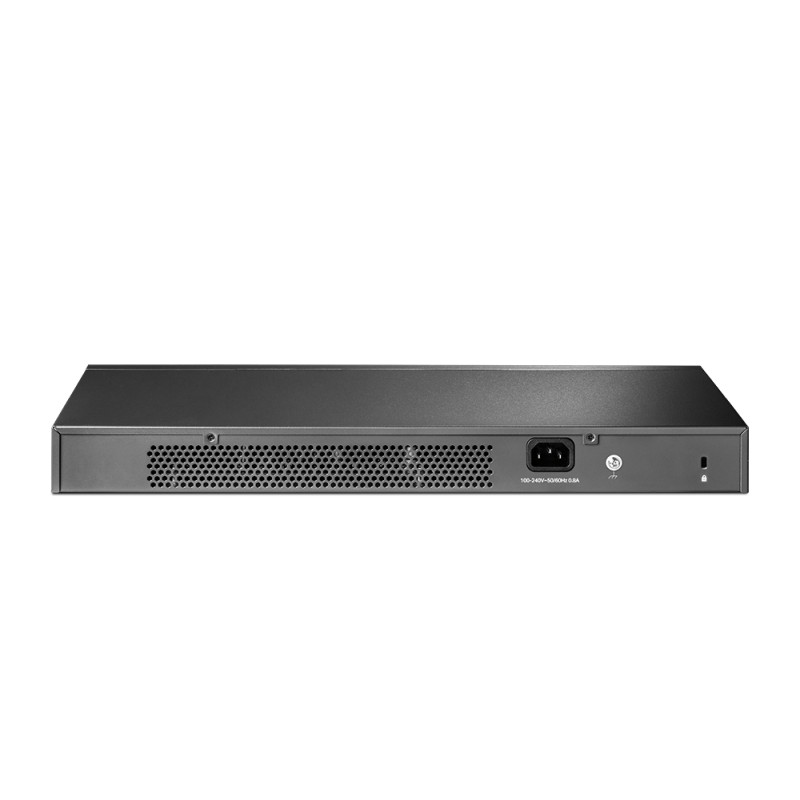

– Power Supply: 100-240 V AC~50/60 Hz
– Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
– Mounting: Rack Mountable
– Max Power Consumption: 15.46 W (220 V / 50 Hz)
– Max Heat Dissipation: 52.75 BTU/hr (220 V / 50 Hz)
PERFORMANCE
– Switching Capacity: 160 Gbps
– Packet Forwarding Rate: 119.04 Mpps
– MAC Address Table: 32 K
– Packet Buffer Memory: 16 Mbit
– Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service:
* 8 priority queues
* 802.1p CoS/DSCP priority
* Queue scheduling
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– SP+WRR
* Bandwidth Control
– Port/Flow based Rating Limiting
* Smoother Performance
* Action for Flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark
L2 and L2+ Features
* Link Aggregation
– static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups, containing 8 ports per group
* Spanning Tree Protocol
– 802.1d STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter, Root Protect
* Loopback Detection
– Port based
– VLAN based
* Flow Control
– 802.3x Flow Control
– HOL Blocking Prevention
* Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Tx/Rx/Both
L2 Multicast
* IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– IGMP Authentication
* IGMP Authentication
* MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
– Limited IP Multicast
* MVR
* Multicast Filtering: 256 profiles and 16 entries per profile
VLAN
* VLAN Group
– Max 4K VLAN Groups
* 802.1Q Tagged VLAN
* MAC VLAN: 30 Entries
* Protocol VLAN: Protocol Template 16, Protocol VLAN 16
* Private VLAN
* GVRP
* VLAN VPN (QinQ)
– Port-Based QinQ
– Selective QinQ
* Voice VLAN
Access Control List
* Time-based ACL
* MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
* IP ACL
-Source IP
– Destination IP
– Fragment
– IP Protocol
– TCP Flag
– TCP/UDP Port
– DSCP/IP TOS
– User Priority
* Combined ACL
* Packet Content ACL
* IPv6 ACL
* Policy
– Mirroring
– Redirect
– Rate Limit
– QoS Remark
* ACL apply to Port/VLAN
Security
* IP-MAC-Port Binding
– 512 Entries
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard: 100 Entries
* IPv6-MAC-Port Binding
– 512 Entries
– DHCPv6 Snooping
– ND Detection
– IPv6 Source Guard: 100 Entries
* DoS Defend
* Static/Dynamic Port Security
– Up to 64 MAC addresses per port
* Broadcast/Multicast/Unicast Storm Control
– kbps/ratio control mode
* 802.1X
– Port base authentication
– Mac base authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Support Radius authentication andaccountability
* AAA (including TACACS+)
* Port Isolation
* Secure web management through HTTPS with SSLv3/TLS 1.2
* Secure Command Line Interface (CLI) management with SSHv1/SSHv2
* IP/Port/MAC based access control
IPv6
* IPv6 Dual IPv4/IPv6
* Multicast Listener Discovery (MLD) Snooping
* IPv6 ACL
* IPv6 Interface
* Static IPv6 Routing
* IPv6 neighbor discovery (ND)
* Path maximum transmission unit (MTU) discovery
* Internet Control Message Protocol (ICMP) version 6
* TCPv6/UDPv6
* IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet (v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP
L3 Features
* 16 IPv4/IPv6 Interfaces
* Static Routing
– 48 static routes
* Static ARP
– 128 Static Entries
* Proxy ARP
* Gratuitous ARP
* DHCP Server
* DHCP Relay
– DHCP Interface Relay
– DHCP VLAN Relay
* DHCP L2 Relay
Advanced Features
* Automatic Device Discovery
* Batch Configuration
* Batch Firmware Upgrading
* Intelligent Network Monitoring
* Abnormal Event Warnings
* Unified Configuration
* Reboot Schedule
MIBs
* MIB II (RFC1213)
* Interface MIB (RFC2233)
* Ethernet Interface MIB (RFC1643)
* Bridge MIB (RFC1493)
* P/Q-Bridge MIB (RFC2674)
* RMON MIB (RFC2819)
* RMON2 MIB (RFC2021)
* Radius Accounting Client MIB (RFC2620)
* Radius Authentication Client MIB (RFC2618)
* Remote Ping, Traceroute MIB (RFC2925)
* Support TP-Link private MIB
MANAGEMENT
– Omada App: Yes/ Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
– Centralized Management:
* Omada Cloud-Based Controller
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
– Cloud Access: Yes/ Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
– Zero-Touch Provisioning: Yes/ Requiring the use of Omada Cloud-Based Controller.
– Management Features:
* Web-based GUI
* Command Line Interface (CLI) through the console port, telnet
* SNMP v1/v2c/v3
* Trap/Inform
* RMON (1,2,3,9 groups)
* SDM Template
* DHCP/BOOTP Client
* 802.1ab LLDP/LLDP-MED
* DHCP AutoInstall
* Dual Image, Dual Configuration
* CPU Monitoring
* Cable Diagnostics
* EEE
* Password Recovery
* SNTP
OTHERS
– Certification:CE, FCC, RoHS
– Package Contents:
* TL-SX3008F Switch
* Power Cord
* Quick Installation Guide
* Rackmount Kit
* Rubber Feet
* System Log
– System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux
– Environment:
* Operating Temperature: 0–45 ? (32–113 ?);
* Storage Temperature: -40–70 ? (-40–158 ?)
* Operating Humidity: 10–90% RH non-condensing
* Storage Humidity: 5–90% RH non-condensing
