– Eight 10 Gbps Ports: 8× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity

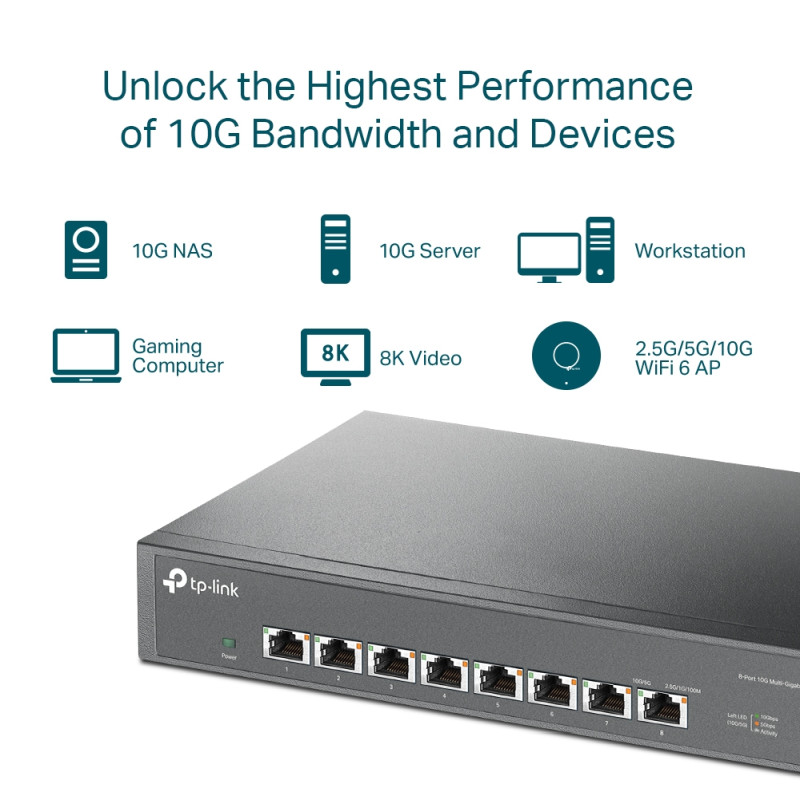

– Lightning-Fast Connections: Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more
– Ideal for Various Scenarios: Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment
– Optimal 5-Speed Connections: Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance
– Wide Operation Temperature: Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0C to 50C)
– Plug and Play: Allows for easy deployment without the need for a technician
Specifications
HARDWARE FEATURES
– Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
– Interface: 8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
– Fan Quantity: 1 (Intelligent fan speed adjustment)

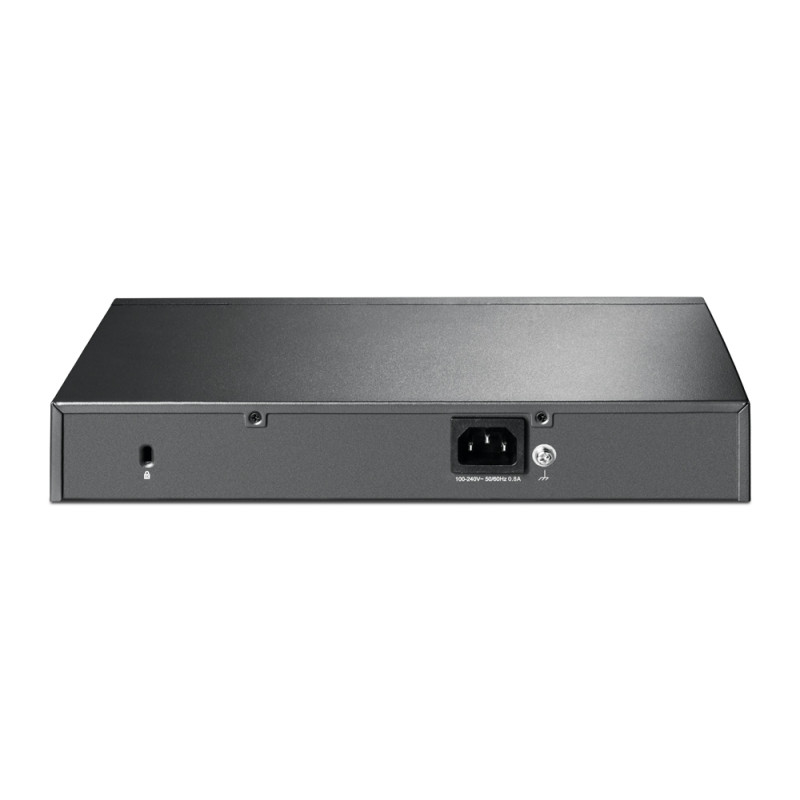

– External Power Supply: 100–240 VAC, 50/60 Hz, 0.8A
– LED Indicator:
* System Power: 1
* Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port
– Dimensions (W×D×H): 294×180×44 mm
– Max Power Consumption: 31.2 W
PERFORMANCE
– Switching Capacity: 160 Gbps
– Packet Forwarding Rate: 119.0 Mpps
– MAC Address Table: 32 K
– Packet Buffer Memory: 2 Mb
– Jumbo Frame: 10 KB
SOFTWARE FEATURES
– Advanced Features: 802.3X Flow Control, 802.1p/DSCP QoS
– Transfer Method: Store and Forward
OTHERS
– Certification: CE, FCC, RoHS
– Package Contents:

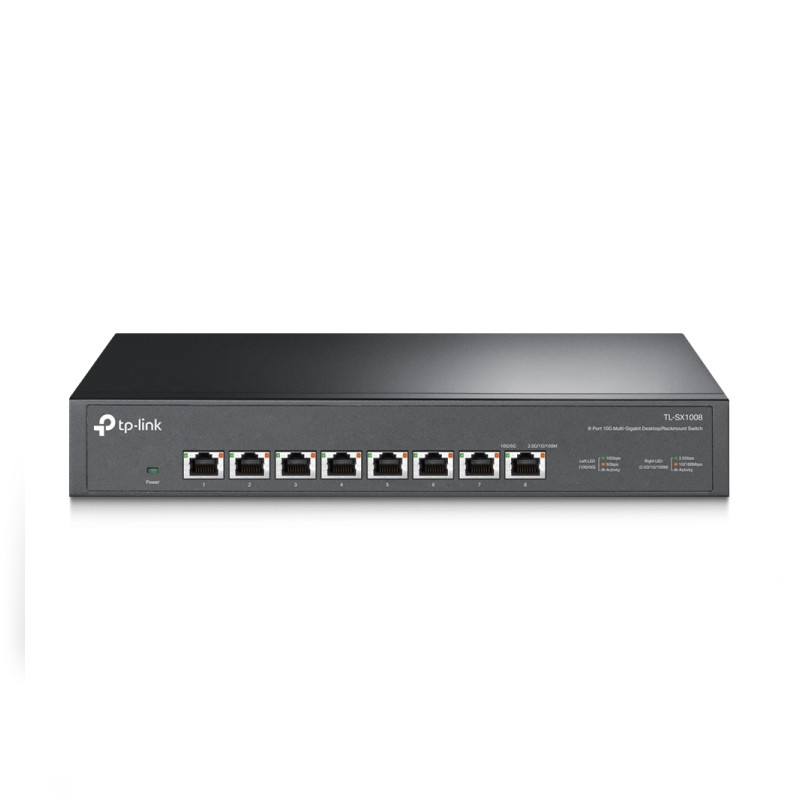

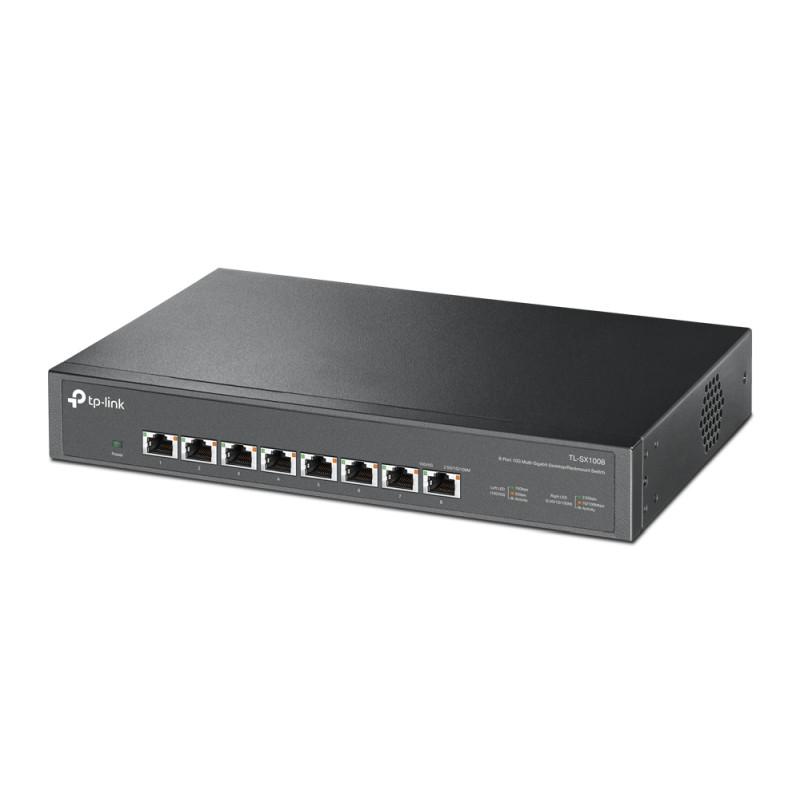

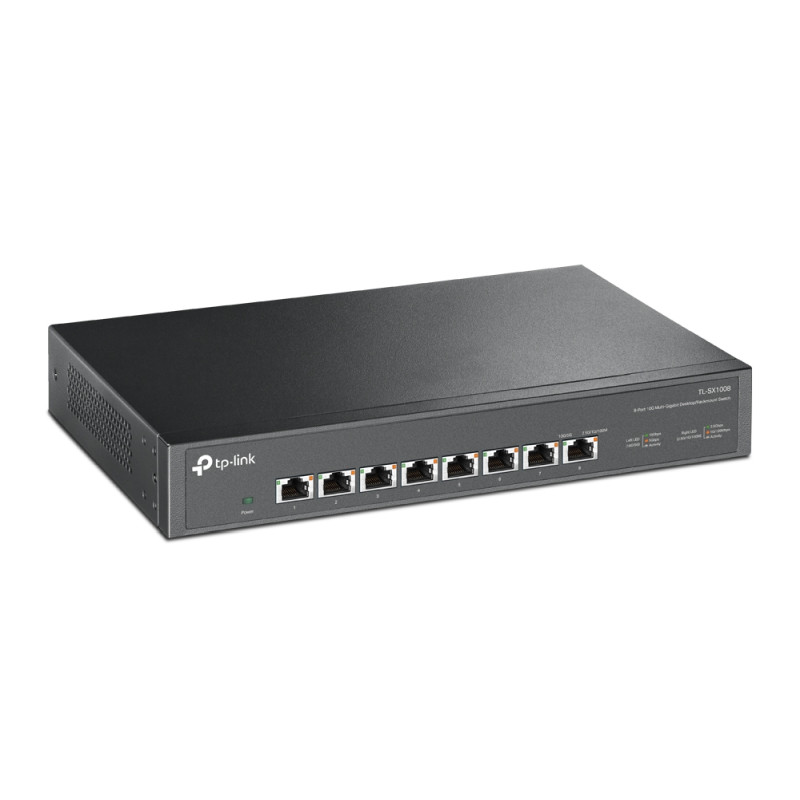

* 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX1008
* Power Cord
* Installation Guide
* Rackmount Kit
* Rubber Feet
– Environment:
* Operating Temperature: 0C to 50C (32F to 122F)
* Storage Temperature: -40C to 70C (-40F to 158F)
* Operating Humidity: 10% – 90% RH non-condensing
* Storage Humidity: 5% – 90% RH non-condensing
