Features
– All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps
– Supports Auto-MDI/MDIX function
– Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
– Store and forward Switching scheme
Specifications
– Standards and Protocols:
* IEEE802.3, 802.3u, 802.3ab, 802.3x
* CSMA/CD, TCP/IP
– Basic Function:
* Wire-speed Performance
* MAC Address Auto-Learning and Auto-aging
* IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
– Backbound Bandwidth: 32Gbps
– MAC Address Table: 8k
– Forwarding Rate:
* 10BASE-T: 14880pps/port
* 100BASE-TX: 148800pps/port
* 1000BASE-T: 1488000pps/port
– Transmission Method: Store-and-Forward

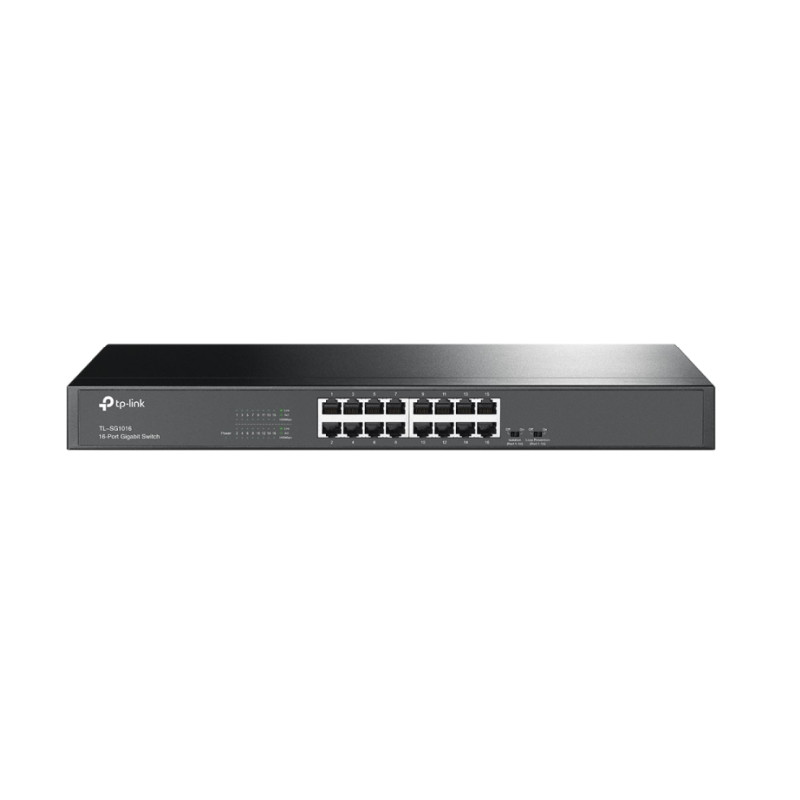

– Ports: 16× 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
– Network Media:
* 10Base-T: UTP category 3, 4, 5 cable (max. 100m)
* EIA/TIA-568 100 STP (max. 100m)
* 100Base-Tx: UTP category 5, 5e cable (max. 100m)
* EIA/TIA-568 100 STP (max. 100m)
* 1000Base-T: UTP category 5, 5e cable (max. 100m)
– LED Indicators: Power, Link/Act (1000Mbps, 10/100Mbps)
– Safety & Emission: FCC, CE
– Dimensions (W×D×H): 17.3 x 7.1 x 1.7 in.(440*180*44 mm)
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
– Power: 100-240VAC, 50/60Hz
