WHAT THIS PRODUCT DOES

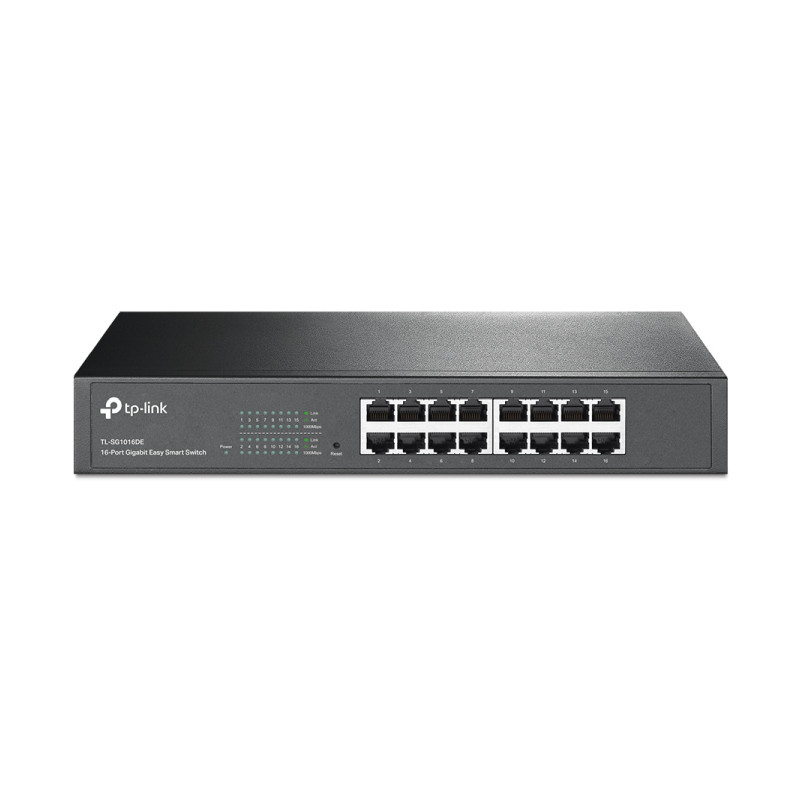

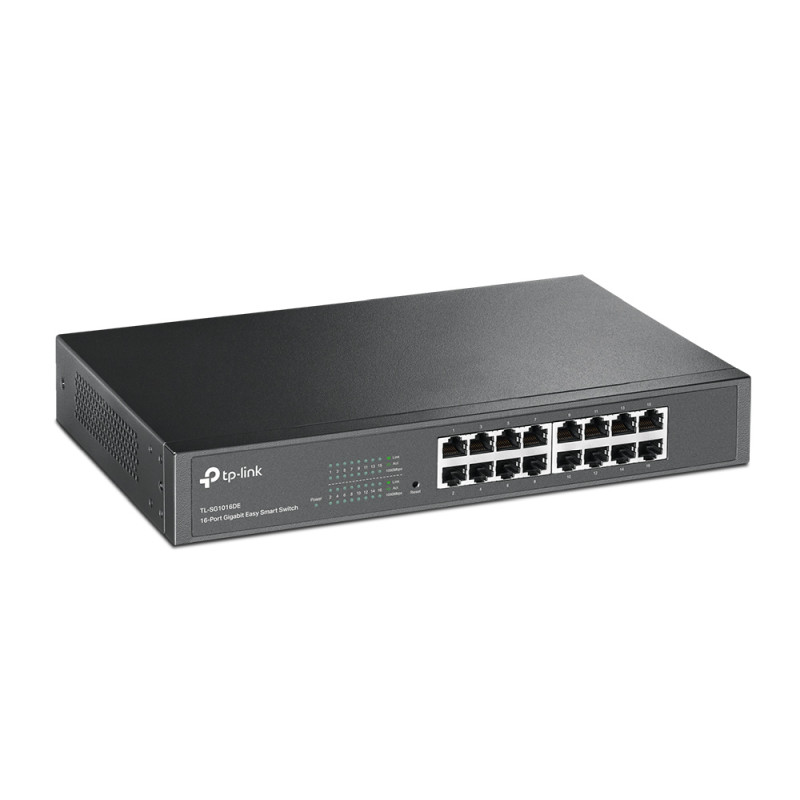

– The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management
– Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features
– To optimize traffic on your business network, TL-SG1016DE offers Port Priority/802.1P Priority and DSCP QoS1 to keep latency-sensitive traffic moving smoothly and jitter-free
– Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save power consumption, making it an eco-friendly solution for your business network
Features
– 16 10/100/1000Mbps RJ45 ports
– Provides network monitoring, traffic prioritization and VLAN features
– Green technology reduces power consumption
– Simple network set-up on top of plug-and-play connectivity
– Web-based user interface and management utility simplify configuration
Specifications
HARDWARE FEATURES
– Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
– Interface:
* 16 10/100/1000Mbps RJ45 Ports
* AUTO Negotiation/AUTO MDI/MDIX
– Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100Ohm STP (maximum 100m)
– Fan Quantity: Fanless
– Physical Security Lock: No

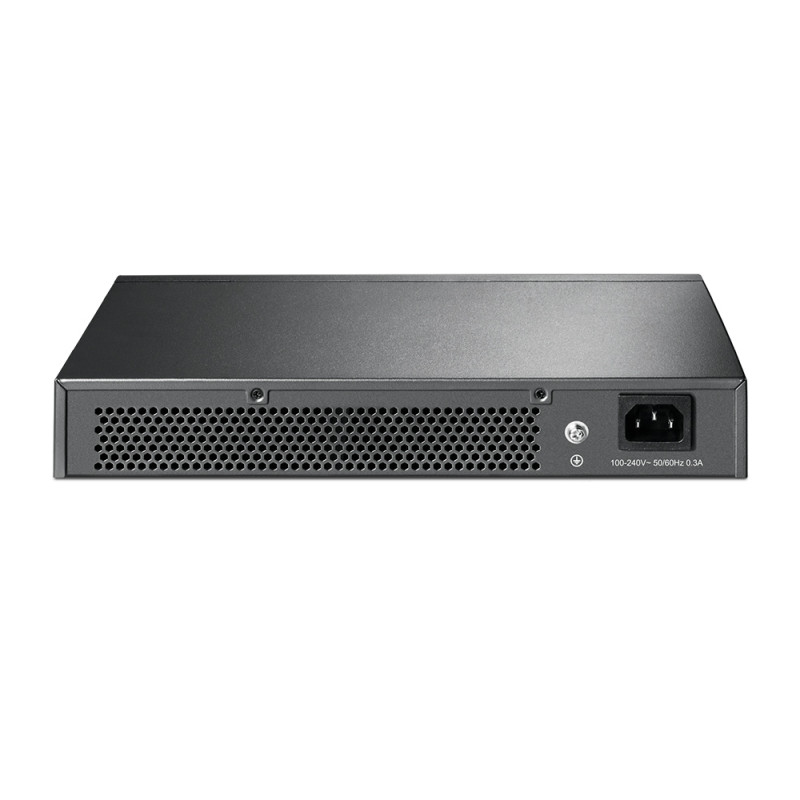

– Power Supply: 100-240VAC, 50/60Hz
– Dimensions (W×D×H): (294×180×44 mm
– Mounting: Rack Mountable
– Max Power Consumption: 10.22W (220V/50Hz)
– Max Heat Dissipation: 34.52 BTU/h
PERFORMANCE
– Switching Capacity: 32Gbps
– Packet Forwarding Rate: 23.8Mpps
– MAC Address Table: 8K
– Packet Buffer Memory: 4.1Mbit
– Jumbo Frame: 10KB
SOFTWARE FEATURES
– Quality of Service:
* Support Port-based/802.1p/DSCP priority
* Support 4 priority queues
* Rate Limit
* Storm Control
– L2 Features:
* IGMP Snooping V1/V2/V3
* Static Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
– VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
– Transmission Method: Store-And-Forward
OTHERS
– Certification: FCC, CE, RoHS
– Package Contents: TL-SG1016DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
– System Requirements: Microsoft Windows for running Utility
– Environment:
* Operating Temperature: 0C – 40C (32F – 104F)
* Storage Temperature: -40C – 70C (-40F – 158F)
* Operating Humidity: 10% – 90% non-condensing
* Storage Humidity: 5% – 90% non-condensing
