All-in-one file management and sharing hub
– The DS223j is an efficient one-stop solution for all your data storage and sharing needs. With two bays of storage and Synology DiskStation Manager (DSM) on board, the DS223j allows you to create a private cloud to protect your files,
share your data across several devices, store security footage with intelligent video surveillance tools, and more.
Access Your Files Anytime, Anywhere
– Organize data scattered across devices. Your Synology NAS can serve as a go-to platform to securely and conveniently store any type of data with comprehensive and intuitive access and management tools.
– Enable QuickConnect to access your NAS securely from anywhere without configuring complex port forwarding rules
– Browse and manage your files and media from any browser with Synology Drive, or access data through your default file browser using common network protocols
– Keep your photos and videos organized using Synology Photos’ smart sorting functions
– Deploy your Synology NAS as edge storage and fit it easily into existing infrastructure thanks to Windows AD and LDAP integration
Collaboration and Synchronization Platform
– Easily share documents with colleagues and boost productivity while working in a team or with your clients.
– Build a private data cloud for easy file management and sharing across all platforms, and keep data in sync between two Synology systems with Synology Drive
– Synchronize data to and from popular cloud storage platforms with Synology Cloud Sync
– Share media with colleagues or collaborators through the privacy-focused sharing options in Synology Photos
Features
Centralized Data Storage
– Consolidate up to 36 TB of data,1 and enjoy 100% data ownership and multi-platform access from anywhere.
Next-Generation File System
– Leverage file self-healing, lightning-fast data snapshots, and rapid data cloning.
Secure Sharing and Syncing
– Safely access and share files and media from anywhere, and keep clients, colleagues and collaborators on the same page
Simple Data Protection
– Back up your media library or document repository to a variety of destinations
Versatile Camera Surveillance
– Protect your premises with flexible monitoring tools
Specifications
Hardware
– CPU: Realtek RTD1619B
– Memory: 1 GB DDR4
– Compatible drive types: 2 x 3.5″ or 2.5″ SATA HDD/SSD (drives not included.)
– Hot swappable drives: No

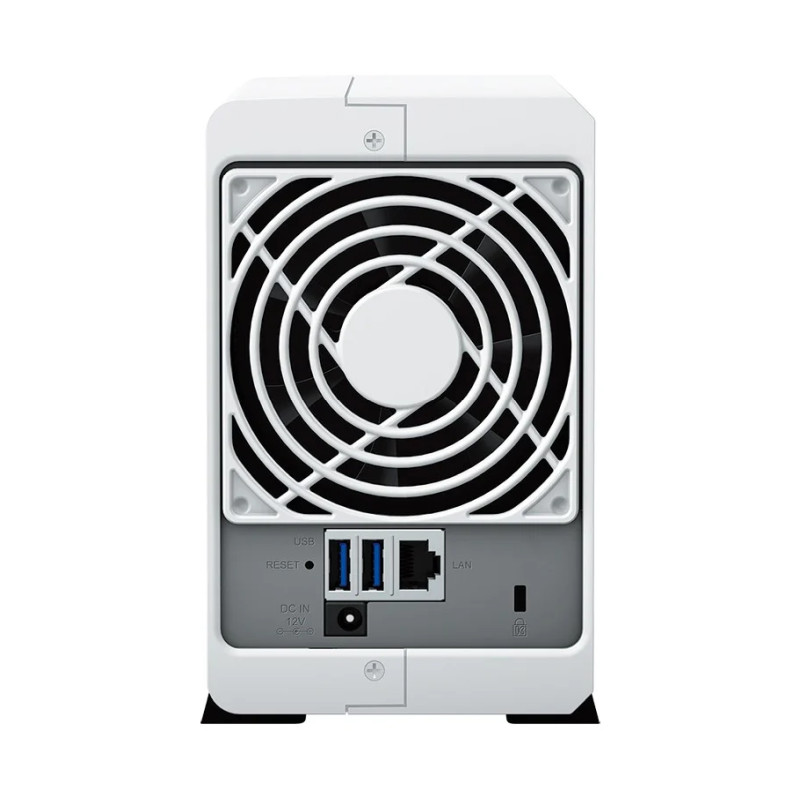

– External ports: 2 x USB 3.2 Gen 1 ports
– Form factor: Desktop
– Size (HxWxD): 165 x 100 x 225.5 mm
– Weight: 0.88 kg
– LAN ports: 1 x 1GbE RJ-45
– Wake on LAN/WAN: Yes
– Scheduled power on/off: Yes
– System fans: 1 x (92 x 92 x 25 mm)
– AC input power voltage: 100 V to 240 V AC
– Power frequency: 50/60 Hz, single phase
Operating environment:
– Temperature: 0°C to 40°C (32°F to 104°F)
– Relative humidity: 8% to 80% RH
Storage environment:
– Temperature: -20°C to 60°C (-5°F to 140°F)
– Relative humidity: 5% to 95% RH
– Maximum operating altitude: 5,000 m (16,400 ft
General DSM Specifications
– Networking protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP)
File systems
– Internal: Btrfs2, ext4
– External: Btrfs2, ext4, ext3, FAT32, NTFS, HFS+, exFAT
– Supported RAID types: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1
Storage management
– Max. single volume size: 108 TB
– Max. number of system snapshots: 4,0967
– Max. number of internal volumes: 64
File sharing capabilities
– Max. number of local user accounts: 1,024
– Max. number of local groups: 256
– Max. number of shared folders: 256
– Max. number of concurrent SMB/NFS/AFP/FTP connections: 100
– Privileges: Windows Access Control List (ACL) and application privileges
– Directory services: Connects with Windows AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials
– Security: Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let’s Encrypt support, and HTTPS (customizable cipher suite)
– Supported browsers: Google Chrome, Firefox, Microsoft Edge, Safari 14 and later, and Safari (iOS 14.0 and later) on iPad, Chrome (Android 11.0 and later) on tablets
– Interface languages: English, Deutsch, Français, Italiano, Espanol, Dansk, Norsk, Svenska, Nederlands, ???????, Polski, Magyar, Portugues do Brasil, Portugues Europeu, Türkçe, Český, ???????, ???, ???, ????, ????
