Značajke
– Dual Energy-Saving technology
* Link down power saving
* Intelligent scales power based on cable length
– Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3ab, 1000Base-T
– IEEE 802.3x, full-duplex flow control compliant; back-pressure, half-duplex flow control
– 8-Port 10/100/1000Mbps Gigabit Ethernet ports
– Per port auto-MDI, MDI-X detection
– 8K MAC address table auto-ageing
– 9K Jumbo packet size support
– Features Store-and-Forward mode with wire-speed filtering and forwarding rates
– Non-blocking, Store and Forward switching architecture
– Automatic source address learning and aging
– Power Saving ability for Green networking
– One power on/off button for energy saving
– Compact size, wall-mountable design
– Metal case, good for heat sinking
– Easy installation, ideal solution for fit in space-limited locations
Specifikacija
HARDWARE
– Hardware Version: 5

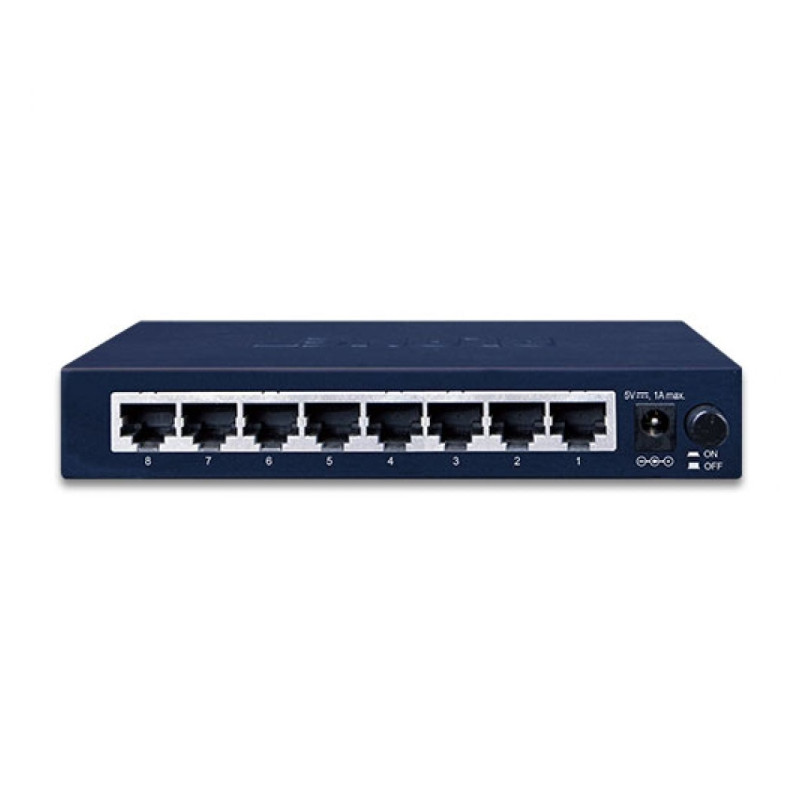

– Ports: 8 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
– Enclosure: Metal
– Power on/off button: EuP power switch
– Dimensions (W×D×H): 155×86×26 mm
– Weight: 370 g
– Power Requirements: External power adapter 5V DC, 1000mA
– Power Consumption / Dissipation (Full operation): ull Load: 5.4 watts / 16.74 BTU
SWITCH
– Switch Processing Scheme: Store-and-Forward
– Address Table: 8K entries
– Share data Buffer: 1Mbits
– Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
– Switch fabric: 16Gbps
– Throughput (packet per second): 11.9Mpps
– Jumbo packet size: 9K
STANDARD CONFORMANCE
– Standards Compliance:
* IEEE 802.3 (Ethernet)
* IEEE 802.3u (Fast Ethernet)
* IEEE 802.3ab (Gigabit Ethernet)
* IEEE 802.3x (Full Duplex Flow Control)
* IEEE 802.3az Energy Efficient Ethernet (EEE)
ENVIRONMENT
– Temperature:
* Operating: 0 – 50 degrees C
* Storage: -40 – 70 degrees C
– Humidity:
* Operating: 5-90%
* Storage: 5-90% (Non-condensing)
