Features:
Hardware:

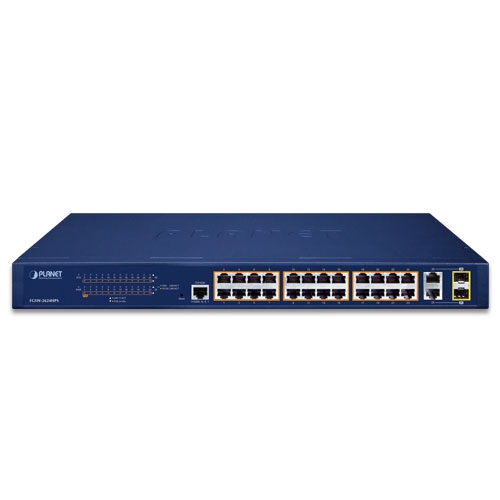

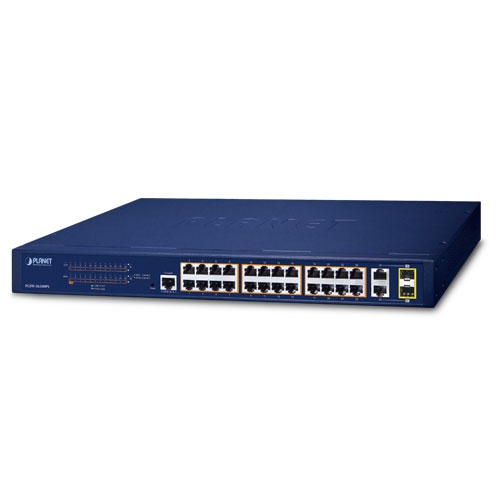

– Copper Ports: 24 x 10/100BASE-TX RJ45 Auto-MDI/MDI-X ports
– PoE Injector Port: 24 802.3af/802.3at PoE+ injector ports
– Gigabit Copper Ports: 2x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
– SFP/mini-GBIC Slots: 2x 1000BASE-X SFP interfaces, shared with Port-25 to Port-26
– Console: 1x RS-232-to-RJ45 serial port (115200, 8, N, 1)
– Thermal Fan: 2

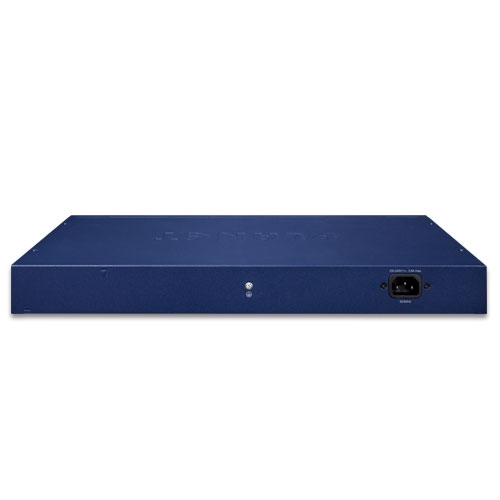

– Power Requirements: 100~240V AC, 50/60Hz, 3.6A (max.)
– Power Consumption/Dissipation. Max. 281 watts/959 BTU
– Dimensions (W x D x H): 441.2×207.5×44 mm (1U height)
Switching:
– Switch Architecture: Store-and-Forward
– Switch Architecture: Store-and-Forward
– Switch Fabric: 8.8Gbps/non-blocking
– Switch Throughput@64bytes: 6.55Mpps @64bytes
– MAC Address Table: 16K entries
– Shared Data Buffer: 4Mbits
– Flow Control: IEEE 802.3x pause frame for full duplex; Back pressure for half duplex
– Jumbo Frame: 16K bytes
PoE:
– PoE Standard: IEEE 802.3af Power over Ethernet/PSE; IEEE 802.3at Power over Ethernet Plus/PSE
– PoE Power Supply Type: Mid-span
– Power Pin Assignment: 4/5(+), 7/8 (-)
– PoE Power Output : Per Port 53V DC, 300mA. Max. 15.4 watts (IEEE 802.3af); Per Port 53V DC, 600mA. Max. 30 watts (IEEE 802.3at)
– PoE Power Budget : 240 watts
– Number of PDs, 7 watts: 24
– Number of PDs, 15.4 watts: 15
– Number of PDs, 30 watts: 8
Environment:
– Operating temperature: 0 ~ 50 degrees C
