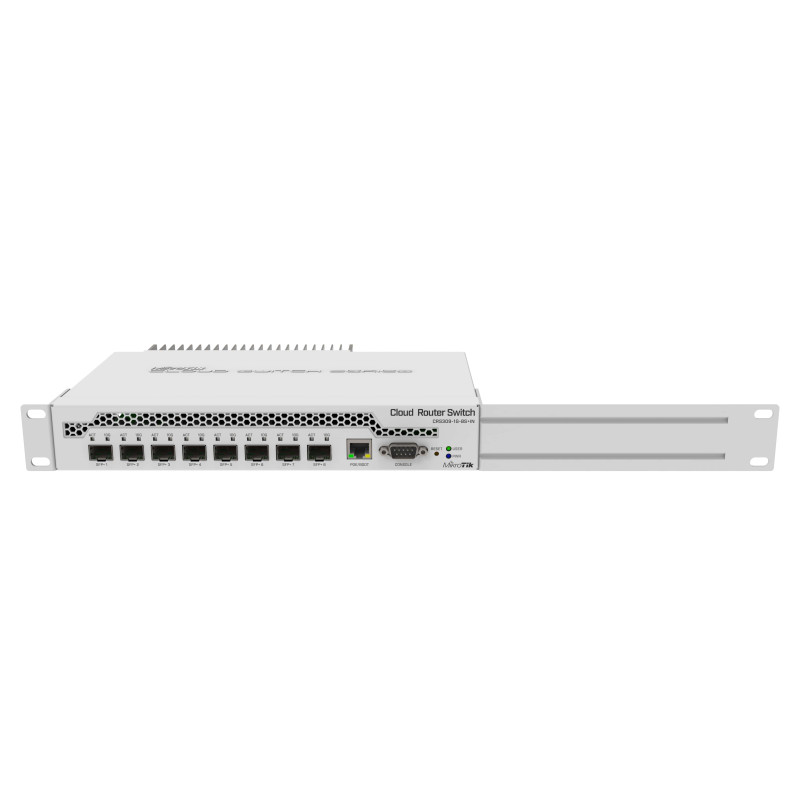

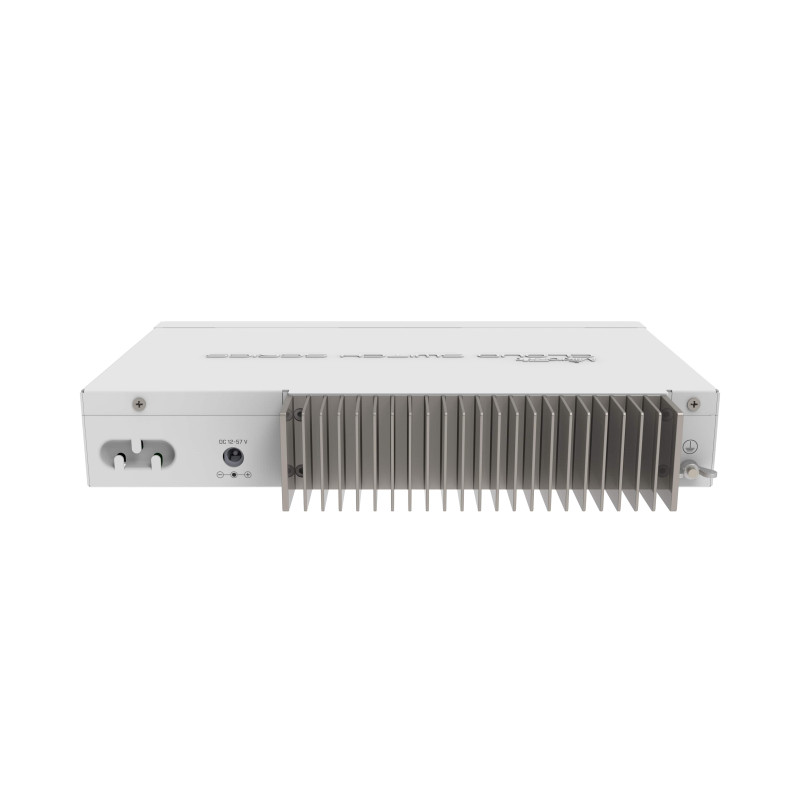

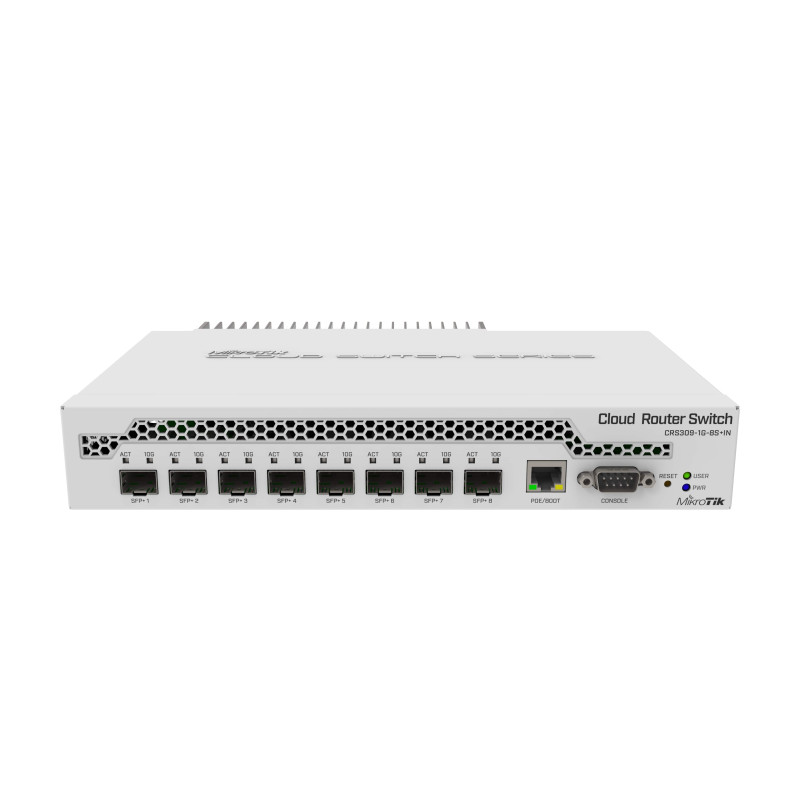

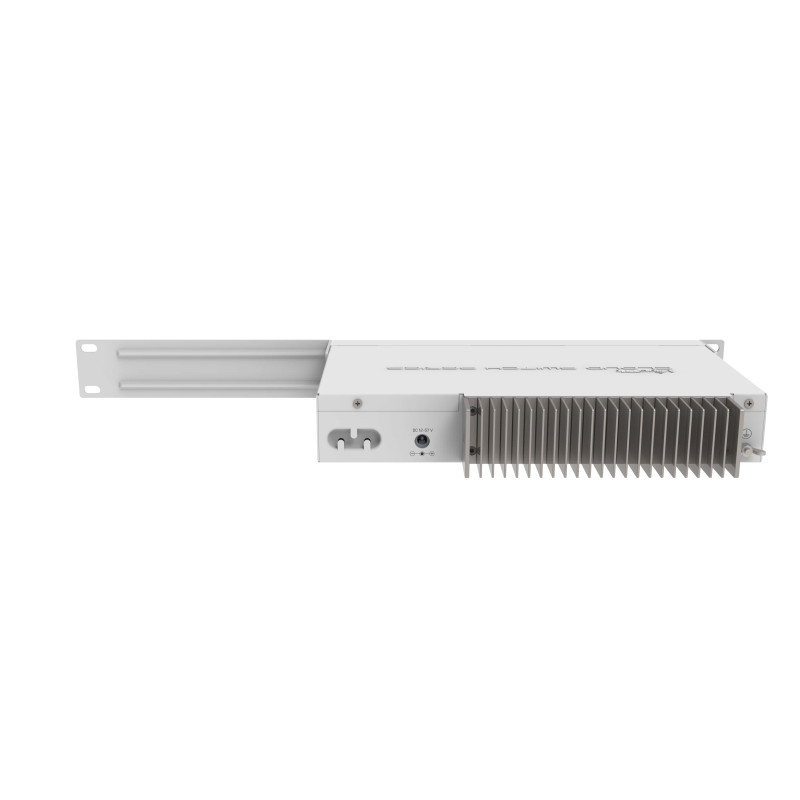

– The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps
– The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS)
Specifications
– Architecture: ARM 32bit
– CPU: 98DX8208
– CPU core count: 2
– CPU nominal frequency: 800 MHz
– Dimensions: 272×191×44 mm
– RouterOS license: 5
– Operating System: RouterOS / SwitchOS
– Size of RAM: 512 MB
– Storage size: 16 MB
– Storage type: FLASH
– MTBF: Approximately 200.000 hours at 25C
– Tested ambient temperature: -40°C to 70°C
POWERING
– Number of DC inputs: 2 (DC jack, PoE-IN)
– DC jack input Voltage: 12-57 V
– Max power consumption: 23 W
– Max power consumption without attachments: 17 W
– FAN count: Passive
– PoE in: 802.3af/at
– PoE in input Voltage: 18-57 V
ETHERNET
– 10/100/1000 Ethernet ports: 1
FIBER
– SFP+ ports: 8
PERIPHERALS
– Serial console port: RS232
OTHER
– CPU temperature monitor: Yes
CERTIFICATION & APPROVALS
– Certification: CE, EAC, ROHS
– IP: IP20
INCLUDED PARTS

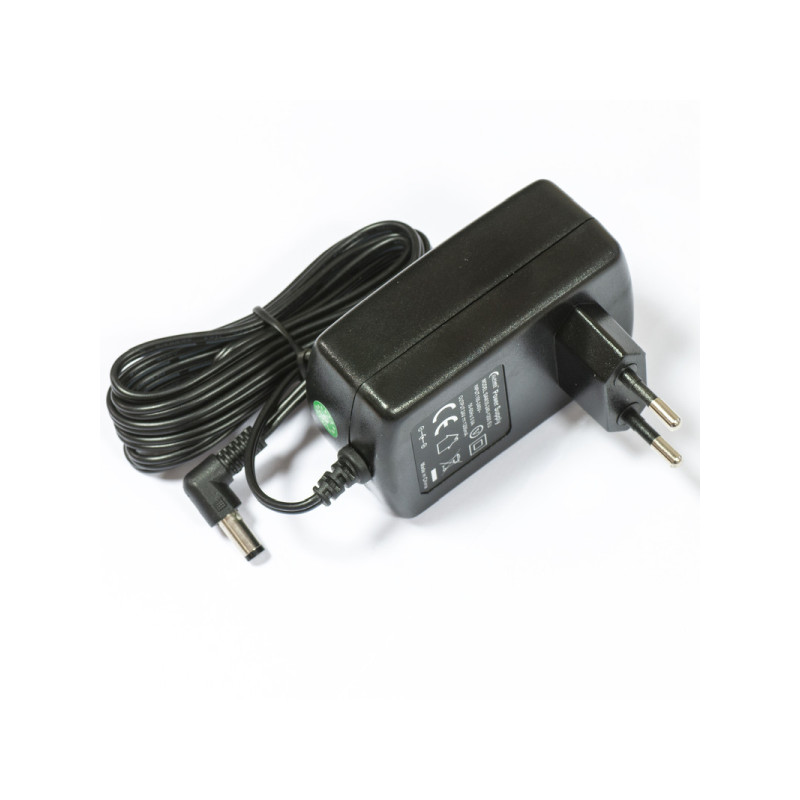

– 24V 1.2A power adapter
– Ears
– K-37 fastening set
