– Need a nice-looking access point that wont get in your way?
– Or perhaps youre managing the network in a crowded place and dont want everyone to have physical access to the device?
– Either way – ceiling is the answer!
– The device itself is pretty sleek – the low profile attracts less attention than a smoke detector
– Your clients, guests, or colleagues wont even notice it
– But they will definitely notice the blazing fast wireless connection all across the premises
– The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector
– These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
– The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you dont have to worry about the placement of the device so much
– Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

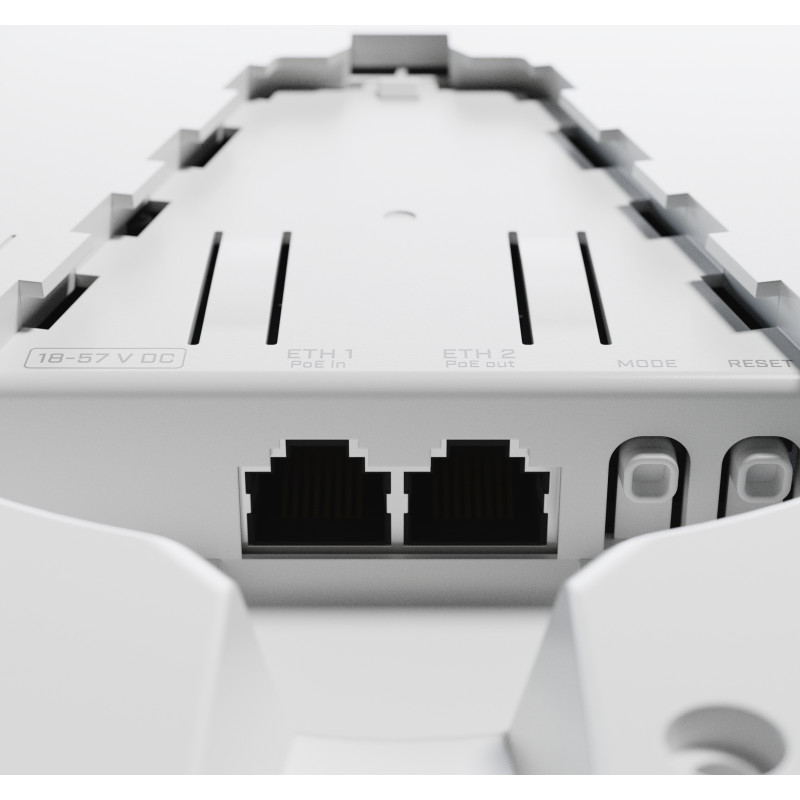

– Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port
Specifications
– Architecture: ARM 32bit
– CPU: IPQ-4018
– CPU core count: 4
– CPU nominal frequency: 716 MHz
– RouterOS license: 4
– Operating System: RouterOS
– Size of RAM: 128 MB
– Storage size: 16 MB
– Storage type: FLASH
– MTBF: Approximately 100000 hours at 25C
– Tested ambient temperature: -40C to 70C
– IPsec hardware acceleration: Yes
WIRELESS CAPABILITIES
– Wireless 2.4 GHz Max data rate: 300 Mbit/s
– Wireless 2.4 GHz number of chains: 2
– Wireless 2.4 GHz standards: 802.11b/g/n
– Antenna gain dBi for 2.4 GHz: 6
– Wireless 2.4 GHz chip model: IPQ-4018
– Wireless 2.4 GHz generation: Wi-Fi 4
– Wireless 5 GHz Max data rate: 867 Mbit/s
– Wireless 5 GHz number of chains: 2
– Wireless 5 GHz standards: 802.11a/n/ac
– Antenna gain dBi for 5 GHz: 5.5
– Wireless 5 GHz chip model: IPQ-4018
– Wireless 5 GHz generation: Wi-Fi 5
– AC speed: AC1200
ETHERNET
– 10/100/1000 Ethernet ports: 2
– Number of 1G Ethernet ports with PoE-out: 1
POWERING
– Number of DC inputs: 1 (PoE-IN)
– Max power consumption: 24 W
– Max power consumption without attachments: 11 W
– FAN count: Passive
– PoE in: 802.3af/at
– PoE in input Voltage: 18-57 V
PoE-OUT
– PoE-out ports: Ether2
– PoE out: Passive PoE up to 57V
– Max out per port output (input 18-30 V): 500 mA
– Max out per port output (input 30-57 V): 330 mA
– Max total out (A): 500 mA
CERTIFICATION & APPROVALS
– Certification: CE, FCC, IC, EAC, ROHS
OTHER
– Mode button: Yes
INCLUDED PARTS
– 24V 1.2A power adapter
– Ceiling mount
– Gigabit PoE injector
– K-81 fastening set
