– FSP Eufo Series rating is from 1.1KVA to 3.0KVA and implemented protect functions for power failures, surge overvoltage and brownout.
– Rack & Tower with easy-shift LCD design is flexible for installation. Moreover, this series built/in Efficiency corrective Optimizer (ECO) that the efficiency is up to 98% for more energy saving.
– The application is suitable for networking, telecom, server and mission/critical applications.
Features
– Pure sine wave
– Output power factor 0.9
– Excellent microprocessor control for high reliability
– User-friendly and easy-shift LCD design
– Boost and buck AVR for voltage stabilization

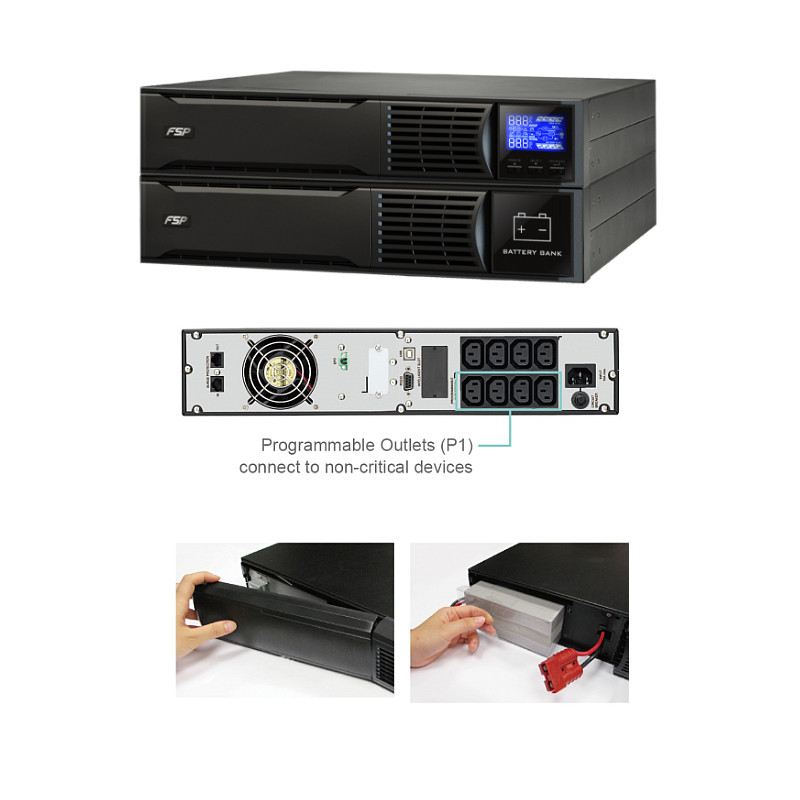

– Programmable power management outlets
– Emergency power off function (EPO)
– Hot-swappable battery design
– ECO mode for energy saving

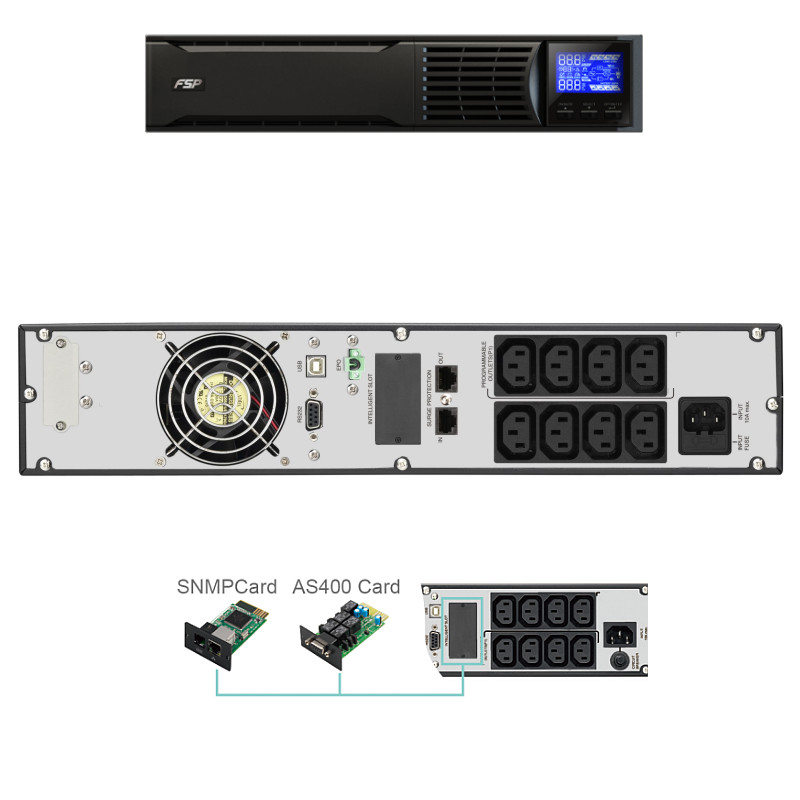

– Multiple communication available ( Rack/Tower 2 in 1 design with rotatable LCD )
Specifications
– Topology: Single phase + ground
– Typical Recharge Time (up to 90% capacity): 4 hours
– Nominal Voltage: 208/220/230/240Vac
– Capacity: 2000VA/1800W
– Power Factor: ? 0.99 @ Nominal Voltage (100% load)
– Input Frequency: 50Hz / 60Hz
– Input Voltage Range: 162-290 Vac
– Output Voltage: 208/220/230/240Vac
– Output Frequency Range:
* 50Hz / 60Hz ± 1Hz (Synchronized Range)
* 50 Hz or 60Hz ± 2% (Batt. Mode)
– Wave Form: Sine wave
– Battery: 12V/9Ah, 4pcs inside
– Battery mode: 91%
– Charging Current (max.): 1.5 A
– Charging Voltage(Vdc±1%): 54.8
– Intelligent Slot: SNMP, AS400, RS485-Modbus
– Port for External Battery Pack: Yes
– Network Ports: USB, RS-232, EPO
– Operating Environment / Humidity: 0-90 % RH @ 0- 40°C
– Noise Level: <45 dBA
– Dimensions: 438x88x510
– Weight: 21 500g
– OS: Supports Windows 2000/2003/XP/Vista/2008/7/8/10, Linux, and MAC
Remark:
– autonomy 3.2 min at 100% load
