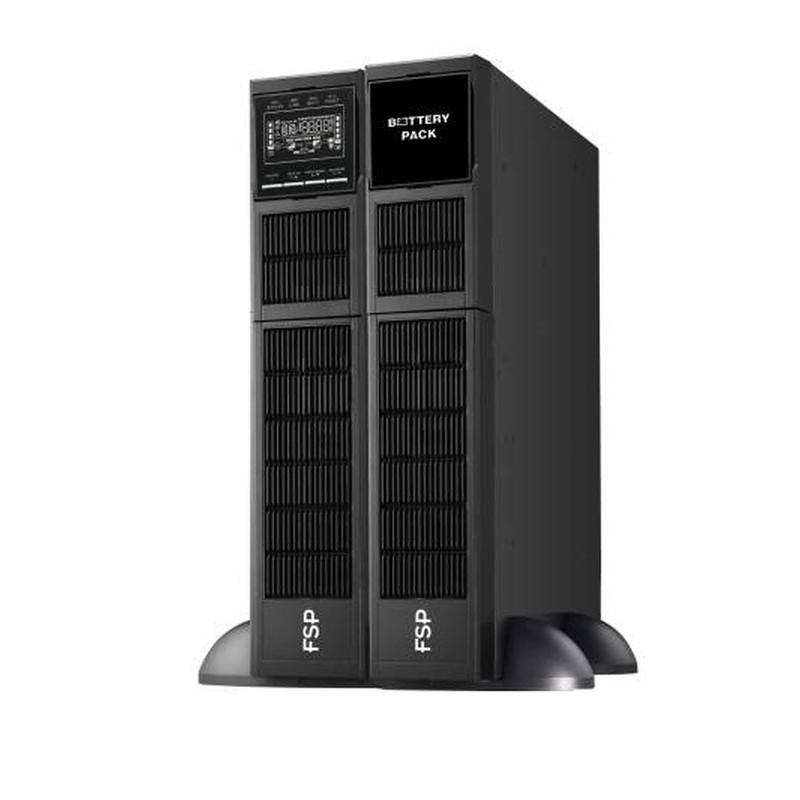

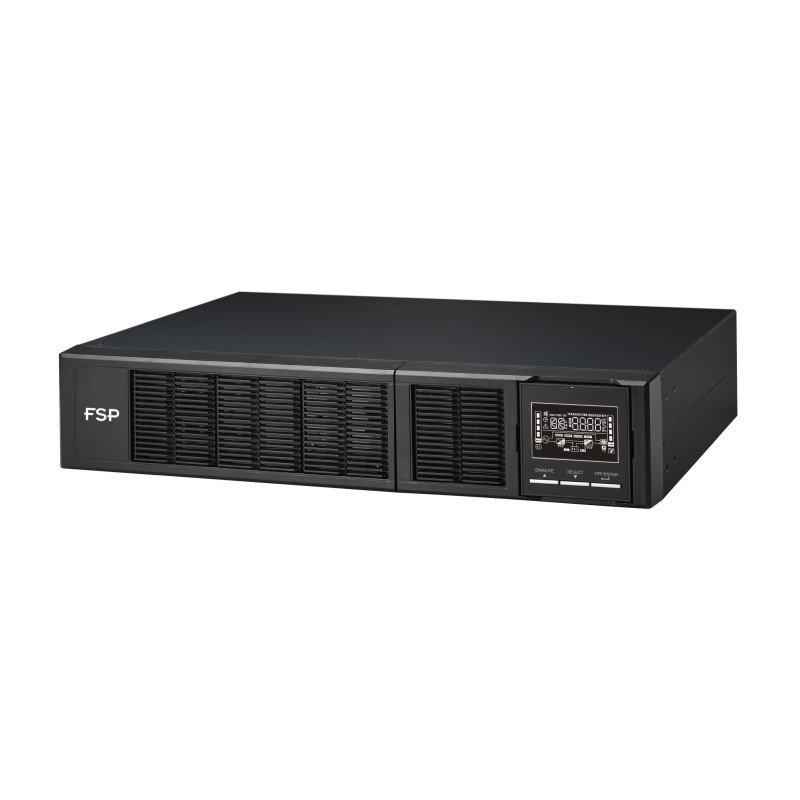

– Clippers series is a premium featured online double conversion UPS with Rack/Tower design and high efficiency to reduce customer‘s total cost of ownership.
– The internal hot-swappable battery increases system reliability and reduces MTTR; the parallel function is designed for future equipment expansion.
– Its special firmware design can adapt to various applications like laser printers and ultrasound devices and supports long backup time with battery monitoring.
Features
– True double conversion
– Output power factor 1
– Rack/Tower 2 in 1 design with rotatable LCD
– Super Charger up to 8A
– Output voltage regulation < 1%
– Higher output crest ratio 3:1
– 50Hz/60Hz frequency converter mode

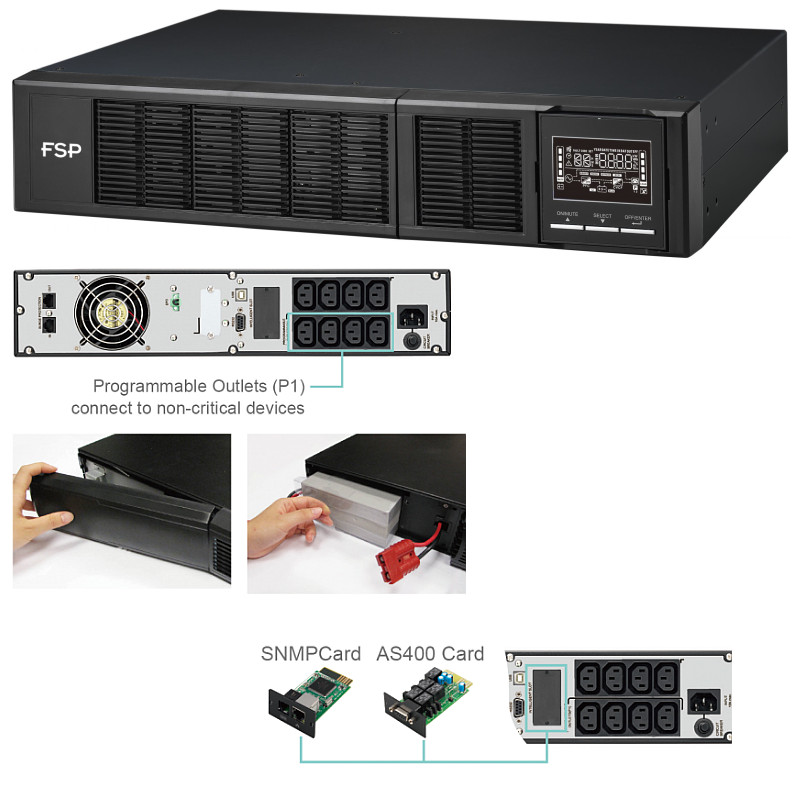

– Programmable power management outlets
– Emergency power off function (EPO)
– Hot-swappable battery design
– ECO mode for energy saving
– Support for laser printers and ultrasound systems
– Full-time over-voltage cut-off and surge protection
– High power factor charger with low ripple current
– Low input THDi to reduce power system pollution
– Adjustable charging current via LCD panel
– Smart battery charger design to optimize battery performance
– Genset compatible
Specifications
– Topology: On-line Single Phase
– Typical Recharge Time (up to 90% capacity): 3 hours
– Capacity: 3000 VA / 3000W
– Power Factor: ? 0.99 @ Nominal Voltage (100% load)
– Input Frequency: 40Hz ~ 70Hz
– Input Voltage Range: 160-300 VAC ±5%
– Output Voltage: ± 1% (Batt. Mode)
– Output Frequency Range: 46 Hz ~ 54 Hz or 56Hz ~ 64 Hz (Synchronized Range)
50 Hz or 60 Hz ±0.1 Hz (Batt. Mode)
– Wave Form: Pure Sinewave
– Battery: 12V/9Ah, 6 pcs inside
– Battery Type & Number: 12V / 9Ah x 6
– Intelligent Slot: SNMP, AS400, RS485-Modbus
– Network Ports: USB, RS-232, EPO
– Operating Environment / Humidity: 20-90 % RH @ 0- 40°C (non-condensing)
– Noise Level: Less than 50dB @ 1 Meter
– Dimensions: 438 x 88 x 630
– Weight: 27 500g
– OS: Supports Windows 98/XP/2000/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016, Linux, and MAC
Remark:
– autonomy 3.2 min at 100% load
